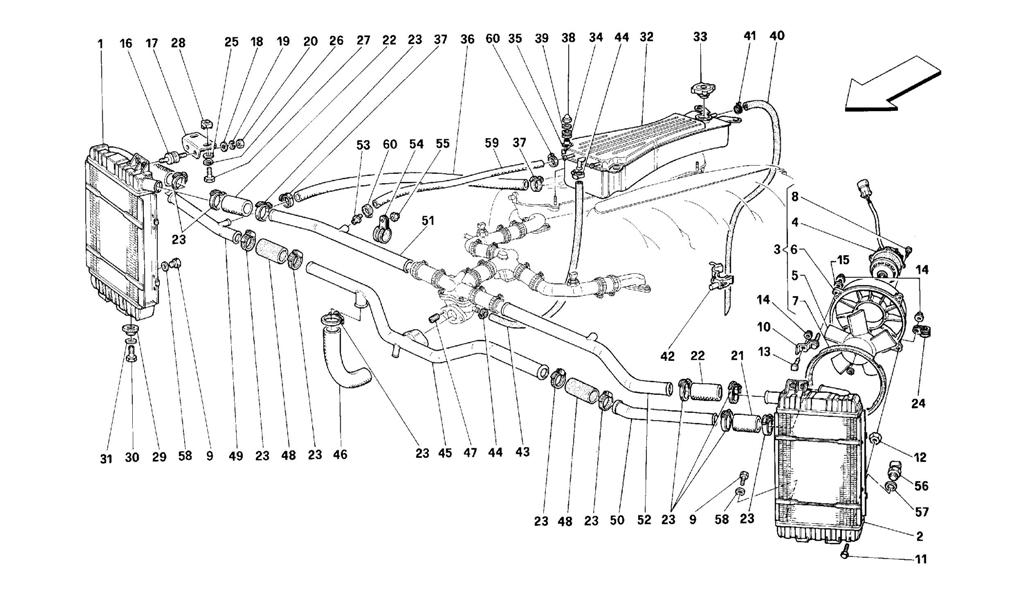

COOLING SYSTEM

Go to Split View

COOLING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 150212 *Qty: 1 R.H. radiator $2,033.13
Location: 2 Prev | Next Part: 150213 *Qty: 1 L.H. radiator $2,898.94
Location: 3 Prev | Next Part: 147710 *Qty: 2 Electro fan set complete $384.60
Location: 4 Prev | Next Part: 148620 *Qty: 2 Electric fan motor $164.54
Location: 5 Prev | Next Part: 137299 *Qty: 2 Fan $29.40
Location: 6 Prev | Next Part: 140618 *Qty: 2 Conveyor $186.43
Location: 7 Prev | Next Part: 126883 *Qty: 2 Gasket $27.67
Location: 8 Prev | Next Part: 123298 *Qty: 8 Screw $0.90
Location: 9 Prev | Next Part: 140149 *Qty: 2 Plug $13.78
Location: 10 Prev | Next Part: 147708 *Qty: 4 Bracket $2.21
Location: 11 Prev | Next Part: 10902724 *Qty: 4 Screw $0.90
Location: 12 Prev | Next Part: 148059 *Qty: 4 Nut $11.02
Location: 13 Prev | Next Part: 11944111 *Qty: 4 Screw $0.90
Location: 14 Prev | Next Part: 15896214 *Qty: 12 Nut $0.90
Location: 15 Prev | Next Part: 12646601 *Qty: 8 Washer $0.90
Location: 16 Prev | Next Part: 102947 *Qty: 4 Buffer $18.79
Location: 17 Prev | Next Part: 148777 *Qty: 2 Bracket $10.53
Location: 18 Prev | Next Part: 12643724 *Qty: 4 Washer $0.90
Location: 19 Prev | Next Part: 127494 *Qty: 4 Washer $0.90
Location: 20 Prev | Next Part: 15896214 *Qty: 4 Nut $0.90
Location: 21 Prev | Next Part: 149045 *Qty: 2 Rubber pipe $145.30
Location: 22 Prev | Next Part: 148649 *Qty: 2 Rubber pipe $17.98
Location: 23 Prev | Next Part: 13000690 *Qty: 13 Clamp Call
Location: 24 Prev | Next Part: 10441990 *Qty: 2 Bracket $0.94
Location: 25 Prev | Next Part: 12643724 *Qty: 8 Washer $0.90
Location: 26 Prev | Next Part: 127494 *Qty: 4 Washer $0.90
Location: 27 Prev | Next Part: 10902424 *Qty: 4 Screw $0.90
Location: 28 Prev | Next Part: 60758600 *Qty: 4 Crate nut $0.90
Location: 29 Prev | Next Part: 137624 *Qty: 4 Vibration-damping buffer Call
Location: 30 Prev | Next Part: 152315 *Qty: 4 Screw $6.63
Location: 31 Prev | Next Part: 147882 *Qty: 4 Washer $7.47
Location: 32 Prev | Next Part: 155027 *Qty: 1 Tank for radiator $1,136.33
Location: 33 Prev | Next Part: 137644 *Qty: 1 Plug $25.68
Location: 34 Prev | Next Part: 103549 *Qty: 4 Cable grommet $1.57
Location: 35 Prev | Next Part: 149707 *Qty: 4 Spacer $1.41
Location: 36 Prev | Next Part: 151348 *Qty: 1 Pipe from tank to return pipe $166.40
Location: 37 Prev | Next Part: 13000490 *Qty: 2 Clamp Call
Location: 38 Prev | Next Part: 101239 *Qty: 4 Nut $1.78
Location: 39 Prev | Next Part: 12643724 *Qty: 4 Washer $0.90
Location: 40 Prev | Next Part: 162347 *Qty: 1 Pipe $9.68
Location: 41 Prev | Next Part: 13423379 *Qty: 1 Elastic collar Call
Location: 42 Prev | Next Part: 157385 *Qty: 2 Spring $0.90
Location: 43 Prev | Next Part: 122219 *Qty: 1 Pipe from tank to valve body $25.93
Location: 44 Prev | Next Part: 13000190 *Qty: 2 Clamp $0.90
Location: 45 Prev | Next Part: 148647 *Qty: 1 Pipe on thermostat body Call
Location: 46 Prev | Next Part: 148648 *Qty: 1 Rubber pipe $131.91
Location: 47 Prev | Next Part: 13525470 *Qty: 2 Insert $0.90
Location: 48 Prev | Next Part: 148649 *Qty: 2 Rubber pipe $17.98
Location: 49 Prev | Next Part: 148780 *Qty: 1 Return pipe from R.H. radiator Call
Location: 50 Prev | Next Part: 148781 *Qty: 1 Return pipe from L.H. radiator Call
Location: 51 Prev | Next Part: 148778 *Qty: 1 Pipe from thermostat body to R.H. radiator Call
Location: 52 Prev | Next Part: 148779 *Qty: 1 Pipe from thermostat body to L.H. radiator Call
Location: 53 Prev | Next Part: 155187 *Qty: 2 Breather union $5.78
Location: 54 Prev | Next Part: 106195 *Qty: 4 Bracket $45.54
Location: 55 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 56 Prev | Next Part: 158655 *Qty: 1 Thermal contact $29.90
Location: 57 Prev | Next Part: 101508 *Qty: 1 Gasket $1.46
Location: 58 Prev | Next Part: 140150 *Qty: 2 Gasket $5.72
Location: 59 Prev | Next Part: 126293 *Qty: 2 Pipe from tank to breather union $112.25
Location: 60 Prev | Next Part: 13000190 *Qty: 2 Clamp $0.90

* Quantity shown indicates the number of pieces used in the diagram.
