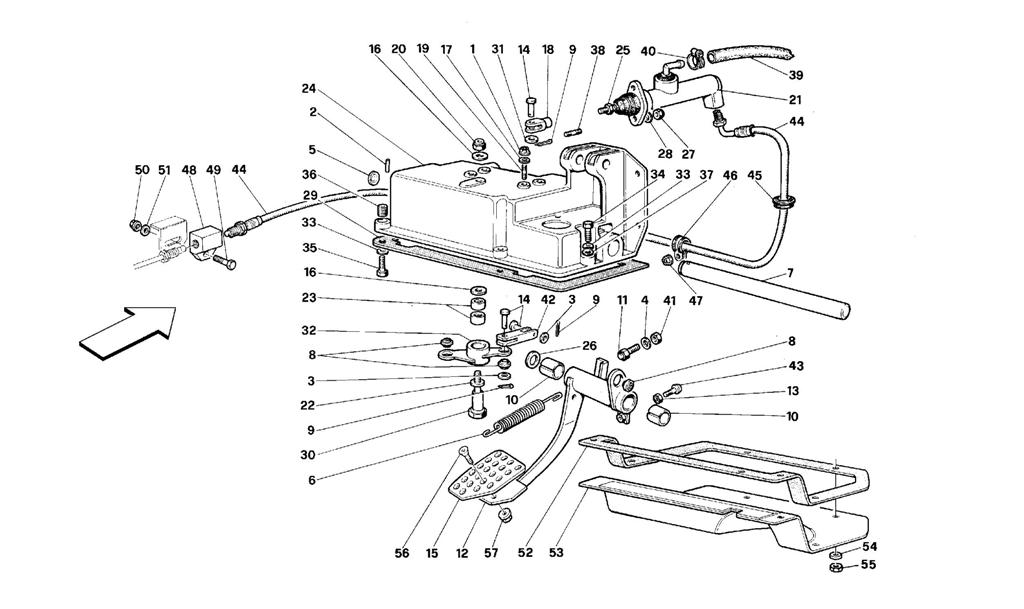

CLUTCH RELEASE CONTROL -VALID FOR RHD-

Go to Split View

CLUTCH RELEASE CONTROL -VALID FOR RHD-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 15896214 *Qty: 4 Nut $0.90
Location: 2 Prev | Next Part: 13942870 *Qty: 1 Pin $0.90
Location: 3 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 4 Prev | Next Part: 12601374 *Qty: 1 Washer $0.90
Location: 5 Prev | Next Part: 10158801 *Qty: 1 Plug $1.79
Location: 6 Prev | Next Part: 104895 *Qty: 1 Pedal return spring $9.14
Location: 7 Prev | Next Part: 113831 *Qty: 1 Pin on the pedal support $159.80
Location: 8 Prev | Next Part: 109407 *Qty: 3 Ball joint $27.56
Location: 9 Prev | Next Part: 10734201 *Qty: 3 Split pin Call
Location: 10 Prev | Next Part: 103163 *Qty: 2 Bush $3.80
Location: 11 Prev | Next Part: 114825 *Qty: 1 Stop push rod $52.83
Location: 12 Prev | Next Part: 163853 *Qty: 1 Clutch pedal $811.81
Location: 13 Prev | Next Part: 16102314 *Qty: 1 Nut $0.90
Location: 14 Prev | Next Part: 10050814 *Qty: 3 Pin $3.29
Location: 15 Prev | Next Part: 162536 *Qty: 1 Pedal plate $44.87
Location: 16 Prev | Next Part: 113500 *Qty: 2 Washer $14.11
Location: 17 Prev | Next Part: 12643724 *Qty: 4 Washer $0.90
Location: 18 Prev | Next Part: 10007871 *Qty: 1 Fork $19.79
Location: 19 Prev | Next Part: 11500124 *Qty: 4 Stud $0.90
Location: 20 Prev | Next Part: 148020 *Qty: 1 Nut $5.54
Location: 21 Prev | Next Part: 175211 *Qty: 1 Master cylinder $343.68
Location: 22 Prev | Next Part: 112126 *Qty: 1 Washer $0.90
Location: 23 Prev | Next Part: 115430 *Qty: 2 Roller bearing $17.31
Location: 24 Prev | Next Part: 155181 *Qty: 1 Pedal suport $516.20
Location: 25 Prev | Next Part: 16102314 *Qty: 1 Nut $0.90
Location: 26 Prev | Next Part: 113833 *Qty: 1 Washer, 1,1 mm. thick $3.22
Location: 26 Prev | Next Part: 113834 *Qty: 1 Washer, 1,2 mm. thick $3.22
Location: 26 Prev | Next Part: 113835 *Qty: 1 Washer, 1,3 mm. thick $0.90
Location: 26 Prev | Next Part: 113836 *Qty: 1 Washer, 1,4 mm. thick $1.14
Location: 26 Prev | Next Part: 106083 *Qty: 1 Washer, 1,0 mm. thick $0.90
Location: 27 Prev | Next Part: 16104121 *Qty: 2 Nut Superseded
Location: 28 Prev | Next Part: 12601374 *Qty: 2 Washer $0.90
Location: 29 Prev | Next Part: 156663 *Qty: 1 Gasket $13.08
Location: 30 Prev | Next Part: 114830 *Qty: 1 Pin for relay lever $15.27
Location: 31 Prev | Next Part: 12642701 *Qty: 1 Washer $0.90
Location: 32 Prev | Next Part: 148821 *Qty: 1 Relay lever $148.76
Location: 33 Prev | Next Part: 127496 *Qty: 5 Washer $0.90
Location: 34 Prev | Next Part: 16043834 *Qty: 3 Screw $0.90
Location: 35 Prev | Next Part: 16043424 *Qty: 2 Screw $0.90
Location: 36 Prev | Next Part: 13525870 *Qty: 2 Threaded insert $3.43
Location: 37 Prev | Next Part: 10519624 *Qty: 3 Washer $0.90
Location: 38 Prev | Next Part: 13543524 *Qty: 2 Stud $0.95
Location: 39 Prev | Next Part: 151845 *Qty: 1 Pipe for clutch master cylinder $63.80
Location: 40 Prev | Next Part: 157934 *Qty: 2 Clamp Superseded
Location: 41 Prev | Next Part: 133989 *Qty: 1 Nut $0.90
Location: 42 Prev | Next Part: 112172 *Qty: 1 Double fixing fork $136.16
Location: 43 Prev | Next Part: 144011 *Qty: 1 Pin $5.52
Location: 44 Prev | Next Part: 149628 *Qty: 1 Clutch control hose $174.07
Location: 45 Prev | Next Part: 105369 *Qty: 1 Cable grommet $1.76
Location: 46 Prev | Next Part: 10441290 *Qty: 1 Bracket $0.90
Location: 47 Prev | Next Part: 15896214 *Qty: 1 Nut $0.90
Location: 48 Prev | Next Part: 148869 *Qty: 1 Union $54.20
Location: 49 Prev | Next Part: 10902724 *Qty: 1 Screw $0.90
Location: 50 Prev | Next Part: 15896214 *Qty: 1 Nut $0.90
Location: 51 Prev | Next Part: 12646601 *Qty: 1 Washer $0.90
Location: 52 Prev | Next Part: 156662 *Qty: 1 Gasket $27.35
Location: 53 Prev | Next Part: 123228 *Qty: 1 Cover $343.85
Location: 54 Prev | Next Part: 12643724 *Qty: 5 Washer $0.90
Location: 55 Prev | Next Part: 102948 *Qty: 5 Nut $0.90
Location: 56 Prev | Next Part: 14441324 *Qty: 2 Screw $0.90
Location: 57 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
