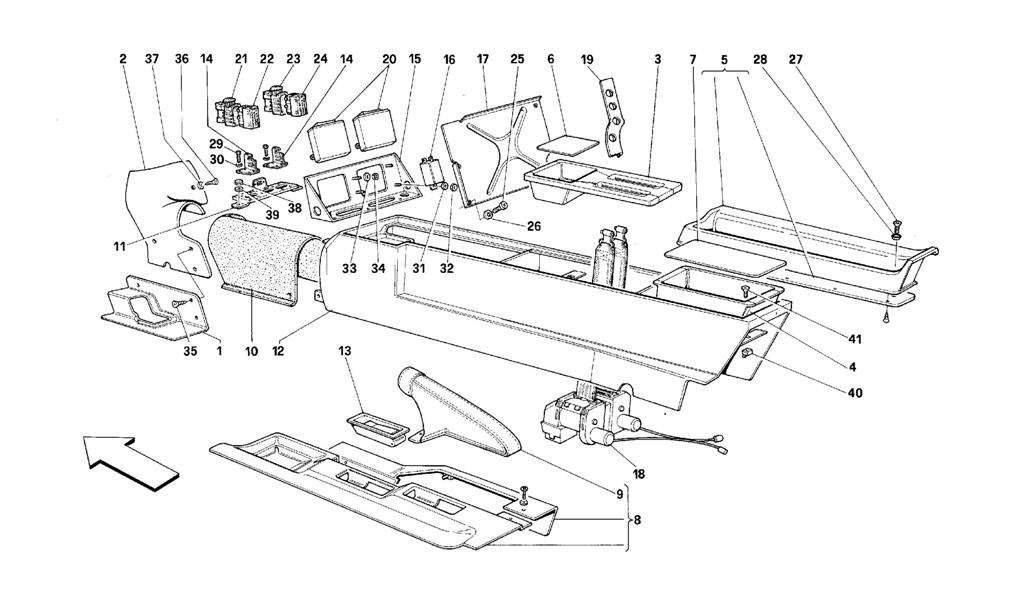

CENTRAL TUNNEL -VALID FOR USA

CENTRAL TUNNEL -VALID FOR USA

Location Part # Quantity* Description Price Add To Cart
1 63092400 1 Accelerator pedal cover $187.19
2 630923.. 1 Front part of tunnel Unavailable
3 63092800 1 Glove box with front plate Unavailable
4 63092900 1 Rear glove box Unavailable
5 645410.. 1 Glove box passenger side complete Unavailable
6 63623300 1 Ground for front box Unavailable
7 63622900 1 Ground for rear box $179.80
8 645401.. 1 Handbrake console complete Unavailable
9 634207.. 1 Handbrake lever cowling Unavailable
10 636959.. 1 Central part of tunnel cover Unavailable
11 149506 1 Plate $88.20
12 630926.. 1 Central console for tunnel Unavailable
13 63011800 2 Handle for opening hoods $308.21
14 148682 2 Connector bracket $4.64
15 149507 1 Control units support $72.53
16 137666 1 Passive belt acoustic signal $77.85
17 63100300 1 Foot rest plate for passenger $214.14
18 61552000 1 Retracting mechanism set compl. $2,129.69
19 63447800 1 Foot rest fix. bracket $47.10
20 61568900 2 Passive safety belts control unit Unavailable
21 146042 1 PM connector (black) $27.95
22 146043 1 PF connector (black) $16.16
23 146074 1 PM connector (white) $58.63
24 146073 1 PF connector (white) $10.25
25 13276470 4 Screw Unavailable
26 12644424 4 Washer $0.90
27 15692670 2 Screw -Valid for light leather- Unavailable
27 15692677 2 Screw -Valid for dark leather- Unavailable
28 62768300 2 Washer -Valid for light leather- Unavailable
28 13338047 2 Washer -Valid for dark leather- Unavailable
29 10444521 8 Screw Unavailable
30 10615274 8 Washer Unavailable
31 12639701 1 Washer Unavailable
32 102948 1 Nut Superseded
33 14496201 4 Washer Unavailable
34 62790300 4 Nut $0.90
35 20286209 2 Screw Unavailable
36 15909478 6 Screw Unavailable
37 13338047 6 Washer Unavailable
38 102741 2 Nut $0.90
39 12643724 2 Washer Superseded
40 60758600 3 Nut Unavailable
41 14441582 3 Screw $3.82

* Quantity shown indicates the number of pieces used in the diagram.
