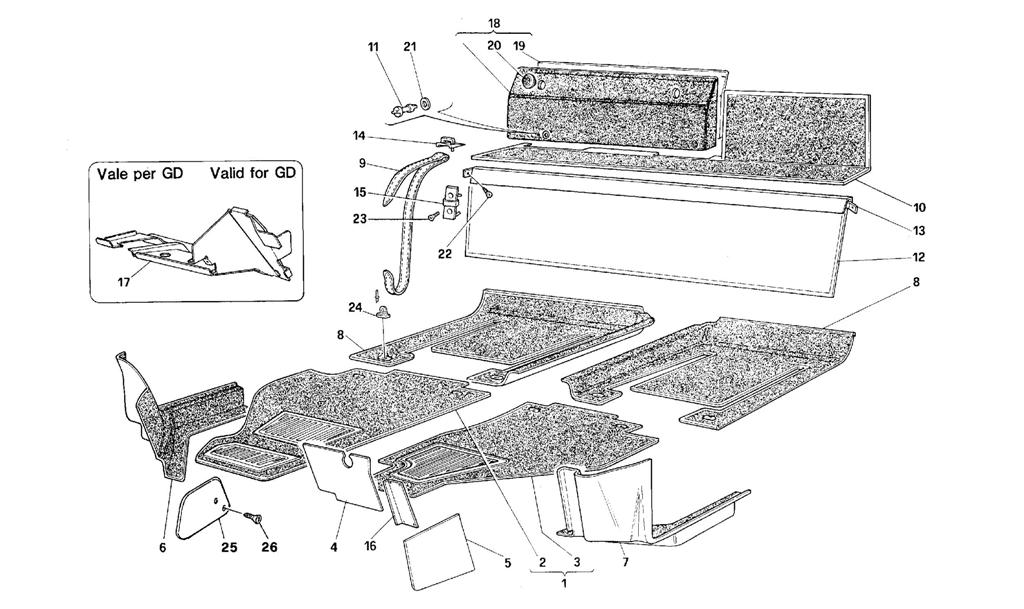

CARPETS

Go to Split View

CARPETS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 636968.. *Qty: 0 Set of carpets compl. -Not for GD -Valid from car Ass. Nr. 13836 Call
Location: - Prev | Next Part: 1000841 *Qty: 0 Call
Location: - Prev | Next Part: 1000842 *Qty: 0 Description not available Call
Location: - Prev | Next Part: 1000843 *Qty: 0 Description not available Call
Location: - Prev | Next Part: 1000844 *Qty: 0 Description not available Call
Location: - Prev | Next Part: 1000845 *Qty: 0 Description not available Call
Location: 1 Prev | Next Part: 646050.. *Qty: 1 Pilot/passenger movable carpets set -Not for GD Call
Location: 1 Prev | Next Part: 646051.. *Qty: 1 Pilot/passenger movable carpets set -Valid for GD Call
Location: 9 Prev | Next Part: 634006.. *Qty: 2 Luggage, belt fixing Call
Location: 10 Prev | Next Part: 631196.. *Qty: 1 Shieldpanel carpet Call
Location: 11 Prev | Next Part: 61530300 *Qty: 2 Pin Call
Location: 12 Prev | Next Part: 615201.. *Qty: 1 Lower covering Call
Location: 13 Prev | Next Part: 615345.. *Qty: 1 Trim for lower covering Call
Location: 14 Prev | Next Part: 615179.. *Qty: 2 Belt fixing support compl. Call
Location: 15 Prev | Next Part: 634008.. *Qty: 2 Luggage belt stop Call
Location: 16 Prev | Next Part: 61538100 *Qty: 1 Foot-rest for driver -Not for GD $209.97
Location: 17 Prev | Next Part: 634574.. *Qty: 1 Foot-rest for driver with carpet -Valid for GD Call
Location: 18 Prev | Next Part: 630276.. *Qty: 1 Injection unit covering box Call
Location: 19 Prev | Next Part: 63086500 *Qty: 1 Sound insulation -Not as spare parts -With assembly 63027600 Call
Location: 20 Prev | Next Part: 63032800 *Qty: 2 Grill Call
Location: 21 Prev | Next Part: 61529400 *Qty: 2 Gasket $2.41
Location: 22 Prev | Next Part: 15908478 *Qty: 2 Screw Call
Location: 23 Prev | Next Part: 15692178 *Qty: 1 Screw $0.90
Location: 24 Prev | Next Part: 63698100 *Qty: 1 Carpet fixing retainer $14.95
Location: 25 Prev | Next Part: 63479300 *Qty: 1 Accelerator pedal shield $136.76
Location: 26 Prev | Next Part: 15690770 *Qty: 2 Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
