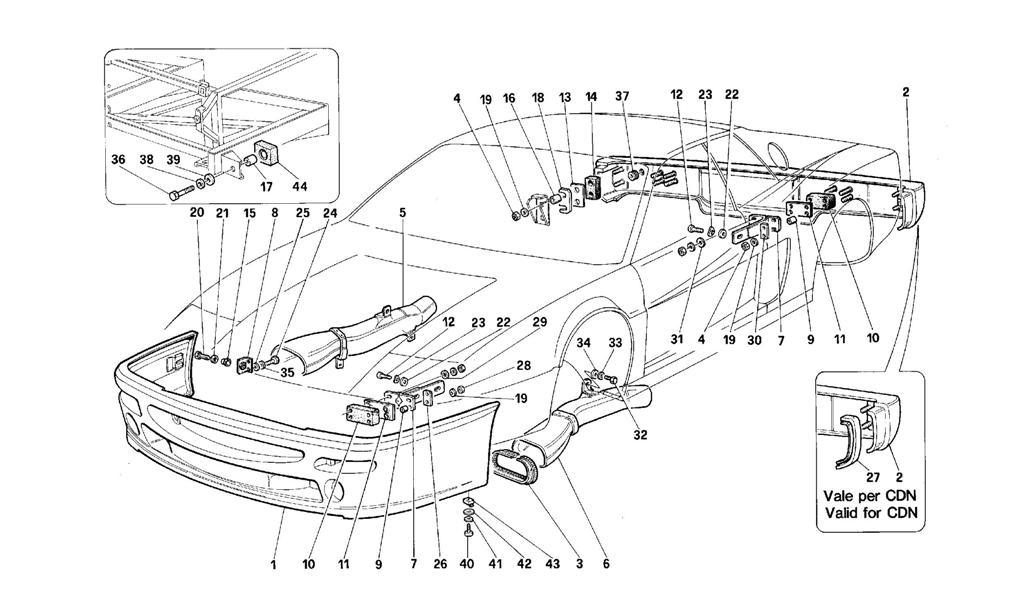

BUMPERS

Go to Split View

BUMPERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64440510 *Qty: 1 Front bumper -Not for USA and CDN $3,697.95
Location: 1 Prev | Next Part: 64456410 *Qty: 1 Front bumper -Valid for USA $4,738.26
Location: 1 Prev | Next Part: 64477210 *Qty: 1 Front bumper -Valid for CDN Call
Location: 2 Prev | Next Part: 63687610 *Qty: 1 Rear bumper -Valid for USA and J-SA $3,115.95
Location: 2 Prev | Next Part: 63692410 *Qty: 1 Rear bumper -Not for USA, CDN and J-SA $4,837.21
Location: 2 Prev | Next Part: 63102010 *Qty: 1 Rear bumper -Valid for CDN $4,497.51
Location: 3 Prev | Next Part: 63087600 *Qty: 2 Gasket for air conveyor Call
Location: 4 Prev | Next Part: 12577211 *Qty: 12 Nut $0.90
Location: 5 Prev | Next Part: 64641800 *Qty: 1 Air conveyor for R.H. front brake $187.36
Location: 6 Prev | Next Part: 64641900 *Qty: 1 Air conveyor for L.H. front brake $187.36
Location: 7 Prev | Next Part: 63106200 *Qty: 1 Support for R.H. rear bumper -Valid for CDN $162.85
Location: 7 Prev | Next Part: 63106300 *Qty: 1 Support for L.H. rear bumper -Valid for CDN $175.10
Location: 7 Prev | Next Part: 63022500 *Qty: 4 Support for front and rear bumper -Not for CDN $113.94
Location: 7 Prev | Next Part: 64737300 *Qty: 1 Support for R.H. front bumper -Valid for CDN $134.13
Location: 7 Prev | Next Part: 64737400 *Qty: 1 Support for L.H. front bumper -Valid for CDN $134.13
Location: 8 Prev | Next Part: 64453900 *Qty: 2 Sliding support bracket $25.57
Location: 9 Prev | Next Part: 61547600 *Qty: 16 Spacer -Valid for CDN- $1.94
Location: 9 Prev | Next Part: 61492100 *Qty: 16 Spacer -Not for CDN- $4.27
Location: 10 Prev | Next Part: 61492200 *Qty: 4 Pad $128.52
Location: 11 Prev | Next Part: 61492300 *Qty: 4 Plate $29.60
Location: 12 Prev | Next Part: 14309434 *Qty: 8 Screw $1.12
Location: 13 Prev | Next Part: 61532500 *Qty: 2 Plate -Valid for USA, J, CDN and SA $6.65
Location: 14 Prev | Next Part: 61532400 *Qty: 2 Pad -Valid for USA, J, CDN and SA $15.94
Location: 15 Prev | Next Part: 61543900 *Qty: 2 Bushing $50.59
Location: 16 Prev | Next Part: 61532300 *Qty: 4 Spacer -Valid for USA, J, CDN and SA $1.68
Location: 17 Prev | Next Part: 61564900 *Qty: 2 Bushing -Valid for CDN- $0.91
Location: 18 Prev | Next Part: 63677100 *Qty: 2 Spacer -Valid for USA, J, CDN and SA $29.47
Location: 19 Prev | Next Part: 12626224 *Qty: 16 Washer $0.90
Location: 20 Prev | Next Part: 62766400 *Qty: 2 Pin $12.47
Location: 21 Prev | Next Part: 12646801 *Qty: 2 Washer $1.70
Location: 22 Prev | Next Part: 12646970 *Qty: 8 Washer $1.87
Location: 23 Prev | Next Part: 127498 *Qty: 8 Washer $0.90
Location: 24 Prev | Next Part: 10902424 *Qty: 4 Screw $0.90
Location: 25 Prev | Next Part: 12643770 *Qty: 4 Washer $0.90
Location: 26 Prev | Next Part: 63460200 *Qty: 4 Plate -Valid for CDN- $10.70
Location: 26 Prev | Next Part: 63049900 *Qty: 2 Plate -Not for CDN- $43.60
Location: 27 Prev | Next Part: 63104100 *Qty: 1 L.H. side plate -Valid for CDN $15.75
Location: 27 Prev | Next Part: 63104000 *Qty: 1 R.H. side plate -Valid for CDN $15.75
Location: 28 Prev | Next Part: 149719 *Qty: 8 Nut Call
Location: 29 Prev | Next Part: 12644301 *Qty: 4 Washer -Not for CDN- $0.90
Location: 30 Prev | Next Part: 63460200 *Qty: 4 Plate -Valid for CDN- $10.70
Location: 30 Prev | Next Part: 63049900 *Qty: 2 Plate -Not for CDN- $43.60
Location: 31 Prev | Next Part: 12646801 *Qty: 4 Washer $1.70
Location: 32 Prev | Next Part: 10902424 *Qty: 6 Screw $0.90
Location: 33 Prev | Next Part: 127494 *Qty: 6 Washer $0.90
Location: 34 Prev | Next Part: 12640624 *Qty: 6 Washer $0.90
Location: 35 Prev | Next Part: 127494 *Qty: 4 Washer $0.90
Location: 36 Prev | Next Part: 16043621 *Qty: 2 Screw -Valid for CDN- $0.90
Location: 37 Prev | Next Part: 62770500 *Qty: 1 Cable grommet $1.94
Location: 38 Prev | Next Part: 127496 *Qty: 2 Washer -Valid for CDN- $0.90
Location: 39 Prev | Next Part: 12647021 *Qty: 2 Washer -Valid for CDN- $0.90
Location: 40 Prev | Next Part: 10902424 *Qty: 2 Screw $0.90
Location: 41 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 42 Prev | Next Part: 12640624 *Qty: 2 Washer $0.90
Location: 43 Prev | Next Part: 60758600 *Qty: 2 Nut $0.90
Location: 44 Prev | Next Part: 61547700 *Qty: 2 Pad -Valid for CDN -Not as spare parts now for F512M $46.93

* Quantity shown indicates the number of pieces used in the diagram.
