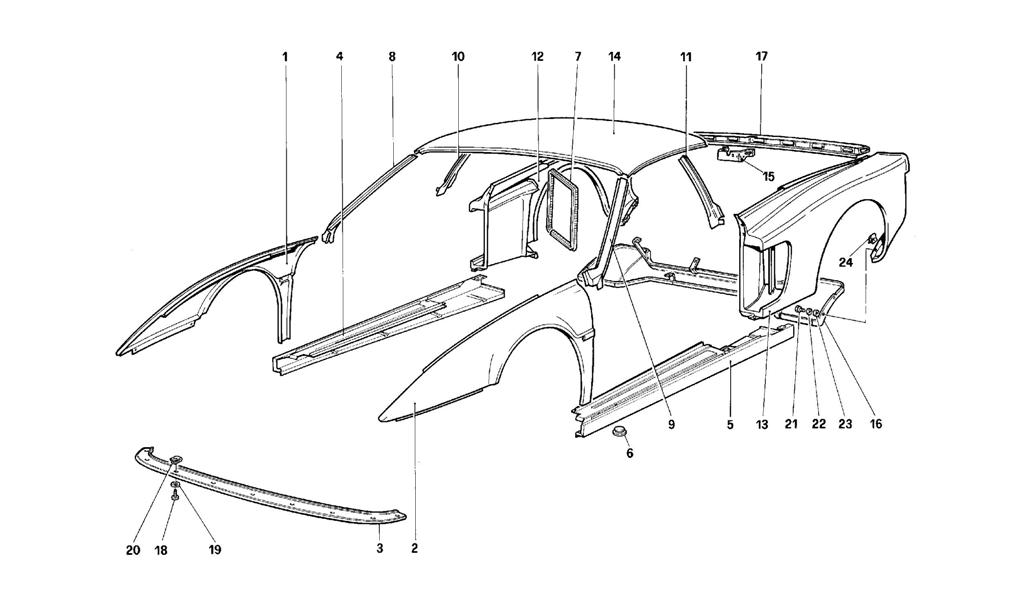

BODY - EXTERNAL COMPONENTS

Go to Split View

BODY - EXTERNAL COMPONENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64676100 *Qty: 1 R.H. front fender -Valid for USA Call
Location: 1 Prev | Next Part: 64675900 *Qty: 1 R.H. front fender -Not for USA $2,427.80
Location: 2 Prev | Next Part: 64676200 *Qty: 1 L.H. front fender -Valid for USA $2,161.47
Location: 2 Prev | Next Part: 64676000 *Qty: 1 L.H. front fender -Not for USA $2,427.80
Location: 3 Prev | Next Part: 63024600 *Qty: 1 Side covering plate Call
Location: 4 Prev | Next Part: 61557600 *Qty: 1 R.H. underdoor rail, complete Call
Location: 5 Prev | Next Part: 61557700 *Qty: 1 L.H. underdoor rail, complete $2,397.89
Location: 6 Prev | Next Part: 14507087 *Qty: 6 Plug $1.38
Location: 7 Prev | Next Part: 149517 *Qty: 2 Gasket Call
Location: 8 Prev | Next Part: 61477500 *Qty: 1 R.H. pillar for windshield $109.25
Location: 9 Prev | Next Part: 61477600 *Qty: 1 L.H. pillar for windshield $109.25
Location: 10 Prev | Next Part: 61477700 *Qty: 1 Pillar for R.H. side window $109.25
Location: 11 Prev | Next Part: 61477800 *Qty: 1 Pillar for L.H. side window $109.25
Location: 12 Prev | Next Part: 62925600 *Qty: 1 R.H. rear fender -Valid for USA and CDN $3,513.34
Location: 12 Prev | Next Part: 62925800 *Qty: 1 R.H. rear fender -Not for USA and CDN $4,840.72
Location: 13 Prev | Next Part: 62925700 *Qty: 1 L.H. rear fender -Valid for USA and CDN Call
Location: 13 Prev | Next Part: 62925900 *Qty: 1 L.H. rear fender -Not for USA and CDN $8,829.42
Location: 14 Prev | Next Part: 61478100 *Qty: 1 Roof $399.24
Location: 15 Prev | Next Part: 63068300 *Qty: 1 Lock support -Not for GD $33.98
Location: 15 Prev | Next Part: 63096000 *Qty: 1 Lock support -Valid for GD $68.28
Location: 16 Prev | Next Part: 63021700 *Qty: 1 Rer underframe shieldcomplete Call
Location: 17 Prev | Next Part: 63077600 *Qty: 1 Rear cross membre complete $370.35
Location: 18 Prev | Next Part: 15903975 *Qty: 9 Screw $0.90
Location: 19 Prev | Next Part: 12638177 *Qty: 9 Washer Superseded
Location: 20 Prev | Next Part: 62768700 *Qty: 9 Spring $1.45
Location: 21 Prev | Next Part: 10902424 *Qty: 12 Spring $0.90
Location: 22 Prev | Next Part: 127494 *Qty: 12 Washer $0.90
Location: 23 Prev | Next Part: 12643770 *Qty: 12 Washer $0.90
Location: 24 Prev | Next Part: 62766300 *Qty: 4 Spring $0.97

* Quantity shown indicates the number of pieces used in the diagram.
