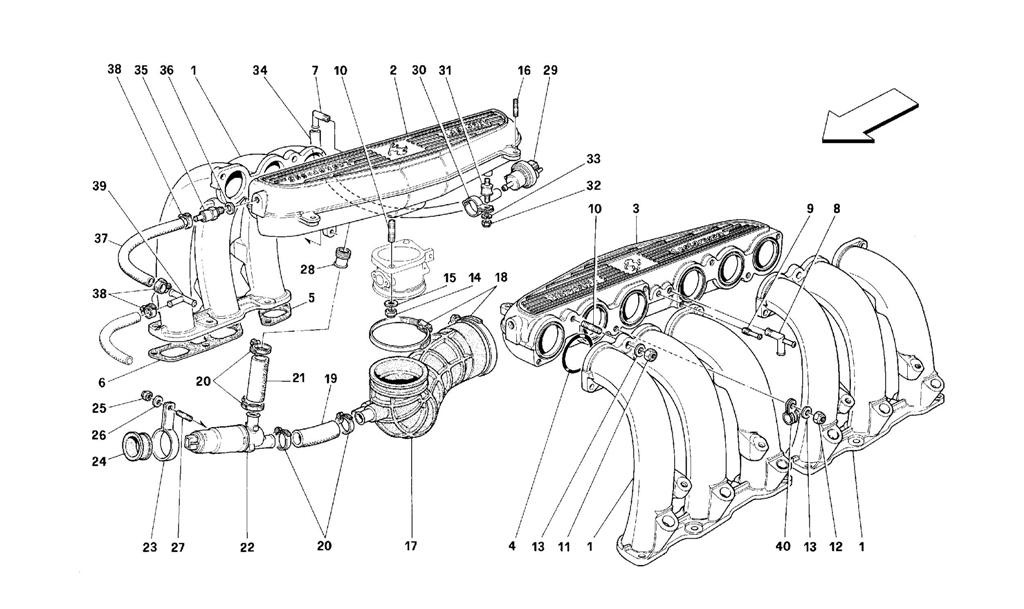

AIR INTAKE MANIFOLDS

AIR INTAKE MANIFOLDS

Location Part # Quantity* Description Price Add To Cart
- 164253 1 Air capacity for R.H. intake manifold complete Unavailable
- 164254 1 Air capacity for L.H. intake manifold complete Unavailable
1 143953 4 Intake manifold Unavailable
2 155015 1 Air capacity for R.H. intake manifold -Not as spare parts -With assembly 164253 Unavailable
3 155016 1 Air capacity for L.H. intake manifold -Not as spare parts -With assembly 164254 Unavailable
4 142913 12 Gasket Unavailable
5 139968 4 Gasket $7.80
6 139969 4 Gasket $11.69
7 147926 1 Connection $69.06
8 147925 1 Connection $94.01
9 117348 2 Connection $8.69
10 13516824 20 Stud Unavailable
11 101240 8 Nut Superseded
12 150978 8 Nut $15.55
13 12601374 16 Washer $0.90
14 133989 4 Nut $0.90
15 11193874 4 Washer $0.90
16 13541124 4 Stud Unavailable
17 145450 1 R.H. sleeve $134.24
17 145464 1 L.H. sleeve $95.06
18 13001190 4 Clamp $1.44
19 144561 2 Pipe from regulator to sleeve $18.92
20 13000490 8 Clamp Superseded
21 144560 2 Pipe from regulator to plenum chamber Unavailable
22 142432 2 Revolution regulator Unavailable
23 150735 2 Bracket $9.42
24 150736 2 Sheath Unavailable
25 15896214 2 Nut Unavailable
26 127494 2 Washer $0.90
27 11500024 2 Stud $3.29
28 144562 2 Connection $4.51
29 130978 2 Antievaporation valve Unavailable
30 147923 2 Clamp $2.04
31 148835 2 Buffer $14.27
32 169180 2 Nut Unavailable
33 14496301 2 Washer $1.81
34 116764 1 Pipe from antiev. valve to L.H. air capacity connection -Replace the 154708 $47.22
34 116767 1 Pipe from antiev. valve to R.H. air capacity connection -Valid after stock exhaustion of 154709 $44.42
35 147978 2 Valve $19.14
36 10298460 2 Gasket $0.90
37 125031 2 Pipe from valve to3-way union Unavailable
38 13000390 5 Clamp $0.93
39 100881 1 3-way union Unavailable
40 10450190 1 Bracket $0.90

* Quantity shown indicates the number of pieces used in the diagram.
