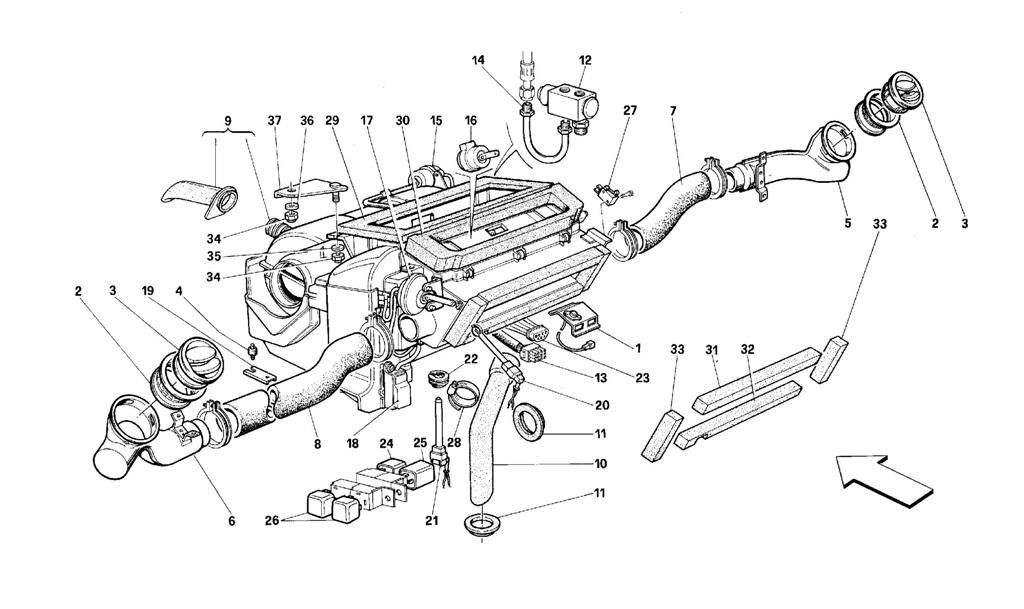

AIR-CONDITIONING UNIT

Go to Split View

AIR-CONDITIONING UNIT

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 64442300 *Qty: 1 Air conditioner assembly -Not for GD $4,548.45
Location: - Prev | Next Part: 64545800 *Qty: 1 Air conditioner assembly -Valid for GD $5,408.05
Location: 1 Prev | Next Part: 127014 *Qty: 1 Power transistor $112.86
Location: 2 Prev | Next Part: 61528500 *Qty: 2 Air vent frame ring $5.78
Location: 3 Prev | Next Part: 61528600 *Qty: 2 Air vent $19.96
Location: 4 Prev | Next Part: 102947 *Qty: 2 Anti-shaker support $18.79
Location: 5 Prev | Next Part: 63108300 *Qty: 1 R.H. air duct -Valid for GD $73.38
Location: 5 Prev | Next Part: 63080200 *Qty: 1 R.H. air duct -Not for GD $80.54
Location: 6 Prev | Next Part: 63109000 *Qty: 1 L.H. air duct -Valid for GD $73.38
Location: 6 Prev | Next Part: 63080300 *Qty: 1 L.H. air duct -Not for GD $78.27
Location: 7 Prev | Next Part: 61559100 *Qty: 1 R.H. union from heater air vent $193.50
Location: 8 Prev | Next Part: 61559200 *Qty: 1 L.H. union from heater air vent $193.50
Location: 9 Prev | Next Part: 154290 *Qty: 1 Front condensate drain pipe $29.43
Location: 10 Prev | Next Part: 61529300 *Qty: 1 Condensate drain pipe $28.20
Location: 11 Prev | Next Part: 61528700 *Qty: 2 Gasket $1.45
Location: 12 Prev | Next Part: 161851 *Qty: 1 Expansion valve $259.73
Location: 13 Prev | Next Part: 154277 *Qty: 1 Cable set $162.85
Location: 14 Prev | Next Part: 154278 *Qty: 1 Coupling tube $35.56
Location: 15 Prev | Next Part: 154279 *Qty: 1 Lid actuator $22.42
Location: 16 Prev | Next Part: 61268000 *Qty: 1 Inner actuator $19.44
Location: 17 Prev | Next Part: 60930700 *Qty: 1 Defroster actuator $36.42
Location: 18 Prev | Next Part: 154280 *Qty: 1 Air actuator to R.H. foots $53.42
Location: 18 Prev | Next Part: 154281 *Qty: 1 Air actuator to L.H. foots $53.42
Location: 19 Prev | Next Part: 154289 *Qty: 2 Bracket for air conditioner fixing $4.21
Location: 20 Prev | Next Part: 154282 *Qty: 1 Air temperature sensor $30.46
Location: 21 Prev | Next Part: 154283 *Qty: 1 Cooler temperature sensor $179.59
Location: 22 Prev | Next Part: 154284 *Qty: 1 Gasket $0.90
Location: 23 Prev | Next Part: 154285 *Qty: 1 Vacuum connector $52.88
Location: 24 Prev | Next Part: 154287 *Qty: 1 Control relay $18.53
Location: 25 Prev | Next Part: 154286 *Qty: 1 Timer $115.21
Location: 26 Prev | Next Part: 154288 *Qty: 2 Control switch relay $18.53
Location: 27 Prev | Next Part: 154295 *Qty: 1 Light micro-switch $35.36
Location: 28 Prev | Next Part: 12180090 *Qty: 1 Clamp $0.90
Location: 29 Prev | Next Part: 144591 *Qty: 1 Upper gasket $8.76
Location: 30 Prev | Next Part: 144596 *Qty: 1 Gasket $6.84
Location: 31 Prev | Next Part: 144592 *Qty: 1 Gasket $1.25
Location: 32 Prev | Next Part: 144593 *Qty: 1 Gasket $4.03
Location: 33 Prev | Next Part: 144594 *Qty: 2 Gasket $0.90
Location: 34 Prev | Next Part: 102948 *Qty: 8 Nut $0.90
Location: 35 Prev | Next Part: 12640624 *Qty: 6 Washer $0.90
Location: 36 Prev | Next Part: 12646201 *Qty: 2 Washer $0.90
Location: 37 Prev | Next Part: 63418600 *Qty: 1 L.H. support $23.65
Location: 37 Prev | Next Part: 63418700 *Qty: 1 R.H. support $21.55

* Quantity shown indicates the number of pieces used in the diagram.
