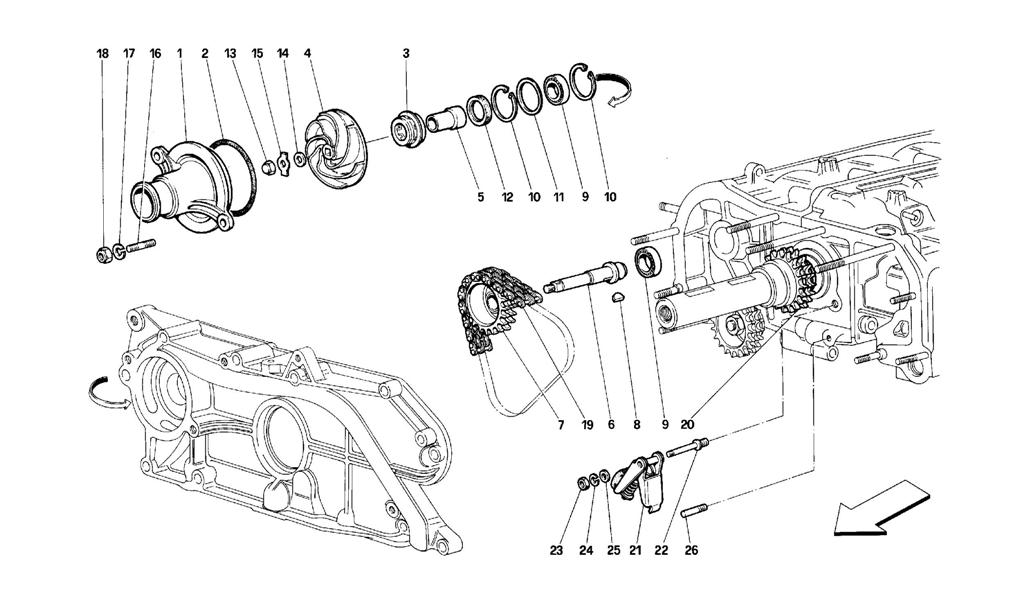

WATER PUMP

Go to Split View

WATER PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 143384 *Qty: 1 Water pump cover Call
Location: 2 Prev | Next Part: 101023 *Qty: 1 Seal ring $5.25
Location: 3 Prev | Next Part: 183759 *Qty: 1 Seal ring $38.63
Location: 4 Prev | Next Part: 143382 *Qty: 1 Impeller $749.32
Location: 5 Prev | Next Part: 130931 *Qty: 1 Spacer $171.00
Location: 6 Prev | Next Part: 130929 *Qty: 1 Spindle $834.55
Location: 7 Prev | Next Part: 121064 *Qty: 1 Driven gear $1,228.32
Location: 8 Prev | Next Part: 10202320 *Qty: 1 Father key $1.39
Location: 9 Prev | Next Part: 133899 *Qty: 2 Bearing $9.66
Location: 10 Prev | Next Part: 11059476 *Qty: 2 Seeger ring $0.90
Location: 11 Prev | Next Part: 121084 *Qty: 1 Spring washer $7.10
Location: 12 Prev | Next Part: 155153 *Qty: 1 Seal ring $16.37
Location: 13 Prev | Next Part: 100436 *Qty: 1 Nut $12.89
Location: 14 Prev | Next Part: 10730321 *Qty: 1 Washer $0.90
Location: 15 Prev | Next Part: 100434 *Qty: 1 Safety plate $9.49
Location: 16 Prev | Next Part: 13541024 *Qty: 2 Stud $0.90
Location: 17 Prev | Next Part: 12601211 *Qty: 2 Washer Superseded
Location: 18 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 19 Prev | Next Part: 133065 *Qty: 1 Water and oil pumps control belt $130.41
Location: 20 Prev | Next Part: 121063 *Qty: 1 Water and oil pumps control gear $524.67
Location: 21 Prev | Next Part: 114329 *Qty: 1 Belt stretcher $372.37
Location: 22 Prev | Next Part: 121269 *Qty: 1 Belt stretcher supporting pin Call
Location: 23 Prev | Next Part: 10720121 *Qty: 1 Nut $0.90
Location: 24 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 25 Prev | Next Part: 10730114 *Qty: 1 Washer $0.90
Location: 26 Prev | Next Part: 14604670 *Qty: 1 Belt stretcher securing pin $0.90

* Quantity shown indicates the number of pieces used in the diagram.
