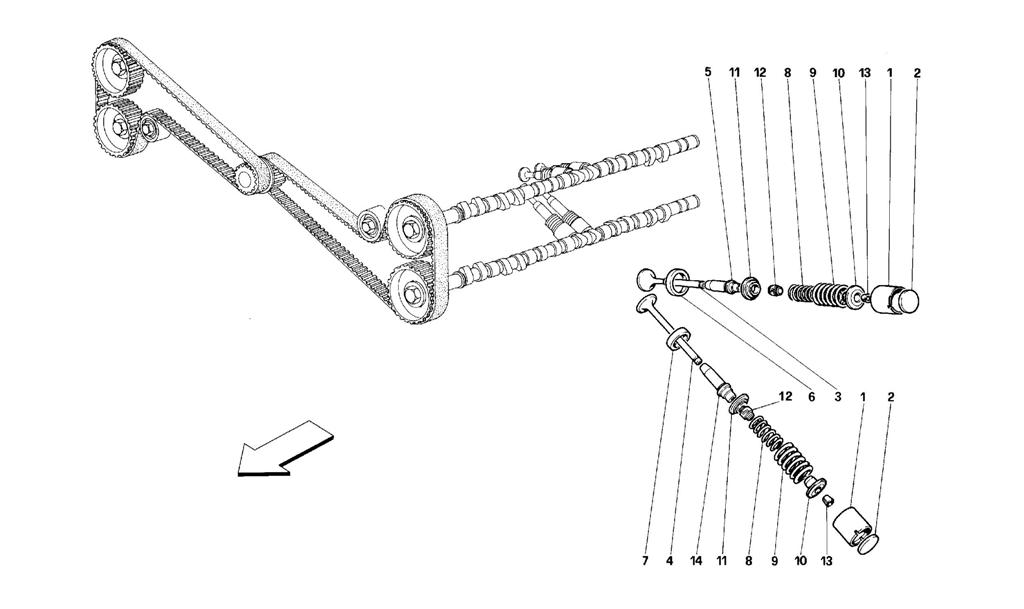

TIMING SYSTEM - VALVES

Go to Split View

TIMING SYSTEM - VALVES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 149863 *Qty: 48 Tappet for valve control $16.81
Location: 2 Prev | Next Part: 117584 *Qty: 48 Ditto, thickness 4.00 mm $21.98
Location: 2 Prev | Next Part: 117569 *Qty: 48 Shim for valve adjustment thickness 3,25 mm. $21.98
Location: 2 Prev | Next Part: 117585 *Qty: 48 Ditto, thickness 4.05 mm $21.98
Location: 2 Prev | Next Part: 117570 *Qty: 48 Ditto, thickness 3.30 mm $21.98
Location: 2 Prev | Next Part: 117586 *Qty: 48 Ditto, thickness 4.10 mm $21.98
Location: 2 Prev | Next Part: 117587 *Qty: 48 Ditto, thickness 4.15 mm $21.98
Location: 2 Prev | Next Part: 117571 *Qty: 48 Ditto, thickness 3.35 mm $21.98
Location: 2 Prev | Next Part: 117588 *Qty: 48 Ditto, thickness 4.20 mm $21.98
Location: 2 Prev | Next Part: 117572 *Qty: 48 Ditto, thickness 3.40 mm $21.98
Location: 2 Prev | Next Part: 153731 *Qty: 48 Ditto, thickness 3.725 mm $14.19
Location: 2 Prev | Next Part: 117589 *Qty: 48 Ditto, thickness 4.25 mm $21.98
Location: 2 Prev | Next Part: 117573 *Qty: 48 Ditto, thickness 3.45 mm $21.98
Location: 2 Prev | Next Part: 153732 *Qty: 48 Ditto, thickness 3.775 mm $14.19
Location: 2 Prev | Next Part: 117590 *Qty: 48 Ditto, thickness 4.30 mm $21.98
Location: 2 Prev | Next Part: 117574 *Qty: 48 Ditto, thickness 3.50 mm $21.98
Location: 2 Prev | Next Part: 153733 *Qty: 48 Ditto, thickness 3.825 mm $14.19
Location: 2 Prev | Next Part: 117591 *Qty: 48 Ditto, thickness 4.35 mm $21.98
Location: 2 Prev | Next Part: 117575 *Qty: 48 Ditto, thickness 3.55 mm $21.98
Location: 2 Prev | Next Part: 153734 *Qty: 48 Ditto, thickness 3.875 mm $14.19
Location: 2 Prev | Next Part: 153735 *Qty: 48 Ditto, thickness 3.925 mm $14.19
Location: 2 Prev | Next Part: 117592 *Qty: 48 Ditto, thickness 4.40 mm $21.98
Location: 2 Prev | Next Part: 117576 *Qty: 48 Ditto, thickness 3.60 mm $21.98
Location: 2 Prev | Next Part: 153736 *Qty: 48 Ditto, thickness 3.975 mm $14.19
Location: 2 Prev | Next Part: 117593 *Qty: 48 Ditto, thickness 4.45 mm $21.98
Location: 2 Prev | Next Part: 117577 *Qty: 48 Ditto, thickness 3.65 mm $21.98
Location: 2 Prev | Next Part: 153737 *Qty: 48 Ditto, thickness 4.025 mm $14.22
Location: 2 Prev | Next Part: 117594 *Qty: 48 Ditto, thickness 4.50 mm $21.98
Location: 2 Prev | Next Part: 117578 *Qty: 48 Ditto, thickness 3.70 mm $21.98
Location: 2 Prev | Next Part: 153738 *Qty: 48 Ditto, thickness 4.075 mm $20.19
Location: 2 Prev | Next Part: 117595 *Qty: 48 Ditto, thickness 4.55 mm $32.15
Location: 2 Prev | Next Part: 117579 *Qty: 48 Ditto, thickness 3.75 mm $21.98
Location: 2 Prev | Next Part: 153739 *Qty: 48 Ditto, thickness 4.125 mm Call
Location: 2 Prev | Next Part: 117596 *Qty: 48 Ditto, thickness 4.60 mm $32.15
Location: 2 Prev | Next Part: 117580 *Qty: 48 Ditto, thickness 3.80 mm $21.98
Location: 2 Prev | Next Part: 153740 *Qty: 48 Ditto, thickness 4.175 mm $14.19
Location: 2 Prev | Next Part: 117581 *Qty: 48 Ditto, thickness 3.85 mm $21.98
Location: 2 Prev | Next Part: 153741 *Qty: 48 Ditto, thickness 4.225 mm $14.19
Location: 2 Prev | Next Part: 117582 *Qty: 48 Ditto, thickness 3.90 mm $21.98
Location: 2 Prev | Next Part: 153742 *Qty: 48 Ditto, thickness 4.275 mm $14.19
Location: 2 Prev | Next Part: 117583 *Qty: 48 Ditto, thickness 3.95 mm $21.98
Location: 3 Prev | Next Part: 139855 *Qty: 24 Intake valve $88.07
Location: 4 Prev | Next Part: 149217 *Qty: 24 Exhaust valve $64.08
Location: 5 Prev | Next Part: 117565 *Qty: 24 Intake valve guide $107.36
Location: 5 Prev | Next Part: 117566 *Qty: 24 Intake valve guide oversized by 0.2 mm. Call
Location: 6 Prev | Next Part: 148313 *Qty: 24 Intake valve seat $10.85
Location: 7 Prev | Next Part: 148312 *Qty: 24 Exhaust valve seat $14.20
Location: 8 Prev | Next Part: 156648 *Qty: 48 Valve return inner spring $69.94
Location: 9 Prev | Next Part: 149352 *Qty: 48 Valve return outer spring $26.62
Location: 10 Prev | Next Part: 117567 *Qty: 48 Spring retaining upper cup $48.95
Location: 11 Prev | Next Part: 117568 *Qty: 48 Spring retaining lower cup $7.55
Location: 12 Prev | Next Part: 141565 *Qty: 48 Oil seal for valves guide $7.77
Location: 13 Prev | Next Part: 117283 *Qty: 96 Cotter for valve spring cup $2.83
Location: 14 Prev | Next Part: 117565 *Qty: 24 Exhaust valve guide $107.36
Location: 14 Prev | Next Part: 117566 *Qty: 24 Exhaust valve guide oversized by 0.2 mm. Call

* Quantity shown indicates the number of pieces used in the diagram.
