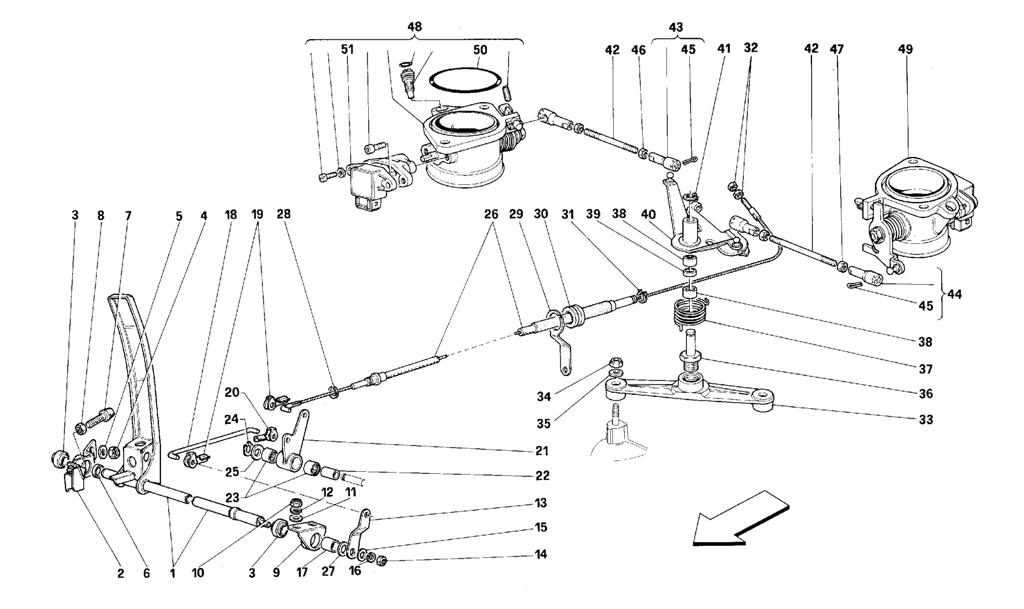

THROTTLE CONTROL -VALID FOR RHD

Go to Split View

THROTTLE CONTROL -VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 151478 *Qty: 1 Throttle pedal $721.81
Location: 2 Prev | Next Part: 116526 *Qty: 1 Pedal support $112.07
Location: 3 Prev | Next Part: 122430 *Qty: 2 Ball joint $201.22
Location: 4 Prev | Next Part: 16104411 *Qty: 2 Nut $0.90
Location: 5 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 6 Prev | Next Part: 121477 *Qty: 1 Spacer $3.12
Location: 7 Prev | Next Part: 100640 *Qty: 1 Pedal adjustment push rod $7.47
Location: 8 Prev | Next Part: 16102314 *Qty: 1 Nut $0.90
Location: 9 Prev | Next Part: 116528 *Qty: 1 Support for relay lever $107.99
Location: 10 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 11 Prev | Next Part: 12643724 *Qty: 2 Washer $0.90
Location: 12 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 13 Prev | Next Part: 124997 *Qty: 1 Throttle control lever $9.17
Location: 14 Prev | Next Part: 16100821 *Qty: 1 Nut $3.46
Location: 15 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90
Location: 16 Prev | Next Part: 127496 *Qty: 1 Washer $0.90
Location: 17 Prev | Next Part: 117991 *Qty: 1 Spacer $3.23
Location: 18 Prev | Next Part: 124998 *Qty: 1 Tie rod $11.22
Location: 19 Prev | Next Part: 119550 *Qty: 2 R.H. fastened $0.99
Location: 20 Prev | Next Part: 119551 *Qty: 1 L.H. fastened $0.99
Location: 21 Prev | Next Part: 150408 *Qty: 1 Relay lever $91.70
Location: 22 Prev | Next Part: 125001 *Qty: 2 Inner ring $9.66
Location: 23 Prev | Next Part: 101677 *Qty: 2 Roller bearing $2.43
Location: 24 Prev | Next Part: 11065676 *Qty: 1 Seeger ring $0.90
Location: 25 Prev | Next Part: 117311 *Qty: 1 Washer $0.90
Location: 26 Prev | Next Part: 150410 *Qty: 1 Throttles control cable -Valid till stock exhaustion $134.43
Location: 26 Prev | Next Part: 165417 *Qty: 1 Throttles control cable -Valid after stock exhaustion of 150410 $115.99
Location: 27 Prev | Next Part: 105929 *Qty: 1 Thrust washer $0.93
Location: 27 Prev | Next Part: 105930 *Qty: 1 Thrust washer $2.21
Location: 27 Prev | Next Part: 105931 *Qty: 1 Thrust washer $0.97
Location: 28 Prev | Next Part: 11087974 *Qty: 1 Circlip $0.90
Location: 29 Prev | Next Part: 154742 *Qty: 1 Bracket $36.28
Location: 30 Prev | Next Part: 10396680 *Qty: 1 Cable grommet $0.90
Location: 31 Prev | Next Part: 11065676 *Qty: 1 Seeger ring $0.90
Location: 32 Prev | Next Part: 10725011 *Qty: 2 Nut $2.09
Location: 33 Prev | Next Part: 145696 *Qty: 1 Throttle support $136.36
Location: 34 Prev | Next Part: 102948 *Qty: 2 Nut $0.90
Location: 35 Prev | Next Part: 12639701 *Qty: 2 Washer Call
Location: 36 Prev | Next Part: 136705 *Qty: 1 Pin $48.22
Location: 37 Prev | Next Part: 150085 *Qty: 1 Spring $2.76
Location: 38 Prev | Next Part: 132873 *Qty: 2 Roller cage $5.48
Location: 39 Prev | Next Part: 136880 *Qty: 1 Spacer $30.45
Location: 40 Prev | Next Part: 153356 *Qty: 1 Lever $229.23
Location: 41 Prev | Next Part: 11065676 *Qty: 1 Seeger ring $0.90
Location: 42 Prev | Next Part: 145762 *Qty: 2 Tie rod $1.68
Location: 43 Prev | Next Part: 105619 *Qty: 2 Spheric joint (L.H. thread) $104.18
Location: 44 Prev | Next Part: 173999 *Qty: 2 Spheric joint (R.H. thread) $8.40
Location: 45 Prev | Next Part: 10795101 *Qty: 4 Cotter pin $0.90
Location: 46 Prev | Next Part: 105586 *Qty: 2 Nut (L.H. thread) $5.54
Location: 47 Prev | Next Part: 15896470 *Qty: 2 Nut (R.H. thread) $0.90
Location: 48 Prev | Next Part: 146632 *Qty: 1 R.H. throttle body complete $1,087.53
Location: 49 Prev | Next Part: 148708 *Qty: 1 L.H. throttle body complete $747.96
Location: 50 Prev | Next Part: 142934 *Qty: 2 Gasket $2.09
Location: 51 Prev | Next Part: 166419 *Qty: 2 Safety plug for by-pass screw $8.16
Location: 51 Prev | Next Part: 142434 *Qty: 2 Potentiometer for throttle valve Call

* Quantity shown indicates the number of pieces used in the diagram.
