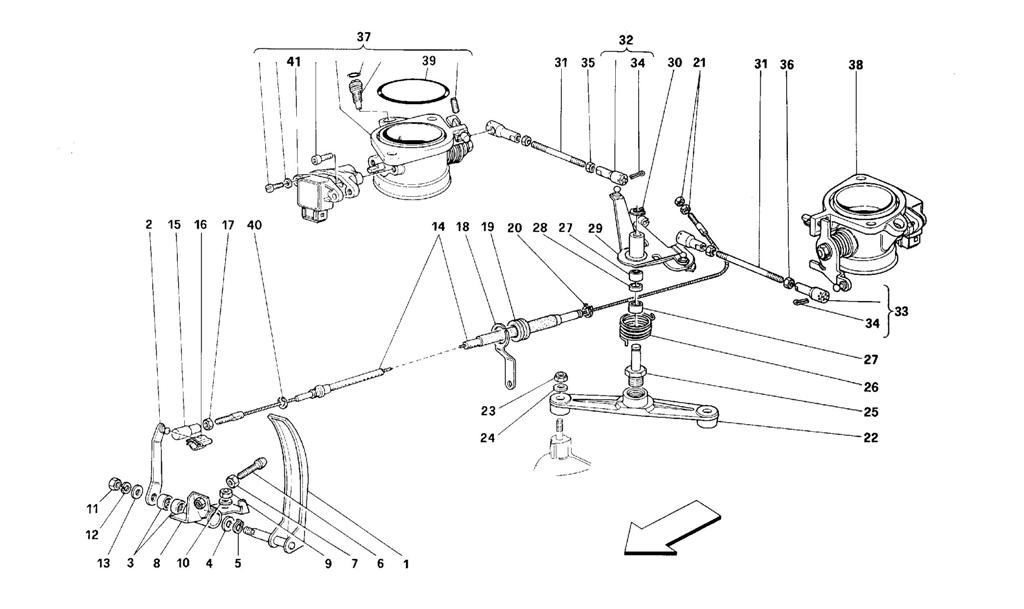

THROTTLE CONTROL -NOT FOR RHD

THROTTLE CONTROL -NOT FOR RHD

Location Part # Quantity* Description Price Add To Cart
1 148296 1 Throttle pedal $61.53
2 148297 1 Throttle control lever $35.22
3 101677 2 Roller cage $9.85
4 108576 1 Washer $1.64
5 11066075 1 Seeger ring Unavailable
6 105232 1 Pedal adjustment push rod $6.39
7 16102314 1 Nut Unavailable
8 115396 1 Throttle pedal support $68.03
9 16100821 2 Nut Unavailable
10 127496 2 Washer $0.90
11 16100821 1 Nut Unavailable
12 127496 1 Washer $0.90
13 10519624 1 Washer Unavailable
14 165416 1 Throttles control cable -Valid after stock exhaustion of 146447 $277.18
15 10123811 1 Joint head $34.69
16 174001 1 Spring clip $0.90
17 15896470 1 Nut Unavailable
18 154742 1 Bracket $34.69
19 10396680 1 Cable grommet $2.25
20 11065676 1 Seeger ring Unavailable
21 10725011 2 Nut $1.99
22 145696 1 Throttle support $171.15
23 102948 2 Nut Superseded
24 12639701 2 Washer Unavailable
25 136705 1 Pin $60.51
26 150085 1 Spring $3.69
27 132873 2 Roller cage $5.24
28 136880 1 Spacer $29.11
29 153356 1 Lever $287.65
30 11065676 1 Seeger ring Unavailable
31 145762 2 Tie rod $2.25
32 105619 2 Spheric joint (L.H. thread) $137.29
33 173999 2 Spheric joint (R.H. thread) $8.04
34 10795101 4 Cotter pin Unavailable
35 105586 2 Nut (L.H. thread) $11.73
36 15896470 2 Nut (R.H. thread) Unavailable
37 146632 1 R.H. throttle body complete $953.47
38 148708 1 L.H. throttle body complete $938.55
39 142934 2 Gasket $14.43
40 11087974 1 Circlip $0.90
41 166419 2 Safety plug for by-pass screw $10.25
41 142434 2 Potentiometer for throttle valve $413.17

* Quantity shown indicates the number of pieces used in the diagram.
