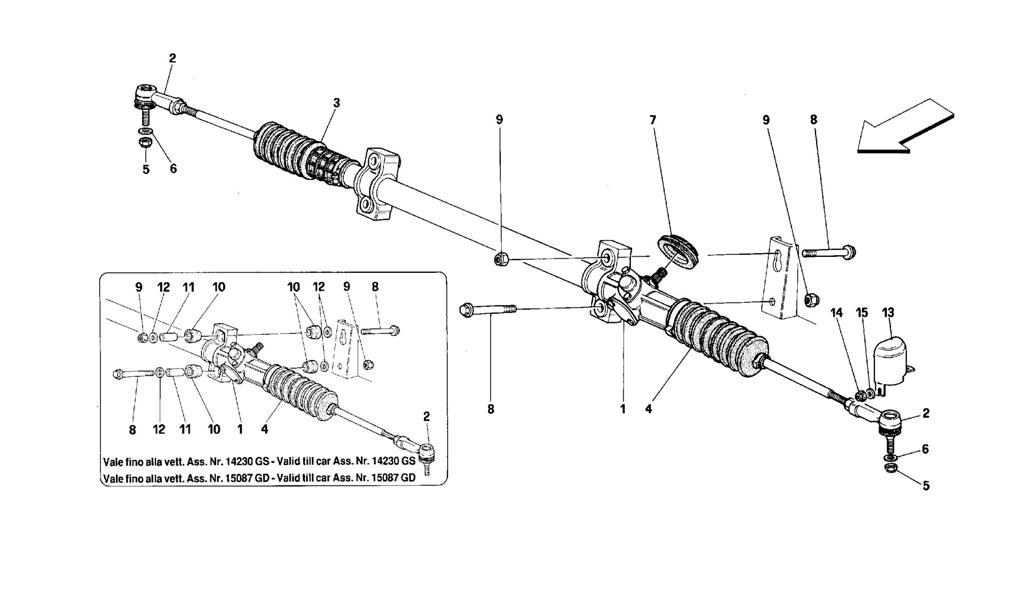

STEERING BOX AND LINKAGE

Go to Split View

STEERING BOX AND LINKAGE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 150066 *Qty: 1 Steering box -Valid till Ass. Nr. 14230 -Not for GD-Not as spare part now-Replaced by 155611 Call
Location: 1 Prev | Next Part: 150345 *Qty: 1 Steering box -Valid till Ass. Nr. 15087 -Valid for GD $529.60
Location: 1 Prev | Next Part: 155611 *Qty: 1 Steering box -Valid from Ass. Nr. 14231 -Not for GD $1,130.84
Location: 1 Prev | Next Part: 155612 *Qty: 1 Steering box -Valid from Ass. Nr. 15088 -Valid for GD $922.84
Location: 2 Prev | Next Part: 161128 *Qty: 2 Ball joint $121.46
Location: 3 Prev | Next Part: 131650 *Qty: 1 Bellows $45.63
Location: 4 Prev | Next Part: 139408 *Qty: 1 Bellows $47.39
Location: 5 Prev | Next Part: 149807 *Qty: 2 Nut - metrical thread $1.39
Location: 5 Prev | Next Part: 134287 *Qty: 2 Nut - inch thread $1.66
Location: 6 Prev | Next Part: 122238 *Qty: 2 Washer $5.60
Location: 7 Prev | Next Part: 149731 *Qty: 1 Bellows $10.37
Location: 8 Prev | Next Part: 175701 *Qty: 4 Screw -Valid for steering box 155611 and 155612 $3.22
Location: 8 Prev | Next Part: 16287834 *Qty: 4 Screw -Valid for steering box 150066 and 150345 $0.90
Location: 9 Prev | Next Part: 104030 *Qty: 4 Nut $0.90
Location: 10 Prev | Next Part: 135139 *Qty: 8 Buffer $32.14
Location: 11 Prev | Next Part: 108294 *Qty: 4 Spacer $110.98
Location: 12 Prev | Next Part: 116413 *Qty: 8 Washer $1.32
Location: 13 Prev | Next Part: 150878 *Qty: 1 R.H. protection $17.53
Location: 13 Prev | Next Part: 150879 *Qty: 1 L.H. protection $17.00
Location: 14 Prev | Next Part: 139951 *Qty: 4 Nut $1.05
Location: 15 Prev | Next Part: 10730014 *Qty: 4 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
