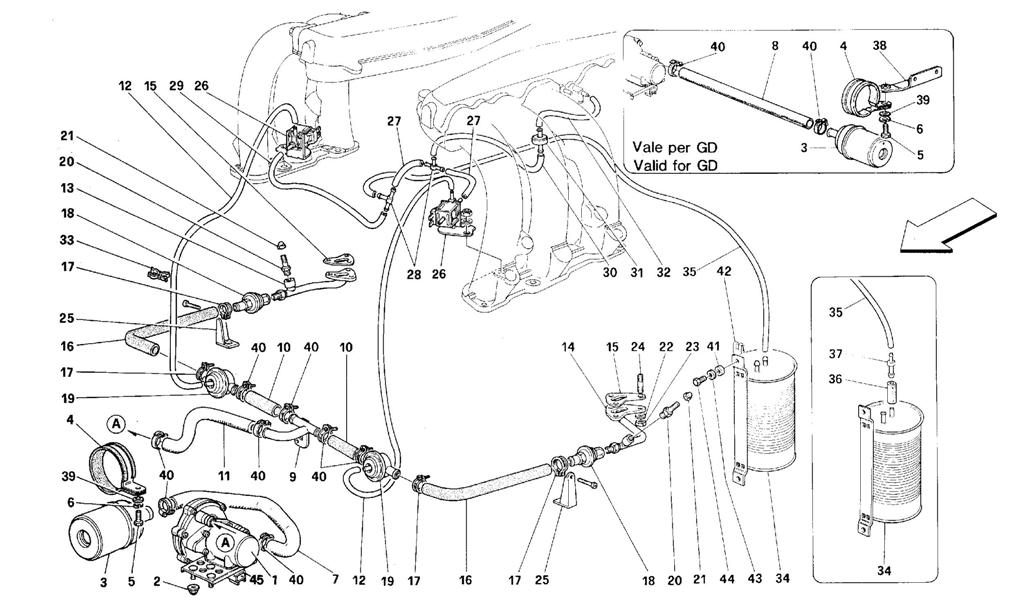

SECONDARY AIR PUMP AND LINES

SECONDARY AIR PUMP AND LINES

Location Part # Quantity* Description Price Add To Cart
1 148049 1 Electric air pump Unavailable
2 15896214 3 Nut Unavailable
3 70000967 1 Air filter Unavailable
4 126353 1 Bracket $32.52
5 10902111 1 Screw Superseded
6 12601274 1 Washer $0.90
7 149712 1 Pipe from air filter to pump -Not for RHD $571.67
8 151141 1 Pipe from air filter to pump -Valid for RHD $360.12
9 148076 1 3-way union $108.67
10 126341 2 Pipe from connection to cut-off valve $23.93
11 149701 1 Pipe from 3-way to pump $435.60
12 128907 2 Pipe from cut-off to solenoid valve Unavailable
13 149298 1 R.H. air injection pipe $288.06
14 149289 1 L.H. air injection pipe $274.23
15 146194 2 Gasket $9.42
16 125776 2 Pipe Unavailable
17 10169290 4 Clamp $15.33
18 148494 2 Secondary air valve $75.00
19 147390 2 Cut-off valve Unavailable
20 144240 2 Connection $45.74
21 150595 2 Nut $1.10
22 106850 6 Washer Superseded
23 115201 6 Nut $24.46
24 13541024 6 Stud Unavailable
25 149301 2 Bracket $21.03
26 111704 2 Solenoid valve $277.14
27 115666 2 Pipe to connection $19.31
28 121793 2 Connection Unavailable
29 118901 1 Pipe from solenoid valve to connection Unavailable
30 141235 1 Pipe from connection to valve $10.21
31 62507200 1 Valve $25.25
32 131042 1 Pipe from valve to plenum chamber connection Unavailable
33 124551 2 Spring $1.68
34 168038 1 Vacuum tank $626.76
35 115665 1 Pipe from vacuum tank to connection $39.40
36 63450500 2 Pipe $10.17
37 133338 2 Connection $1.22
38 151138 1 Air filter bracket -Valid for RHD $20.46
39 12639701 1 Washer Unavailable
40 13000490 8 Clamp Superseded
41 62567400 2 Spacer $1.18
42 62764200 2 Spring Unavailable
43 12638177 2 Washer Superseded
44 10978221 2 Screw $1.97
45 149111 1 Air pump fixing bracket $28.77

* Quantity shown indicates the number of pieces used in the diagram.
