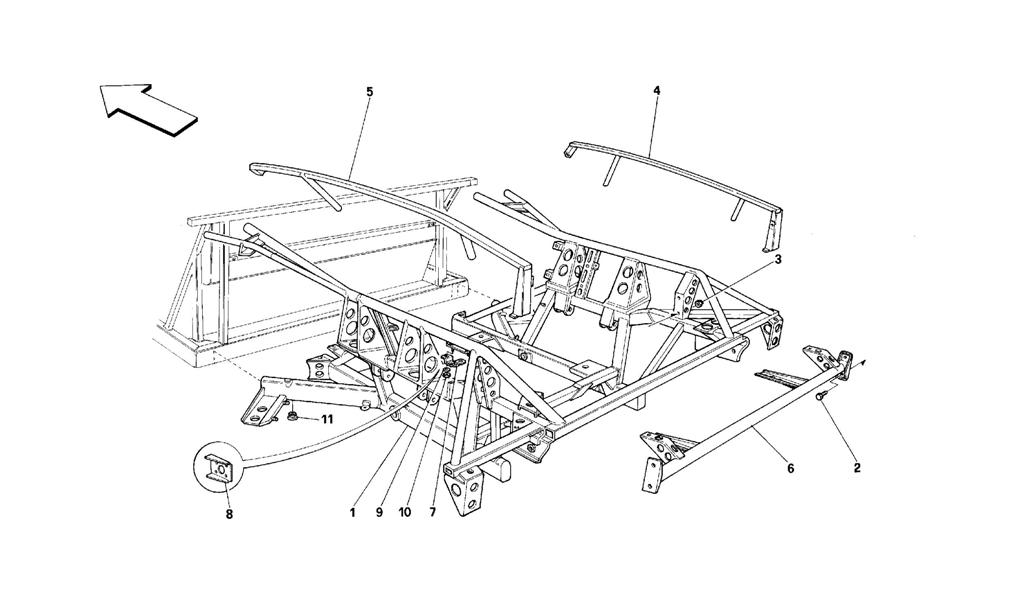

REAR FRAME

Go to Split View

REAR FRAME

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 144720 *Qty: 0 TELAIO POST.CPL-F110HB SVIZZERA- $6,589.22
Location: - Prev | Next Part: 144721 *Qty: 0 FRAME COMPL R $6,589.22
Location: - Prev | Next Part: 144722 *Qty: 0 FRAME/CANADA $4,581.63
Location: - Prev | Next Part: 144723 *Qty: 0 TELAIO POST.CPL-F110HB GIAPPONE- $7,237.83
Location: - Prev | Next Part: 144724 *Qty: 0 TELAIO POST.CPL-F110HB GOLFO- $4,797.60
Location: - Prev | Next Part: 144725 *Qty: 0 TELAIO POST.CPL-F110HB GB E S.AFRICA $9,307.37
Location: - Prev | Next Part: 144726 *Qty: 0 TELAIO POST.CPL-F110HB AUSTRALIA- $4,581.63
Location: 1 Prev | Next Part: 144655 *Qty: 0 TELAIO POST.CPL-F110HB BASE- $4,941.93
Location: 2 Prev | Next Part: 14360024 *Qty: 4 Screw $0.90
Location: 3 Prev | Next Part: 149719 *Qty: 4 Nut Call
Location: 4 Prev | Next Part: 144688 *Qty: 1 R.H. lateral cross member $290.34
Location: 5 Prev | Next Part: 144689 *Qty: 1 L.H. lateral cross member $290.34
Location: 6 Prev | Next Part: 148177 *Qty: 1 Removable cross member -Not for CH $1,677.58
Location: 6 Prev | Next Part: 153054 *Qty: 1 Removable cross member -Valid for CH $4,428.28
Location: 7 Prev | Next Part: 151649 *Qty: 1 Bracket -Valid for cars with generator 154153 -See ref. 1 draw. 53 Call
Location: 8 Prev | Next Part: 148764 *Qty: 1 Bracket -Valid for cars with generator 147220 -See ref. 1 draw. 52 Call
Location: 9 Prev | Next Part: 10519281 *Qty: 2 Washer -Valid for cars with generator 154153 -See ref. 1 draw. 53 Call
Location: 10 Prev | Next Part: 62790300 *Qty: 2 Nut -Valid for cars with generator 154153 -See ref. 1 draw. 53 $0.90
Location: 11 Prev | Next Part: 62765100 *Qty: 11 Plug $0.90

* Quantity shown indicates the number of pieces used in the diagram.
