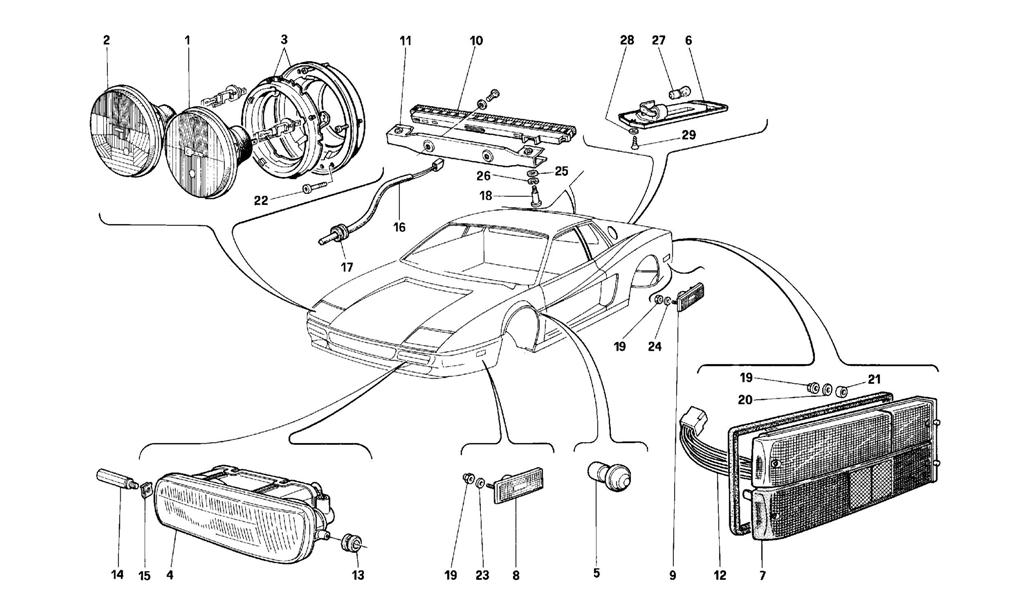

LAMPS

Go to Split View

LAMPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 149637 *Qty: 2 Main beams light unit -Not for USA, CDN, F, J Call
Location: 1 Prev | Next Part: 150749 *Qty: 2 Main beams light unit -Valid for F $153.40
Location: 1 Prev | Next Part: 61610500 *Qty: 2 Main beams light unit -Valid for USA and CDN $43.26
Location: 1 Prev | Next Part: 152698 *Qty: 2 Main beams light unit -Valid for J $149.38
Location: 2 Prev | Next Part: 149638 *Qty: 2 Low beam light unit -Not for USA, CDN, F, J, GD $280.51
Location: 2 Prev | Next Part: 150539 *Qty: 2 Low beam light unit -Valid for GD $286.47
Location: 2 Prev | Next Part: 150748 *Qty: 2 Low beam light unit -Valid for F $224.14
Location: 2 Prev | Next Part: 61610600 *Qty: 2 Low beam light unit -Valid for USA and CDN $42.37
Location: 2 Prev | Next Part: 152699 *Qty: 2 Low beam light unit -Valid for J $192.96
Location: 3 Prev | Next Part: 61646400 *Qty: 1 Ring frame for R.H. main beam lamp Call
Location: 3 Prev | Next Part: 61646500 *Qty: 1 Ring frame for L.H. main beam lamp $117.72
Location: 3 Prev | Next Part: 61646600 *Qty: 1 Ring frame for R.H. low beam lamp $64.44
Location: 3 Prev | Next Part: 61646700 *Qty: 1 Ring frame for L.H. low beam lamp $70.23
Location: 4 Prev | Next Part: 147182 *Qty: 1 R.H. front side-direction - fog light -Valid for USA and CDN Call
Location: 4 Prev | Next Part: 147183 *Qty: 1 L.H. front side-direction - fog light -Valid for USA and CDN Call
Location: 4 Prev | Next Part: 152657 *Qty: 1 R.H. front side-direction - fog light -Valid for F Call
Location: 4 Prev | Next Part: 152658 *Qty: 1 L.H. front side-direction - fog light -Valid for F Call
Location: 4 Prev | Next Part: 149032 *Qty: 1 L.H. front side-direction - fog light -Not for USA, CDN, F Call
Location: 4 Prev | Next Part: 149033 *Qty: 1 R.H. front side-direction - fog light -Not for USA, CDN, F Call
Location: 5 Prev | Next Part: 162902 *Qty: 2 Front side direction light -Valid after stock exhaustion of 61830400 -Not for USA and CDN $21.88
Location: 6 Prev | Next Part: 175204 *Qty: 2 Plate light Call
Location: 7 Prev | Next Part: 149641 *Qty: 1 R.H. rear light -Not for USA, CDN, SA, J Call
Location: 7 Prev | Next Part: 149642 *Qty: 1 L.H. rear light -Not for USA, CDN, SA, J Call
Location: 7 Prev | Next Part: 147184 *Qty: 1 R.H. rear light -Valid for USA, CDN, SA, J Call
Location: 7 Prev | Next Part: 147185 *Qty: 1 L.H. rear light -Valid for USA, CDN, SA, J Call
Location: 8 Prev | Next Part: 147563 *Qty: 2 Front side-marker -Valid for USA and CDN $33.94
Location: 9 Prev | Next Part: 140594 *Qty: 2 Rear side-marker -Valid for USA and CDN $35.03
Location: 10 Prev | Next Part: 63077500 *Qty: 1 Additional stop lights -Valid for USA, CDN, AUS $178.20
Location: 11 Prev | Next Part: 63077300 *Qty: 1 Stop light bracket -Valid for USA, CDN, AUS $37.30
Location: 12 Prev | Next Part: 150190 *Qty: 2 Rear lights cable connection -Not for USA, CDN, SA, J $689.90
Location: 12 Prev | Next Part: 150211 *Qty: 2 Rear lights cable connection -Valid for USA, CDN, SA, J $138.88
Location: 13 Prev | Next Part: 10458187 *Qty: 2 Rubber $6.60
Location: 14 Prev | Next Part: 62771200 *Qty: 4 Pin $22.96
Location: 15 Prev | Next Part: 62770000 *Qty: 4 Spring $0.90
Location: 16 Prev | Next Part: 150059 *Qty: 1 Additional stop light cable connection -Valid for USA, CDN, AUS $20.30
Location: 17 Prev | Next Part: 10396380 *Qty: 1 Cable grommet -Valid for USA, CDN, AUS $0.90
Location: 18 Prev | Next Part: 62771000 *Qty: 2 Screw $4.38
Location: 19 Prev | Next Part: 14084111 *Qty: 20 Nut $0.90
Location: 20 Prev | Next Part: 13577701 *Qty: 12 Washer $0.90
Location: 21 Prev | Next Part: 104339 *Qty: 12 Spacer $5.61
Location: 22 Prev | Next Part: 13273911 *Qty: 12 Screw $0.90
Location: 23 Prev | Next Part: 12638177 *Qty: 4 Washer Superseded
Location: 24 Prev | Next Part: 12624101 *Qty: 4 Washer $0.90
Location: 25 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 26 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 27 Prev | Next Part: 10857790 *Qty: 2 Bulb $2.39
Location: 28 Prev | Next Part: 14496277 *Qty: 4 Washer $1.00
Location: 29 Prev | Next Part: 15687375 *Qty: 4 Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
