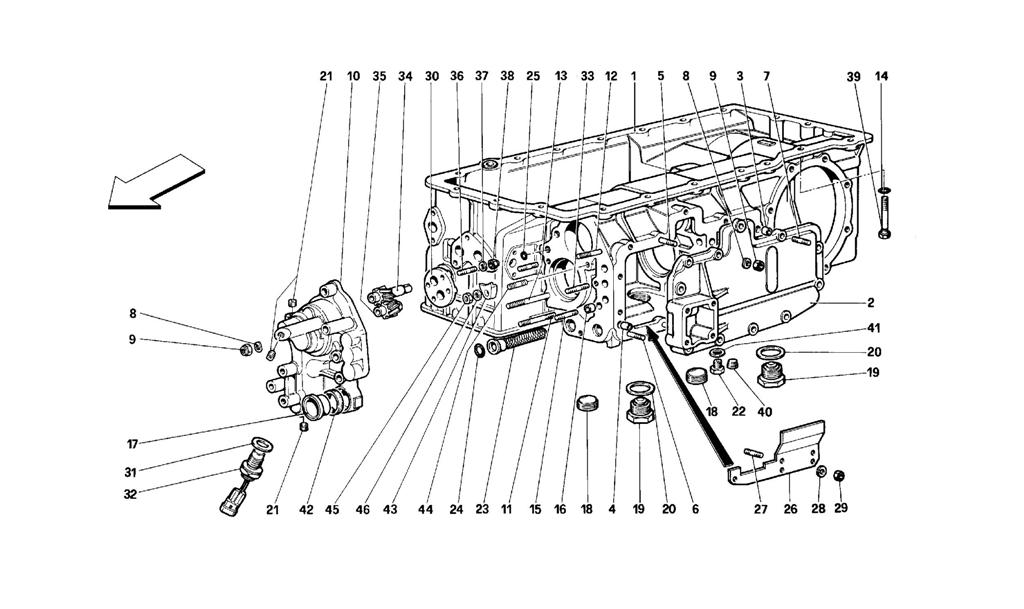

GEARBOX

Go to Split View

GEARBOX

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 144572 *Qty: 0 Complete gearbox -Not as spare part now -Replaced by 153231 $5,925.46
Location: - Prev | Next Part: 153231 *Qty: 0 Complete gearbox $12,621.41
Location: 1 Prev | Next Part: 154805 *Qty: 1 Gearbox -Not as spare parts -With complete gearbox 153231 Call
Location: 1 Prev | Next Part: 123566 *Qty: 1 Complete gearbox casing side cover $196.11
Location: 1 Prev | Next Part: 150888 *Qty: 1 Gearbox -Not as spare parts -With complete gearbox 144572 Call
Location: 2 Prev | Next Part: 123566 *Qty: 1 Gearbox casing side cover -Not as spare parts -With complete side cover $196.11
Location: 3 Prev | Next Part: 100041 *Qty: 1 Dowel $9.60
Location: 4 Prev | Next Part: 10839810 *Qty: 1 Dowel $0.90
Location: 5 Prev | Next Part: 13543524 *Qty: 7 Long stud $0.90
Location: 6 Prev | Next Part: 13543324 *Qty: 4 Short stud $0.90
Location: 7 Prev | Next Part: 13543624 *Qty: 1 Stud on dowel $0.90
Location: 8 Prev | Next Part: 12601374 *Qty: 21 Washer $0.90
Location: 9 Prev | Next Part: 133989 *Qty: 21 Nut $0.90
Location: 10 Prev | Next Part: 154399 *Qty: 1 Front cover -Valid from transmission Nr. 1102 -Valid for 146306 gasket $253.89
Location: 11 Prev | Next Part: 13544424 *Qty: 1 Stud $9.35
Location: 12 Prev | Next Part: 13544224 *Qty: 1 Stud $11.77
Location: 13 Prev | Next Part: 13970524 *Qty: 1 Stud $3.34
Location: 14 Prev | Next Part: 103039 *Qty: 1 Seal ring $1.18
Location: 15 Prev | Next Part: 13543824 *Qty: 2 Stud on dowel Superseded
Location: 16 Prev | Next Part: 100041 *Qty: 2 Dowel $9.60
Location: 17 Prev | Next Part: 103188 *Qty: 1 Bushing $58.83
Location: 18 Prev | Next Part: 10270050 *Qty: 2 Plug for hole $3.04
Location: 19 Prev | Next Part: 100826 *Qty: 2 Gearbox and differential oil drain plug $99.50
Location: 20 Prev | Next Part: 10265160 *Qty: 2 Gasket $2.24
Location: 21 Prev | Next Part: 10269450 *Qty: 3 Plug $35.26
Location: 22 Prev | Next Part: 11903140 *Qty: 1 Plug closing holefor gearbox control rods $2.29
Location: 23 Prev | Next Part: 109726 *Qty: 1 Oil filter $70.57
Location: 24 Prev | Next Part: 101033 *Qty: 1 Seal ring $2.18
Location: 25 Prev | Next Part: 101030 *Qty: 1 Seal ring $1.45
Location: 26 Prev | Next Part: 109781 *Qty: 1 Oil conveyor for 4th and 5th speeds $20.84
Location: 27 Prev | Next Part: 13540724 *Qty: 5 Stud $0.90
Location: 28 Prev | Next Part: 127494 *Qty: 5 Washer $0.90
Location: 29 Prev | Next Part: 134041 *Qty: 5 Nut $0.90
Location: 30 Prev | Next Part: 109717 *Qty: 1 Oil pump cover $204.14
Location: 31 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 32 Prev | Next Part: 149095 *Qty: 1 Speedometer sending unit $281.01
Location: 33 Prev | Next Part: 13543724 *Qty: 4 Stud $1.11
Location: 34 Prev | Next Part: 109722 *Qty: 1 Drive gear $395.90
Location: 35 Prev | Next Part: 109723 *Qty: 1 Driven gear $42.69
Location: 36 Prev | Next Part: 13540924 *Qty: 4 Stud Call
Location: 37 Prev | Next Part: 12601274 *Qty: 4 Washer $0.90
Location: 38 Prev | Next Part: 10725914 *Qty: 4 Nut $0.90
Location: 39 Prev | Next Part: 109997 *Qty: 1 Screw securing gearbox casing to crankcase $83.93
Location: 40 Prev | Next Part: 14326050 *Qty: 1 Plug closing rollers throug hole $1.77
Location: 41 Prev | Next Part: 10260160 *Qty: 1 Gasket $1.15
Location: 42 Prev | Next Part: 146306 *Qty: 1 Gasket -Valid from transmission Nr. 1102 -Valid for 154399 front cover $2.70
Location: 43 Prev | Next Part: 153870 *Qty: 1 Plate -Valid for gearbox Nr. 154805 $34.67
Location: 44 Prev | Next Part: 13543324 *Qty: 1 Stud -Valid for gearbox Nr. 154805 $0.90
Location: 45 Prev | Next Part: 16100821 *Qty: 1 Nut -Valid for gearbox Nr. 154805 $3.57
Location: 46 Prev | Next Part: 127496 *Qty: 1 Washer -Valid for gearbox Nr. 154805 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
