GEARBOX TRANSMISSION

in cart

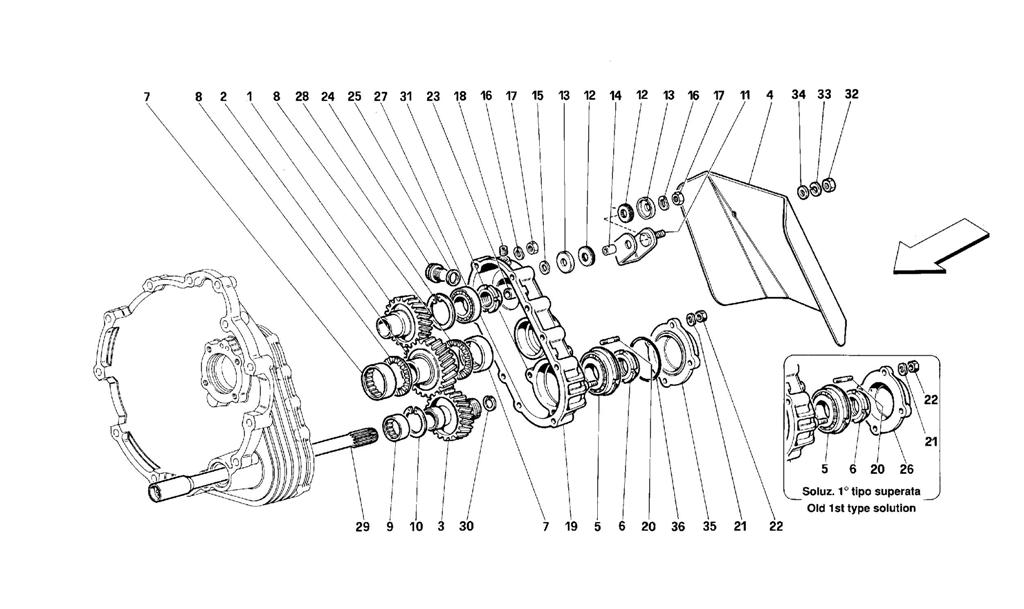

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 149588 *Qty: 1 Drive gear -Valid till engine Nr. 31804 - Not for USA, CDN, AUS, J, CH and not for engines Nr. $1,191.98
Location: 1 Prev | Next Part: 151939 *Qty: 1 Drive gear -Valid from engine Nr. 31805 and for engines Nr. 30580, 30581, 30582, 30583 and 306 $370.16
Location: 1 Prev | Next Part: 151940 *Qty: 1 Drive gear -Valid for USA, CDN, AUS, J, from engine Nr. 32476 -Not for CH $720.79
Location: 1 Prev | Next Part: 152695 *Qty: 1 Drive gear -Valid for CH $346.22
Location: 1 Prev | Next Part: 146569 *Qty: 1 Drive gear -Valid for USA, CDN, AUS, J, till engine Nr. 32475 -Not for CH $343.86
Location: 2 Prev | Next Part: 149589 *Qty: 1 Intermediate gear -Not for USA, CDN, AUS, J, CH $303.94
Location: 2 Prev | Next Part: 146556 *Qty: 1 Intermediate gear -Valid for USA, CDN, AUS, J $179.14
Location: 2 Prev | Next Part: 146581 *Qty: 1 Intermediate gear -Valid for CH $343.17
Location: 3 Prev | Next Part: 149590 *Qty: 1 Driven gear -Not for USA, CDN, AUS, J, CH $213.94
Location: 3 Prev | Next Part: 146555 *Qty: 1 Driven gear -Valid for USA, CDN, AUS, J $209.70
Location: 3 Prev | Next Part: 146575 *Qty: 1 Driven gear -Valid for CH $399.88
Location: 4 Prev | Next Part: 148189 *Qty: 1 Protection plate $238.59
Location: 5 Prev | Next Part: 126223 *Qty: 1 Bearing $619.27
Location: 6 Prev | Next Part: 153068 *Qty: 1 Ring nut $40.00
Location: 7 Prev | Next Part: 104840 *Qty: 2 Roller bearing $53.86
Location: 8 Prev | Next Part: 104841 *Qty: 2 Axial bearing $8.80
Location: 9 Prev | Next Part: 103095 *Qty: 1 Roller bearing $47.05
Location: 10 Prev | Next Part: 103096 *Qty: 1 Lock ring $2.84
Location: 11 Prev | Next Part: 128500 *Qty: 3 Bracket $16.29
Location: 12 Prev | Next Part: 107978 *Qty: 6 Rubber bushing $1.46
Location: 13 Prev | Next Part: 107979 *Qty: 6 Cup $0.90
Location: 14 Prev | Next Part: 107980 *Qty: 3 Distance tube $7.64
Location: 15 Prev | Next Part: 124801 *Qty: 3 Spacer $2.03
Location: 16 Prev | Next Part: 12601374 *Qty: 10 Washer $0.90
Location: 17 Prev | Next Part: 133989 *Qty: 10 Nut $0.90
Location: 18 Prev | Next Part: 10269450 *Qty: 1 Plug $34.19
Location: 19 Prev | Next Part: 146621 *Qty: 1 Clutch housing cover $309.03
Location: 20 Prev | Next Part: 13543324 *Qty: 4 Stud $4.04
Location: 21 Prev | Next Part: 12601374 *Qty: 4 Washer $0.90
Location: 22 Prev | Next Part: 133989 *Qty: 4 Nut $0.90
Location: 23 Prev | Next Part: 109336 *Qty: 1 Oil recovery pipe $71.49
Location: 24 Prev | Next Part: 10275011 *Qty: 1 Oil filler plug $2.30
Location: 25 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 26 Prev | Next Part: 102808 *Qty: 1 Small cover -Old 1st type solution -Replace with 163736+ 152541 Superseded
Location: 27 Prev | Next Part: 112981 *Qty: 1 Bearing $244.35
Location: 28 Prev | Next Part: 11061076 *Qty: 1 Seeger ring $1.98
Location: 29 Prev | Next Part: 151651 *Qty: 1 Propeller shaft $1,677.11
Location: 30 Prev | Next Part: 11058276 *Qty: 1 Lock ring $0.90
Location: 31 Prev | Next Part: 153066 *Qty: 1 Ring nut $50.00
Location: 32 Prev | Next Part: 15896214 *Qty: 3 Nut $0.90
Location: 33 Prev | Next Part: 127494 *Qty: 3 Washer $0.90
Location: 34 Prev | Next Part: 12643724 *Qty: 3 Washer $0.90
Location: 35 Prev | Next Part: 163736 *Qty: 1 Small cover $179.14
Location: 36 Prev | Next Part: 152541 *Qty: 1 OR gasket $2.72

* Quantity shown indicates the number of pieces used in the diagram.
