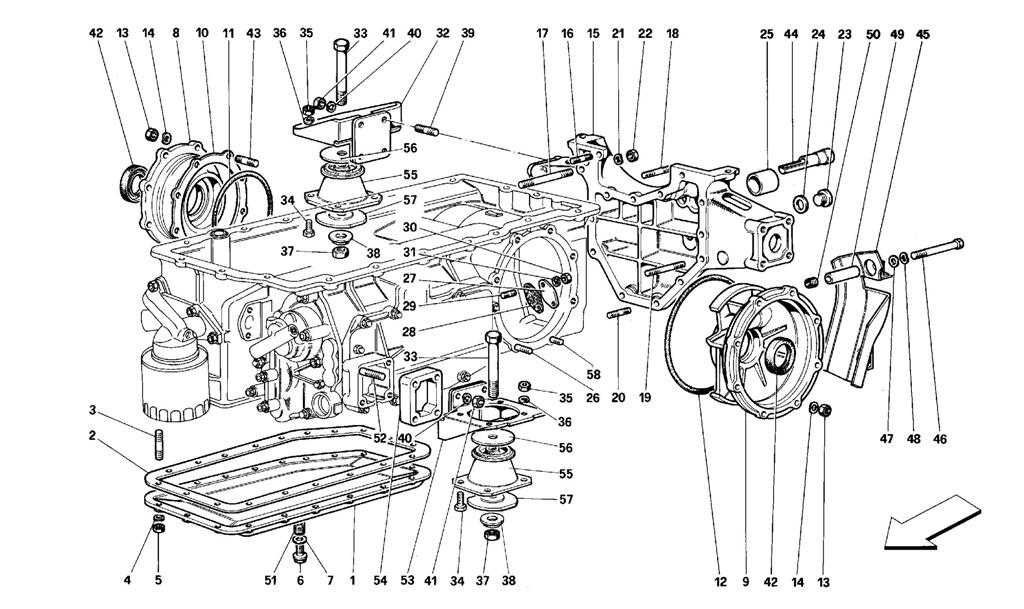

GEARBOX - MOUNTING AND COVERS

Go to Split View

GEARBOX - MOUNTING AND COVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 123562 *Qty: 1 Oil sump complete cover $1,243.58
Location: 1 Prev | Next Part: 123562 *Qty: 1 Cover -Not as spare parts- -With complete cover 123562 $1,243.58
Location: 2 Prev | Next Part: 146189 *Qty: 1 Gasket $25.77
Location: 3 Prev | Next Part: 13541124 *Qty: 18 Stud $8.18
Location: 4 Prev | Next Part: 11197771 *Qty: 18 Washer Superseded
Location: 5 Prev | Next Part: 134041 *Qty: 18 Nut $1.20
Location: 6 Prev | Next Part: 103974 *Qty: 1 Engine oil drain plug $33.62
Location: 7 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 8 Prev | Next Part: 125459 *Qty: 1 Differential R.H. side cover $2,377.15
Location: 9 Prev | Next Part: 156352 *Qty: 1 Differential R.H. side cover Call
Location: 10 Prev | Next Part: 130988 *Qty: 1 Ditto, thickness 1,3 mm. $321.47
Location: 10 Prev | Next Part: 130989 *Qty: 1 Ditto, thickness 1,5 mm. $163.87
Location: 10 Prev | Next Part: 130990 *Qty: 1 Ditto, thickness 1,7 mm. $68.09
Location: 10 Prev | Next Part: 130991 *Qty: 1 Ditto, thickness 1,9 mm. $119.70
Location: 10 Prev | Next Part: 103427 *Qty: 1 Ditto, thickness 1,2 mm. $173.71
Location: 10 Prev | Next Part: 103428 *Qty: 1 Ditto, thickness 1,4 mm. $171.54
Location: 10 Prev | Next Part: 103429 *Qty: 1 Ditto, thickness 1,6 mm. $51.72
Location: 10 Prev | Next Part: 103430 *Qty: 1 Ditto, thickness 1,8 mm. Call
Location: 10 Prev | Next Part: 103431 *Qty: 1 Ditto, thickness 2,0 mm. $62.32
Location: 11 Prev | Next Part: 149135 *Qty: 1 Seal ring $2.45
Location: 12 Prev | Next Part: 109640 *Qty: 1 Seal ring $10.73
Location: 13 Prev | Next Part: 133988 *Qty: 16 Nut $0.90
Location: 14 Prev | Next Part: 12601474 *Qty: 16 Washer $0.90
Location: 15 Prev | Next Part: 153704 *Qty: 1 Intermediate cover -Valid from transmission Nr. 1749 $506.84
Location: 15 Prev | Next Part: 109603 *Qty: 1 Intermediate cover -Valid till the transmission Nr. 1748 $476.28
Location: 16 Prev | Next Part: 13543324 *Qty: 5 Stud $4.04
Location: 17 Prev | Next Part: 13970824 *Qty: 2 Stud $5.56
Location: 18 Prev | Next Part: 13544124 *Qty: 2 Stud $0.90
Location: 19 Prev | Next Part: 13544424 *Qty: 3 Stud $9.35
Location: 20 Prev | Next Part: 13543424 *Qty: 4 Stud $0.90
Location: 21 Prev | Next Part: 12601374 *Qty: 16 Washer $0.90
Location: 22 Prev | Next Part: 133989 *Qty: 16 Nut $0.90
Location: 23 Prev | Next Part: 10275011 *Qty: 1 Oil level inspection plug $2.30
Location: 24 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 25 Prev | Next Part: 109335 *Qty: 1 Bushing between interm. body and clutch housing $19.68
Location: 26 Prev | Next Part: 13546324 *Qty: 7 Stud $2.87
Location: 27 Prev | Next Part: 104772 *Qty: 1 Flange for oil ports $11.22
Location: 28 Prev | Next Part: 146190 *Qty: 1 Gasket $1.34
Location: 29 Prev | Next Part: 11500124 *Qty: 2 Stud $0.90
Location: 30 Prev | Next Part: 134041 *Qty: 2 Nut $1.20
Location: 31 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 32 Prev | Next Part: 105642 *Qty: 2 Engine support $37.70
Location: 33 Prev | Next Part: 11369621 *Qty: 4 Pads security screw $5.88
Location: 34 Prev | Next Part: 15970624 *Qty: 16 Screw $3.88
Location: 35 Prev | Next Part: 133988 *Qty: 16 Nut $0.90
Location: 36 Prev | Next Part: 127497 *Qty: 16 Washer $0.90
Location: 37 Prev | Next Part: 12575915 *Qty: 4 Nut $0.90
Location: 38 Prev | Next Part: 124731 *Qty: 4 Washer $4.34
Location: 39 Prev | Next Part: 13546324 *Qty: 8 Stud $2.87
Location: 40 Prev | Next Part: 127497 *Qty: 16 Washer $0.90
Location: 41 Prev | Next Part: 133988 *Qty: 16 Nut $0.90
Location: 42 Prev | Next Part: 133628 *Qty: 1 R.H. seal ring on side cover $121.20
Location: 42 Prev | Next Part: 141509 *Qty: 1 L.H. seal ring on side cover $121.20
Location: 43 Prev | Next Part: 13546521 *Qty: 8 Stud Call
Location: 44 Prev | Next Part: 109339 *Qty: 1 Oil pipe $29.21
Location: 45 Prev | Next Part: 109683 *Qty: 1 Oil conveyor $54.19
Location: 46 Prev | Next Part: 11032321 *Qty: 2 Screw $0.90
Location: 47 Prev | Next Part: 12643724 *Qty: 2 Washer $0.90
Location: 48 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 49 Prev | Next Part: 109682 *Qty: 2 Conveyor supporting stud $7.14
Location: 50 Prev | Next Part: 13525570 *Qty: 2 Heli-coil $3.27
Location: 51 Prev | Next Part: 111352 *Qty: 1 Heli-coil $192.83
Location: 52 Prev | Next Part: 13546921 *Qty: 8 Stud $0.90
Location: 53 Prev | Next Part: 144114 *Qty: 2 Engine support $17.85
Location: 54 Prev | Next Part: 107530 *Qty: 2 Spacer for pads support $256.38
Location: 55 Prev | Next Part: 155454 *Qty: 4 Rubber pad -As an alternative of 132353 $262.35
Location: 56 Prev | Next Part: 130973 *Qty: 4 Upper plage -For pad 132353 $90.59
Location: 56 Prev | Next Part: 155455 *Qty: 4 Upper plage -For pad 155454 $4.93
Location: 57 Prev | Next Part: 155453 *Qty: 4 Lower plate -For pad 155454 $4.93
Location: 58 Prev | Next Part: 13546024 *Qty: 1 Stud $7.12

* Quantity shown indicates the number of pieces used in the diagram.
