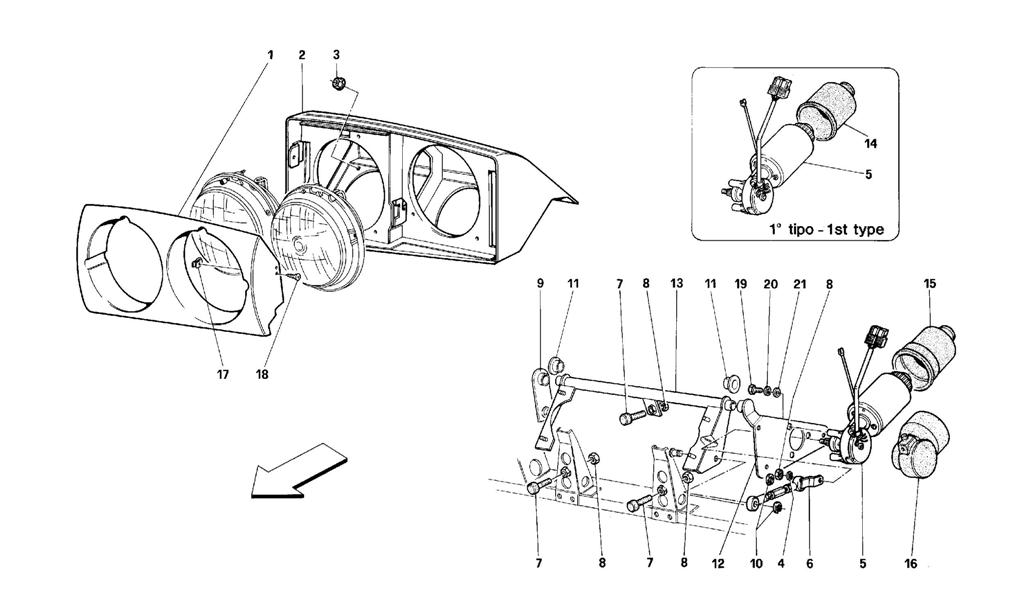

FRONT HEADLIGHT LIFTING DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61527200 *Qty: 1 R.H. headlamp frame Call
Location: 1 Prev | Next Part: 61527300 *Qty: 1 L.H. headlamp frame Call
Location: 2 Prev | Next Part: 61527400 *Qty: 1 Housing for R.H. headlamp flap Call
Location: 2 Prev | Next Part: 61527500 *Qty: 1 Housing for L.H. headlamp flap Call
Location: 3 Prev | Next Part: 13832101 *Qty: 8 Nut $0.90
Location: 4 Prev | Next Part: 10615474 *Qty: 2 Washer $0.90
Location: 5 Prev | Next Part: 149133 *Qty: 1 Lifting motor for L.H. headlamp Call
Location: 5 Prev | Next Part: 149134 *Qty: 1 Lifting motor for R.H. headlamp Call
Location: 6 Prev | Next Part: 61268600 *Qty: 2 Connecting rod Call
Location: 7 Prev | Next Part: 63346800 *Qty: 6 Pin $10.46
Location: 8 Prev | Next Part: 15896214 *Qty: 10 Nut $0.90
Location: 9 Prev | Next Part: 61556000 *Qty: 1 R.H. bracket $14.28
Location: 9 Prev | Next Part: 61556100 *Qty: 1 L.H. bracket $8.32
Location: 10 Prev | Next Part: 11087876 *Qty: 6 Spring ring $0.90
Location: 11 Prev | Next Part: 61575500 *Qty: 4 Bushing $38.04
Location: 12 Prev | Next Part: 61531200 *Qty: 1 R.H. support bracket $15.05
Location: 12 Prev | Next Part: 61531300 *Qty: 1 L.H. support bracket $19.95
Location: 13 Prev | Next Part: 61531000 *Qty: 1 Linkage for R.H. lamp $109.68
Location: 13 Prev | Next Part: 61531100 *Qty: 1 Linkage for L.H. lamp $168.76
Location: 14 Prev | Next Part: 149039 *Qty: 2 Protection for motor -1st type- $2.39
Location: 15 Prev | Next Part: 60331402 *Qty: 2 Upper protection for motor -2nd type $38.33
Location: 16 Prev | Next Part: 60331204 *Qty: 1 R.H. lower protection for motor -2nd type $21.36
Location: 16 Prev | Next Part: 60331303 *Qty: 1 L.H. lower protection for motor -2nd type $22.02
Location: 17 Prev | Next Part: 60695800 *Qty: 4 Spring $1.48
Location: 18 Prev | Next Part: 15914870 *Qty: 4 Screw $0.99
Location: 19 Prev | Next Part: 10902221 *Qty: 6 Screw $1.27
Location: 20 Prev | Next Part: 10615474 *Qty: 6 Washer $0.90
Location: 21 Prev | Next Part: 14496424 *Qty: 6 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
