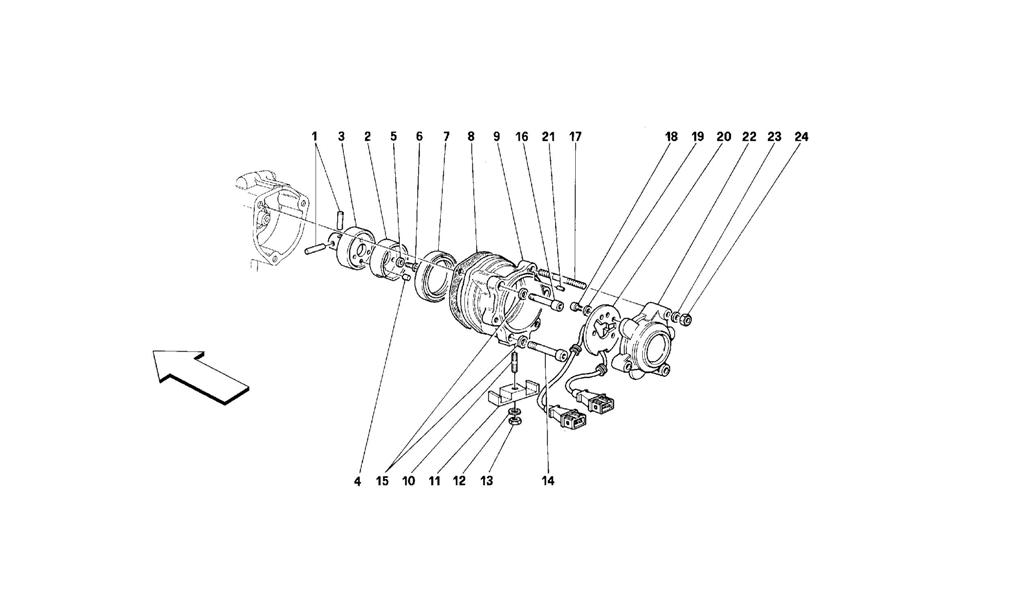

ENGINE IGNITION

Go to Split View

ENGINE IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 132355 *Qty: 2 Pin $61.34
Location: 3 Prev | Next Part: 142864 *Qty: 1 Camshaft joint $121.06
Location: 4 Prev | Next Part: 10486110 *Qty: 1 Pin $12.74
Location: 5 Prev | Next Part: 12604070 *Qty: 3 Washer $0.90
Location: 6 Prev | Next Part: 10374721 *Qty: 3 Screw $0.90
Location: 7 Prev | Next Part: 149917 *Qty: 1 Ring $23.36
Location: 8 Prev | Next Part: 150198 *Qty: 1 Gasket $17.61
Location: 9 Prev | Next Part: 148790 *Qty: 1 Phase sensor support $76.05
Location: 10 Prev | Next Part: 11001224 *Qty: 1 Stud bolt $1.16
Location: 11 Prev | Next Part: 146654 *Qty: 1 Support $90.39
Location: 12 Prev | Next Part: 11199279 *Qty: 1 Washer $0.90
Location: 13 Prev | Next Part: 15896470 *Qty: 1 Nut $0.90
Location: 14 Prev | Next Part: 14305674 *Qty: 2 Screw $0.90
Location: 15 Prev | Next Part: 12604279 *Qty: 3 Washer $0.90
Location: 16 Prev | Next Part: 14305521 *Qty: 1 Screw $0.90
Location: 17 Prev | Next Part: 13539824 *Qty: 3 Stud bolt $12.04
Location: 18 Prev | Next Part: 14418131 *Qty: 2 Screw $0.90
Location: 19 Prev | Next Part: 12600479 *Qty: 2 Washer Superseded
Location: 20 Prev | Next Part: 146233 *Qty: 1 Complete phase sensor $951.52
Location: 21 Prev | Next Part: 10331010 *Qty: 1 Pin $0.90
Location: 22 Prev | Next Part: 146232 *Qty: 1 Cover $36.17
Location: 23 Prev | Next Part: 10519377 *Qty: 3 Washer $0.90
Location: 24 Prev | Next Part: 169180 *Qty: 3 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
