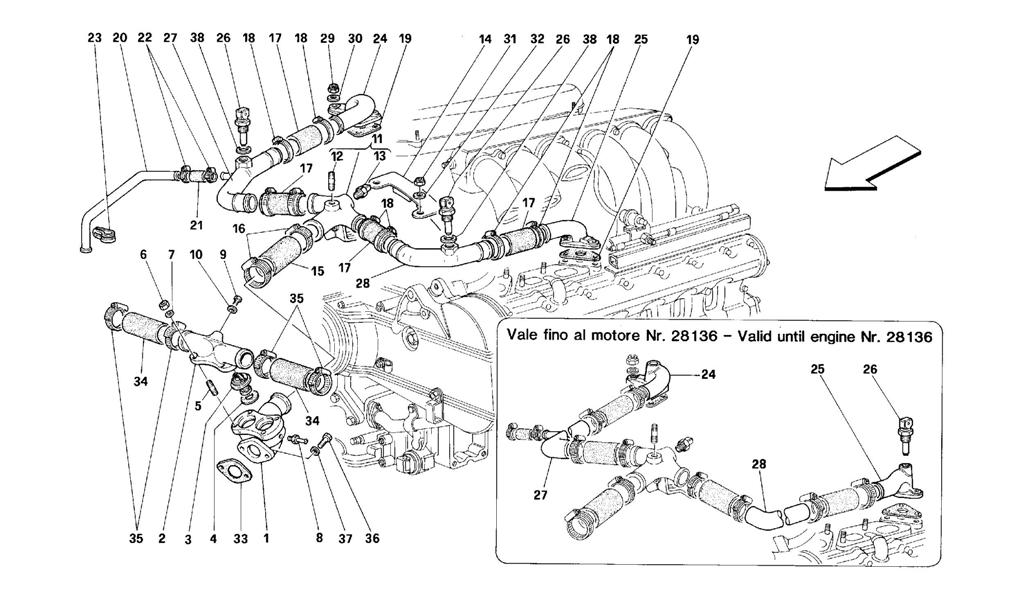

ENGINE COOLING

Go to Split View

ENGINE COOLING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 124145 *Qty: 1 Thermostat body $296.31
Location: 2 Prev | Next Part: 124144 *Qty: 1 Thermostat body cover $193.55
Location: 3 Prev | Next Part: 165473 *Qty: 2 Thermostat $165.00
Location: 4 Prev | Next Part: 105192 *Qty: 2 Gasket $20.77
Location: 5 Prev | Next Part: 11500024 *Qty: 4 Stud $1.06
Location: 6 Prev | Next Part: 15896214 *Qty: 4 Nut $0.90
Location: 7 Prev | Next Part: 12601274 *Qty: 4 Washer $0.90
Location: 8 Prev | Next Part: 112030 *Qty: 1 Connection for breather $8.97
Location: 9 Prev | Next Part: 130282 *Qty: 1 Connection for drain $8.91
Location: 10 Prev | Next Part: 10297760 *Qty: 1 Gasket $0.90
Location: 11 Prev | Next Part: 145213 *Qty: 1 Manifold, assy $314.99
Location: 12 Prev | Next Part: 11499921 *Qty: 1 Stud Superseded
Location: 13 Prev | Next Part: 148677 *Qty: 1 Thermistor $193.93
Location: 14 Prev | Next Part: 148535 *Qty: 1 Protection $14.79
Location: 15 Prev | Next Part: 148160 *Qty: 1 Rubber pipe $137.11
Location: 16 Prev | Next Part: 13000690 *Qty: 2 Clamp Call
Location: 17 Prev | Next Part: 121166 *Qty: 4 Sleeve $16.68
Location: 18 Prev | Next Part: 12173890 *Qty: 8 Clamp $2.54
Location: 19 Prev | Next Part: 134952 *Qty: 2 Gasket $4.91
Location: 20 Prev | Next Part: 152875 *Qty: 1 Water delivery pipe Call
Location: 21 Prev | Next Part: 124961 *Qty: 1 Rubber pipe $12.76
Location: 22 Prev | Next Part: 13000390 *Qty: 2 Clamp $0.97
Location: 23 Prev | Next Part: 145661 *Qty: 1 Bracket $5.15
Location: 24 Prev | Next Part: 150908 *Qty: 1 R.H. union -Valid from engine Nr. 28137 $208.03
Location: 25 Prev | Next Part: 149144 *Qty: 1 L.H. union -Valid till engine Nr. 28136 $420.25
Location: 25 Prev | Next Part: 150909 *Qty: 1 L.H. union -Valid from engine Nr. 28137 $209.70
Location: 26 Prev | Next Part: 125769 *Qty: 2 Water temperature sensor $31.55
Location: 27 Prev | Next Part: 150910 *Qty: 1 R.H. pipe -Valid from engine Nr. 28137 $119.54
Location: 27 Prev | Next Part: 149136 *Qty: 1 R.H. pipe -Valid till engine Nr. 28136 $92.37
Location: 28 Prev | Next Part: 149137 *Qty: 1 L.H. pipe -Valid till engine Nr. 28136 $63.16
Location: 28 Prev | Next Part: 150911 *Qty: 1 L.H. pipe -Valid from engine Nr. 28137 $96.27
Location: 29 Prev | Next Part: 102741 *Qty: 6 Nut $0.90
Location: 30 Prev | Next Part: 12601274 *Qty: 6 Washer $0.90
Location: 31 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 32 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 33 Prev | Next Part: 134963 *Qty: 1 Gasket $9.19
Location: 34 Prev | Next Part: 148649 *Qty: 2 Rubber pipe $17.98
Location: 35 Prev | Next Part: 13000690 *Qty: 4 Clamp Call
Location: 36 Prev | Next Part: 10903421 *Qty: 2 Screw $0.90
Location: 37 Prev | Next Part: 11193279 *Qty: 2 Washer $0.90
Location: 38 Prev | Next Part: 10296160 *Qty: 2 Gasket -Valid from engine Nr. 28137 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
