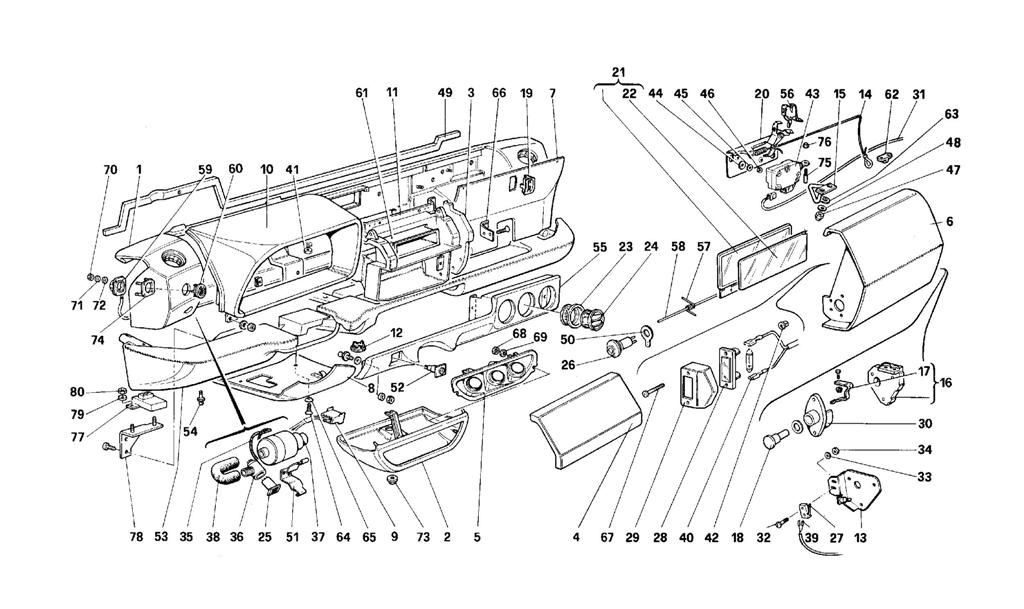

DASHBOARD

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 654798.. *Qty: 1 Dash board assembly (without instrument seat) -Valid for GD Call
Location: - Prev | Next Part: 634584.. *Qty: 1 Dash board assembly (with instrument seat) -Not for GD Call
Location: - Prev | Next Part: 634585.. *Qty: 1 Dash board assembly (without instrument seat) -Not for GD Call
Location: - Prev | Next Part: 634655.. *Qty: 1 Dash board assembly (with instrument seat) -Valid for GD Call
Location: 1 Prev | Next Part: 630791.. *Qty: 1 Dash board frame -Not for GD Call
Location: 1 Prev | Next Part: 631089.. *Qty: 1 Dash board frame -Vale for GD Call
Location: 2 Prev | Next Part: 636996.. *Qty: 1 Instruments panel -Valid from car Ass. Nr. 14460 Call
Location: 2 Prev | Next Part: 634546.. *Qty: 1 Instruments panel -Valid till car Ass. Nr. 14459 Call
Location: 3 Prev | Next Part: 630853.. *Qty: 1 R.H. side panel -Not for GD Call
Location: 3 Prev | Next Part: 631070.. *Qty: 1 L.H. side panel -Valid for GD Call
Location: 4 Prev | Next Part: 631071.. *Qty: 1 Radio box panel -Valid for GD Call
Location: 4 Prev | Next Part: 630787.. *Qty: 1 Radio box panel -Not for GD Call
Location: 5 Prev | Next Part: 63924100 *Qty: 1 Instruments plate -Valid from car Ass. Nr. 14460 -Not for GD Call
Location: 5 Prev | Next Part: 63116300 *Qty: 1 Instruments plate -Valid till car Ass. Nr. 14459 -Not for GD $64.44
Location: 5 Prev | Next Part: 63462700 *Qty: 1 Instruments plate -Valid for GD Call
Location: 6 Prev | Next Part: 634552.. *Qty: 1 Glove box Call
Location: 7 Prev | Next Part: 634548.. *Qty: 1 Rear cover for glove box Call
Location: 8 Prev | Next Part: 639247.. *Qty: 1 Steering column cover -Valid from car Ass. Nr. 14460 -Not for USA Call
Location: 8 Prev | Next Part: 634103.. *Qty: 1 Steering column cover -Valid for USA Call
Location: 8 Prev | Next Part: 634130.. *Qty: 1 Steering column cover -Valid till car Ass. Nr. 14459 -Not for USA Call
Location: 9 Prev | Next Part: 119430 *Qty: 1 Sensor cable for internal temperature $14.00
Location: 10 Prev | Next Part: 630793.. *Qty: 1 Housing instruments Call
Location: 11 Prev | Next Part: 63079200 *Qty: 1 Air vent frame work -Not for GD $1,536.53
Location: 11 Prev | Next Part: 63106700 *Qty: 1 Air vent frame work -Vale for GD $1,536.53
Location: 12 Prev | Next Part: 61503600 *Qty: 2 Frame -For GD Q.ty 1 $0.90
Location: 13 Prev | Next Part: 61554500 *Qty: 1 Bracket -Not for GD- $17.69
Location: 13 Prev | Next Part: 61534600 *Qty: 1 Bracket -Valid for GD- $4.10
Location: 14 Prev | Next Part: 61554400 *Qty: 1 Safety cable $25.76
Location: 15 Prev | Next Part: 61554600 *Qty: 1 Lock striker $105.24
Location: 16 Prev | Next Part: 61522400 *Qty: 1 R.H. dashboard box hinge $10.51
Location: 16 Prev | Next Part: 61522500 *Qty: 1 L.H. dashboard box hinge Call
Location: 17 Prev | Next Part: 61522000 *Qty: 2 Spring $1.66
Location: 18 Prev | Next Part: 61522800 *Qty: 2 Pin Call
Location: 19 Prev | Next Part: 61554700 *Qty: 1 Frame $18.04
Location: 20 Prev | Next Part: 61545700 *Qty: 1 Lock braket -Valid for GD $82.14
Location: 20 Prev | Next Part: 61545800 *Qty: 1 Lock braket -Not for GD $147.79
Location: 21 Prev | Next Part: 615774.. *Qty: 1 Mirror, complete Call
Location: 22 Prev | Next Part: 61523200 *Qty: 1 Courtesy mirror $29.43
Location: 23 Prev | Next Part: 61528500 *Qty: 3 Air seat $5.78
Location: 24 Prev | Next Part: 61528600 *Qty: 3 Air vent $19.96
Location: 25 Prev | Next Part: 61079100 *Qty: 1 Sensor for internal temperature Call
Location: 26 Prev | Next Part: 61523600 *Qty: 1 Socket $25.57
Location: 27 Prev | Next Part: 61523700 *Qty: 1 Switch $190.94
Location: 28 Prev | Next Part: 61647200 *Qty: 2 Dash board box lamp $78.40
Location: 29 Prev | Next Part: 61523800 *Qty: 2 Dash board box lamp frame $47.12
Location: 30 Prev | Next Part: 61522600 *Qty: 1 R.H. mobile hinge Call
Location: 30 Prev | Next Part: 63403500 *Qty: 1 L.H. mobile hinge $149.02
Location: 31 Prev | Next Part: 124410 *Qty: 1 Socket cables $12.45
Location: 32 Prev | Next Part: 61524100 *Qty: 2 Screw $3.37
Location: 33 Prev | Next Part: 61524200 *Qty: 2 Washer $0.90
Location: 34 Prev | Next Part: 61524300 *Qty: 2 Nut $0.90
Location: 35 Prev | Next Part: 120065 *Qty: 1 O-ring $1.88
Location: 36 Prev | Next Part: 61079200 *Qty: 1 Box sensor $5.95
Location: 37 Prev | Next Part: 61983500 *Qty: 1 Suction fan for sensor $215.38
Location: 38 Prev | Next Part: 124039 *Qty: 1 Pipe from suction fan to sensor $18.92
Location: 39 Prev | Next Part: 124409 *Qty: 1 Switch cables $26.80
Location: 40 Prev | Next Part: 124411 *Qty: 1 Lamp cables $12.60
Location: 41 Prev | Next Part: 14084111 *Qty: 4 Nut $0.90
Location: 42 Prev | Next Part: 14115680 *Qty: 4 Nut screw $0.90
Location: 43 Prev | Next Part: 61523100 *Qty: 1 Lock magnet Call
Location: 44 Prev | Next Part: 12643724 *Qty: 2 Washer $0.90
Location: 45 Prev | Next Part: 10519424 *Qty: 2 Washer Call
Location: 46 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 47 Prev | Next Part: 14051849 *Qty: 2 Nut $0.90
Location: 48 Prev | Next Part: 161011 *Qty: 2 Washer $0.90
Location: 49 Prev | Next Part: 61554300 *Qty: 1 Dashboard support structure -Not for GD $591.84
Location: 49 Prev | Next Part: 63108600 *Qty: 1 Dashboard support structure -Valid for GD Call
Location: 50 Prev | Next Part: 60701400 *Qty: 1 Negative terminal $5.95
Location: 51 Prev | Next Part: 61089500 *Qty: 1 Bracket $4.90
Location: 52 Prev | Next Part: 149763 *Qty: 1 Parking lights switch -Not for cars with ABS $354.41
Location: 52 Prev | Next Part: 153041 *Qty: 1 ABS cut out push -Not for USA, CDN and AUS $31.91
Location: 53 Prev | Next Part: 636998.. *Qty: 1 Knee protection -Valid from car Ass. Nr. 14460 -Not for USA and GD Call
Location: 53 Prev | Next Part: 634525.. *Qty: 1 Knee protection -Valid till car Ass. Nr. 14459 -Not for USA and GD Call
Location: 53 Prev | Next Part: 634102.. *Qty: 1 Knee protection -Valid for USA Call
Location: 53 Prev | Next Part: 634127.. *Qty: 1 Knee protection -Valid for GD Call
Location: 54 Prev | Next Part: 60084407 *Qty: 1 Button $8.11
Location: 55 Prev | Next Part: 631068.. *Qty: 1 Lower cover -Not for cars with ABS -Valid for GD Call
Location: 55 Prev | Next Part: 634603.. *Qty: 1 Lower cover -Valid for cars with ABS -Not for USA and CDN -Not for GD Call
Location: 55 Prev | Next Part: 634604.. *Qty: 1 Lower cover -Valid for USA and CDN Call
Location: 55 Prev | Next Part: 634605.. *Qty: 1 Lower cover -Valid for GD with ABS -Not for AUS Call
Location: 55 Prev | Next Part: 634606.. *Qty: 1 Lower cover -Valid for AUS with ABS Call
Location: 55 Prev | Next Part: 630790.. *Qty: 1 Lower cover -Not for cars with ABS -Not for GD Call
Location: 56 Prev | Next Part: 61545600 *Qty: 1 Glove box lock $79.99
Location: 57 Prev | Next Part: 61577500 *Qty: 1 Clip $1.49
Location: 58 Prev | Next Part: 61577600 *Qty: 1 Pin $1.98
Location: 59 Prev | Next Part: 146216 *Qty: 2 Tweeter loudspeaker Call
Location: 60 Prev | Next Part: 63032800 *Qty: 2 Tweeter grill protection Call
Location: 61 Prev | Next Part: 61541600 *Qty: 1 Radio holder $19.81
Location: 62 Prev | Next Part: 63435000 *Qty: 1 Hook $1.10
Location: 63 Prev | Next Part: 12642807 *Qty: 2 Washer $0.90
Location: 64 Prev | Next Part: 15690778 *Qty: 4 Screw $0.90
Location: 65 Prev | Next Part: 13338047 *Qty: 4 Washer $0.90
Location: 66 Prev | Next Part: 63422600 *Qty: 1 Bracket arrester box $17.00
Location: 67 Prev | Next Part: 15908678 *Qty: 2 Screw $0.90
Location: 68 Prev | Next Part: 14084111 *Qty: 2 Nut $0.90
Location: 69 Prev | Next Part: 12624101 *Qty: 2 Washer $0.90
Location: 70 Prev | Next Part: 16101711 *Qty: 8 Nut $0.90
Location: 71 Prev | Next Part: 10615170 *Qty: 8 Washer $0.95
Location: 72 Prev | Next Part: 12639401 *Qty: 8 Washer $0.90
Location: 73 Prev | Next Part: 14039714 *Qty: 8 Nut $0.90
Location: 74 Prev | Next Part: 63422700 *Qty: 2 Plate $40.82
Location: 75 Prev | Next Part: 63422500 *Qty: 1 Pin $5.44
Location: 76 Prev | Next Part: 14084011 *Qty: 1 Nut $0.90
Location: 77 Prev | Next Part: 156086 *Qty: 1 ABS cut out central unit $422.00
Location: 78 Prev | Next Part: 153983 *Qty: 1 Bracket $22.61
Location: 79 Prev | Next Part: 14496277 *Qty: 2 Washer $1.00
Location: 80 Prev | Next Part: 10794011 *Qty: 2 Nut $0.90

* Quantity shown indicates the number of pieces used in the diagram.
