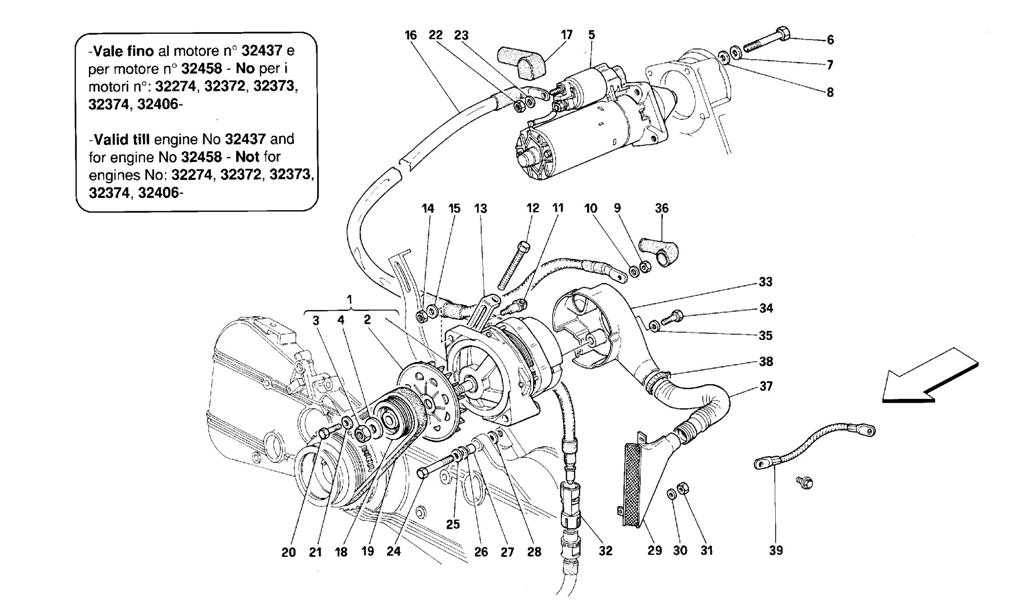

CURRENT GENERATOR -VALID TILL ENGINE NO ...-

Go to Split View

CURRENT GENERATOR -VALID TILL ENGINE NO ...-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 147220 *Qty: 1 Complete generator $614.65
Location: 2 Prev | Next Part: 152684 *Qty: 1 Fan $104.61
Location: 3 Prev | Next Part: 152687 *Qty: 1 Nut $72.85
Location: 4 Prev | Next Part: 152686 *Qty: 1 Washer $0.90
Location: 5 Prev | Next Part: 145489 *Qty: 1 Starting motor $834.96
Location: 6 Prev | Next Part: 16045621 *Qty: 3 Screw Superseded
Location: 7 Prev | Next Part: 11198070 *Qty: 3 Washer Superseded
Location: 8 Prev | Next Part: 10519624 *Qty: 3 Washer $0.90
Location: 9 Prev | Next Part: 147985 *Qty: 1 Nut $0.90
Location: 10 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90
Location: 11 Prev | Next Part: 123193 *Qty: 1 Pin $164.84
Location: 12 Prev | Next Part: 125668 *Qty: 1 Screw $1.81
Location: 13 Prev | Next Part: 123173 *Qty: 1 Generator bracket $24.45
Location: 14 Prev | Next Part: 16104121 *Qty: 1 Nut Superseded
Location: 15 Prev | Next Part: 14496501 *Qty: 1 Washer $0.90
Location: 16 Prev | Next Part: 147205 *Qty: 1 Complete cable from generator to starting motor $224.12
Location: 17 Prev | Next Part: 124683 *Qty: 1 Cap $0.90
Location: 18 Prev | Next Part: 147286 *Qty: 1 Pulley $97.12
Location: 19 Prev | Next Part: 199820 *Qty: 1 POLY V (PIRELLI) belt for generator $15.34
Location: 20 Prev | Next Part: 15970921 *Qty: 1 Screw $0.90
Location: 21 Prev | Next Part: 127497 *Qty: 1 Washer $0.90
Location: 22 Prev | Next Part: 147985 *Qty: 1 Nut $0.90
Location: 23 Prev | Next Part: 12625224 *Qty: 1 Washer $0.90
Location: 24 Prev | Next Part: 15971821 *Qty: 1 Screw $1.65
Location: 25 Prev | Next Part: 127497 *Qty: 1 Washer $0.90
Location: 26 Prev | Next Part: 12638601 *Qty: 1 Washer $0.90
Location: 27 Prev | Next Part: 123172 *Qty: 1 Bush $2.61
Location: 28 Prev | Next Part: 121678 *Qty: 1 Washer $8.81
Location: 29 Prev | Next Part: 149347 *Qty: 1 Conveyor $22.60
Location: 30 Prev | Next Part: 10615476 *Qty: 1 Washer $0.90
Location: 31 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 32 Prev | Next Part: 198627 *Qty: 1 Connector $128.71
Location: 33 Prev | Next Part: 147361 *Qty: 1 Air conveyor $139.42
Location: 34 Prev | Next Part: 149258 *Qty: 1 Screw $0.93
Location: 35 Prev | Next Part: 12601474 *Qty: 1 Washer $0.90
Location: 36 Prev | Next Part: 125329 *Qty: 1 Cap $3.90
Location: 37 Prev | Next Part: 149870 *Qty: 1 Delivery pipe Call
Location: 38 Prev | Next Part: 13000690 *Qty: 1 Clamp Call
Location: 39 Prev | Next Part: 155073 *Qty: 1 Engine ground $13.84

* Quantity shown indicates the number of pieces used in the diagram.
