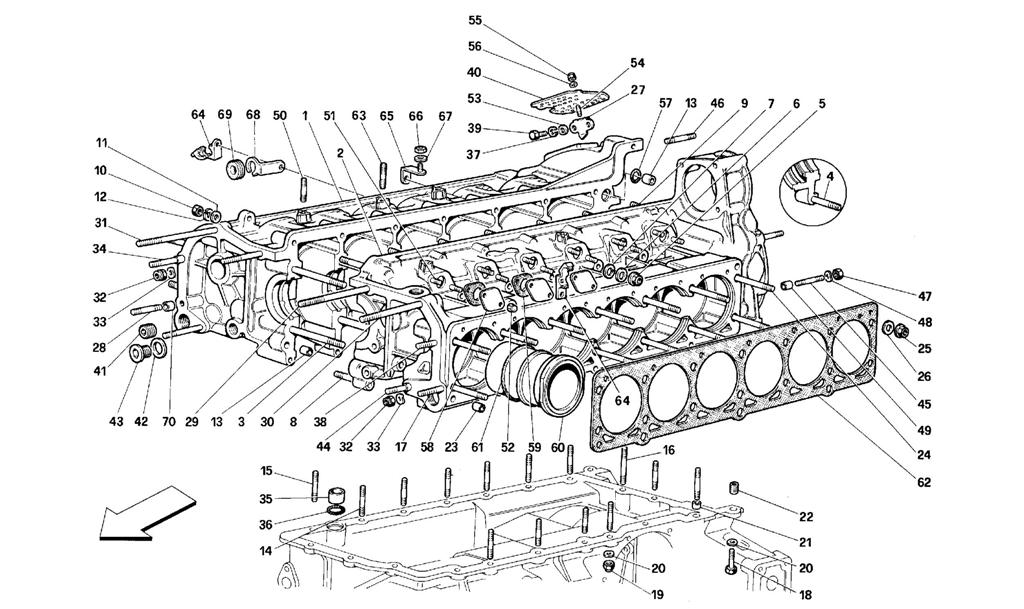

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 137712 *Qty: 1 Crankcase, complete Call
Location: 1 Prev | Next Part: 141384 *Qty: 1 R.H. semi-crankcase -Not as spare parts -With crankcase complete Call
Location: 2 Prev | Next Part: 143849 *Qty: 1 L.H. semi-crankcase -Not as spare parts -With crankcase complete Call
Location: 3 Prev | Next Part: 102687 *Qty: 14 Semi-crankcase securing stud $45.69
Location: 4 Prev | Next Part: 109539 *Qty: 1 Semi-crankcase securing stud $18.18
Location: 5 Prev | Next Part: 102693 *Qty: 15 Nut $29.80
Location: 6 Prev | Next Part: 102694 *Qty: 15 Washer $1.34
Location: 7 Prev | Next Part: 10517171 *Qty: 15 Washer $0.90
Location: 8 Prev | Next Part: 13546635 *Qty: 3 Semi-crankcase securing stud $2.39
Location: 9 Prev | Next Part: 102689 *Qty: 9 Semi-crankcase securing stud $14.28
Location: 9 Prev | Next Part: 102690 *Qty: 1 Semi-crankcase securing stud $13.25
Location: 10 Prev | Next Part: 133988 *Qty: 13 Nut $0.90
Location: 11 Prev | Next Part: 102695 *Qty: 13 Washer $3.27
Location: 12 Prev | Next Part: 127497 *Qty: 13 Washer $0.90
Location: 13 Prev | Next Part: 102692 *Qty: 2 Semi-crankcase securing stud $6.45
Location: 14 Prev | Next Part: 13449624 *Qty: 12 Stud securing crankcase to gearbox $12.05
Location: 15 Prev | Next Part: 13449824 *Qty: 1 Stud $19.35
Location: 16 Prev | Next Part: 13450124 *Qty: 2 Stud $24.10
Location: 17 Prev | Next Part: 13543821 *Qty: 1 Stud Call
Location: 18 Prev | Next Part: 11306934 *Qty: 2 Screw $0.90
Location: 19 Prev | Next Part: 107314 *Qty: 2 Nut $6.57
Location: 19 Prev | Next Part: 102742 *Qty: 13 Nut $0.90
Location: 20 Prev | Next Part: 12601474 *Qty: 18 Washer $0.90
Location: 21 Prev | Next Part: 100052 *Qty: 1 Dowel $2.77
Location: 22 Prev | Next Part: 13526070 *Qty: 3 Heli-coil $4.44
Location: 23 Prev | Next Part: 152327 *Qty: 4 Dowel $8.50
Location: 24 Prev | Next Part: 130646 *Qty: 28 Cyl. heads securing studs $30.94
Location: 25 Prev | Next Part: 126646 *Qty: 28 Nut $32.81
Location: 26 Prev | Next Part: 141064 *Qty: 28 Washer $2.21
Location: 27 Prev | Next Part: 124676 *Qty: 1 Plate with timing mark $3.75
Location: 28 Prev | Next Part: 13543624 *Qty: 1 Stud on dowel $0.90
Location: 29 Prev | Next Part: 13970924 *Qty: 1 Stud $8.83
Location: 30 Prev | Next Part: 13970424 *Qty: 1 Stud $19.09
Location: 31 Prev | Next Part: 13970524 *Qty: 1 Stud $3.23
Location: 32 Prev | Next Part: 101139 *Qty: 10 Nut $0.90
Location: 33 Prev | Next Part: 12601374 *Qty: 10 Washer $0.90
Location: 34 Prev | Next Part: 13544321 *Qty: 3 Stud Superseded
Location: 35 Prev | Next Part: 121201 *Qty: 1 Dowel $4.75
Location: 36 Prev | Next Part: 123263 *Qty: 1 Seal ring $5.58
Location: 37 Prev | Next Part: 127493 *Qty: 2 Washer Superseded
Location: 38 Prev | Next Part: 13543424 *Qty: 1 Stud $0.90
Location: 39 Prev | Next Part: 10977624 *Qty: 2 Screw $0.90
Location: 40 Prev | Next Part: 147816 *Qty: 1 Cover for flywheel inspection slot $55.02
Location: 41 Prev | Next Part: 10269850 *Qty: 1 Plug for lubricating ports $2.30
Location: 41 Prev | Next Part: 14326050 *Qty: 2 Plug for lubricating ports $1.72
Location: 41 Prev | Next Part: 14326150 *Qty: 1 Plug for lubricating ports $0.90
Location: 42 Prev | Next Part: 10264560 *Qty: 2 Gasket $0.90
Location: 43 Prev | Next Part: 10304611 *Qty: 2 Plug $3.39
Location: 44 Prev | Next Part: 13543724 *Qty: 1 Stud on dowel $0.90
Location: 45 Prev | Next Part: 13544224 *Qty: 2 Stud on dowel $11.41
Location: 46 Prev | Next Part: 13544124 *Qty: 3 Stud $0.90
Location: 47 Prev | Next Part: 16100821 *Qty: 5 Nut $3.46
Location: 48 Prev | Next Part: 12601374 *Qty: 5 Washer $0.90
Location: 49 Prev | Next Part: 102704 *Qty: 2 Dowel $2.18
Location: 50 Prev | Next Part: 13541124 *Qty: 2 Stud $8.18
Location: 51 Prev | Next Part: 11500020 *Qty: 24 Stud $0.90
Location: 52 Prev | Next Part: 100044 *Qty: 24 Nut $0.90
Location: 53 Prev | Next Part: 10519377 *Qty: 2 Washer $0.90
Location: 54 Prev | Next Part: 11500024 *Qty: 2 Stud for cover of flywheel inspection slot $1.06
Location: 55 Prev | Next Part: 100044 *Qty: 2 Nut $0.90
Location: 56 Prev | Next Part: 12601274 *Qty: 2 Washer $0.90
Location: 57 Prev | Next Part: 102743 *Qty: 1 Seal ring $1.28
Location: 58 Prev | Next Part: 102698 *Qty: 12 Cover $27.47
Location: 59 Prev | Next Part: 150191 *Qty: 12 Gasket $3.51
Location: 60 Prev | Next Part: 138519 *Qty: 12 Cylinder liner $463.77
Location: 61 Prev | Next Part: 136902 *Qty: 12 Seal ring $19.35
Location: 62 Prev | Next Part: 151532 *Qty: 2 Gasket $512.63
Location: 63 Prev | Next Part: 13541324 *Qty: 2 Stud $1.11
Location: 64 Prev | Next Part: 129544 *Qty: 4 Spring -For cars with generator 147220 Q.ty 2-See ref. 1 draw. 52 $2.31
Location: 65 Prev | Next Part: 149694 *Qty: 1 Bracket $7.67
Location: 66 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 67 Prev | Next Part: 12601274 *Qty: 1 Washer $0.90
Location: 68 Prev | Next Part: 124220 *Qty: 1 Bracket -Valid for cars with generator 147220 -See ref. 1 draw. 52 $143.31
Location: 69 Prev | Next Part: 10396580 *Qty: 1 Cable grommet -Valid for cars with generator 147220 -See ref. 1 draw. 52 $8.20
Location: 70 Prev | Next Part: 102704 *Qty: 2 Dowel $2.18

* Quantity shown indicates the number of pieces used in the diagram.
