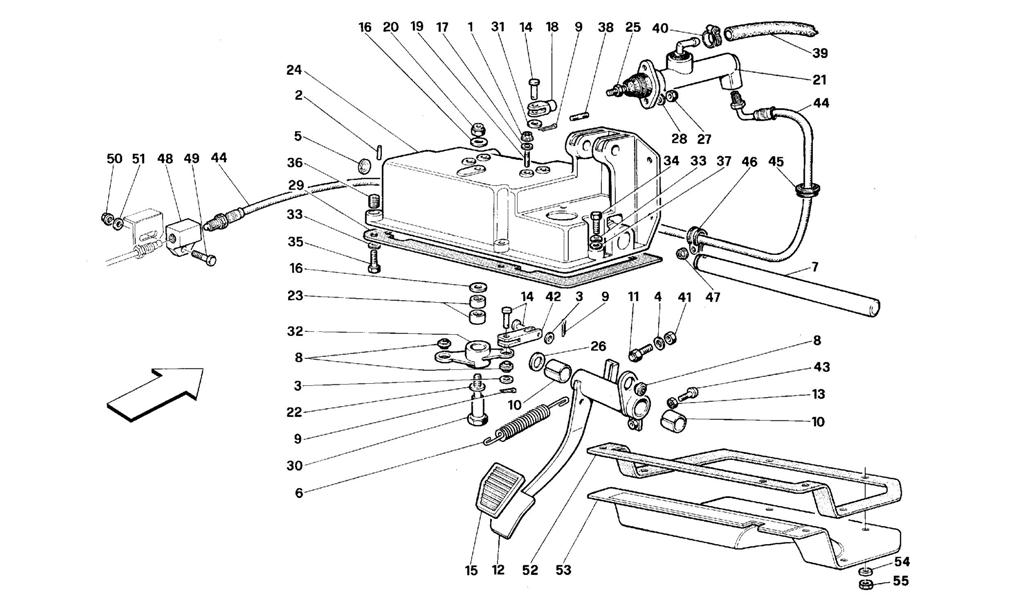

CLUTCH RELEASE CONTROL -VALID FOR RHD

CLUTCH RELEASE CONTROL -VALID FOR RHD

Location Part # Quantity* Description Price Add To Cart
1 15896214 4 Nut Unavailable
2 13942870 1 Pin Unavailable
3 10519624 2 Washer Unavailable
4 12601374 1 Washer $0.90
5 10158801 1 Plug Superseded
6 104895 1 Pedal return spring $32.66
7 113831 1 Pin on the pedal support $200.52
8 109407 3 Ball joint $66.56
9 10734201 3 Split pin Unavailable
10 103163 2 Bush $8.08
11 114825 1 Stop push rod $66.32
12 151321 1 Clutch pedal $371.41
13 16102314 1 Nut Unavailable
14 10050814 3 Pin Unavailable
15 132818 1 Pedal protection Unavailable
16 113500 2 Washer $17.68
17 12643724 4 Washer Superseded
18 10007871 1 Fork $18.90
19 11500124 4 Stud Unavailable
20 148020 1 Nut $5.28
21 175211 1 Master cylinder $328.49
22 112126 1 Washer Unavailable
23 115430 2 Roller bearing $21.74
24 155181 1 Pedal suport -Valid after stock exhaustion of 123472 $647.73
24 123472 1 Pedal suport -Valid till stock exhaustion $2,571.62
25 16102314 1 Nut Unavailable
26 113835 1 Washer, 1,3 mm. thick Unavailable
26 113836 1 Washer, 1,4 mm. thick Unavailable
26 106083 1 Washer, 1,0 mm. thick Unavailable
26 113833 1 Washer, 1,1 mm. thick Unavailable
26 113834 1 Washer, 1,2 mm. thick Unavailable
27 16104121 2 Nut Superseded
28 12601374 2 Washer $0.90
29 156663 1 Gasket $16.42
30 114830 1 Pin for relay lever $19.18
31 12642701 1 Washer $0.90
32 148821 1 Relay lever $186.68
33 127496 5 Washer $0.90
34 16043834 3 Screw Unavailable
35 16043424 2 Screw $0.90
36 13525870 2 Threaded insert Unavailable
37 10519624 3 Washer Unavailable
38 13543524 2 Stud Unavailable
39 151845 1 Pipe for clutch master cylinder $60.98
40 157934 2 Clamp Superseded
41 133989 1 Nut $0.90
42 112172 1 Double fixing fork $170.89
43 144011 1 Pin $4.83
44 149628 1 Clutch control hose $218.43
45 105369 1 Cable grommet $29.09
46 10441290 1 Bracket Unavailable
47 15896214 1 Nut Unavailable
48 148869 1 Union $70.28
49 10902724 1 Screw Unavailable
50 15896214 1 Nut Unavailable
51 12646601 1 Washer Unavailable
52 118422 1 Gasket $27.32
53 123228 1 Cover $431.50
54 12643724 5 Washer Superseded
55 102948 5 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
