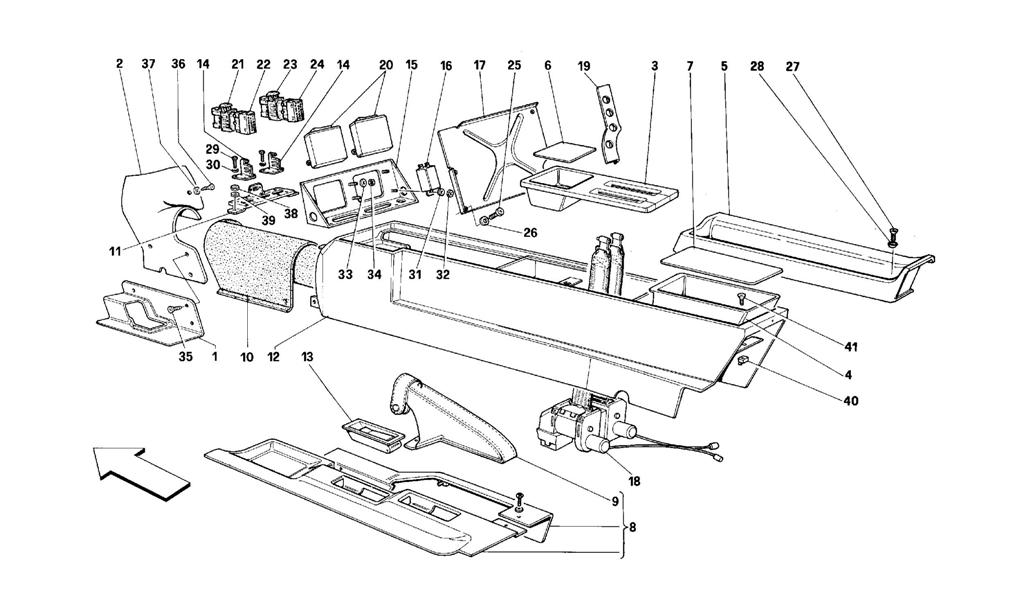

CENTRAL TUNNEL -VALID FOR USA

Go to Split View

CENTRAL TUNNEL -VALID FOR USA

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63092400 *Qty: 1 Accelerator pedal cover $148.84
Location: 2 Prev | Next Part: 630923.. *Qty: 1 Front part of tunnel Call
Location: 3 Prev | Next Part: 63092800 *Qty: 1 Glove box with front plate Call
Location: 4 Prev | Next Part: 63092900 *Qty: 1 Rear glove box Call
Location: 5 Prev | Next Part: 630840.. *Qty: 1 Glove box passenger side complete Call
Location: 6 Prev | Next Part: 63623300 *Qty: 1 Ground for front box Call
Location: 7 Prev | Next Part: 63622900 *Qty: 1 Ground for rear box Call
Location: 8 Prev | Next Part: 630573.. *Qty: 1 Handbrake console complete Call
Location: 9 Prev | Next Part: 634207.. *Qty: 1 Handbrake lever cowling Call
Location: 10 Prev | Next Part: 636959.. *Qty: 1 Central part of tunnel cover Call
Location: 11 Prev | Next Part: 149506 *Qty: 1 Plate $66.91
Location: 12 Prev | Next Part: 630926.. *Qty: 1 Central console for tunnel Call
Location: 13 Prev | Next Part: 63011800 *Qty: 2 Handle for opening hoods $314.67
Location: 14 Prev | Next Part: 148682 *Qty: 2 Connector bracket $4.64
Location: 15 Prev | Next Part: 149507 *Qty: 1 Control units support $55.02
Location: 16 Prev | Next Part: 137666 *Qty: 1 Passive belt acoustic signal $81.44
Location: 17 Prev | Next Part: 63100300 *Qty: 1 Foot rest plate for passenger $175.99
Location: 18 Prev | Next Part: 61552000 *Qty: 1 Retracting mechanism set compl. $970.40
Location: 19 Prev | Next Part: 63447800 *Qty: 1 Foot rest fix. bracket $40.63
Location: 20 Prev | Next Part: 61568900 *Qty: 2 Passive safety belts control unit $1,013.79
Location: 21 Prev | Next Part: 146042 *Qty: 1 PM connector (black) $22.26
Location: 22 Prev | Next Part: 146043 *Qty: 1 PF connector (black) $19.95
Location: 23 Prev | Next Part: 146074 *Qty: 1 PM connector (white) $46.70
Location: 24 Prev | Next Part: 146073 *Qty: 1 PF connector (white) $8.16
Location: 25 Prev | Next Part: 13276470 *Qty: 4 Screw $0.90
Location: 26 Prev | Next Part: 12644424 *Qty: 4 Washer $0.90
Location: 27 Prev | Next Part: 62768300 *Qty: 2 Screw -Valid for light leather- $0.90
Location: 27 Prev | Next Part: 15692677 *Qty: 2 Screw -Valid for dark leather- $0.90
Location: 28 Prev | Next Part: 13338047 *Qty: 2 Washer -Valid for dark leather- $0.90
Location: 28 Prev | Next Part: 15692670 *Qty: 2 Washer -Valid for light leather- $0.90
Location: 29 Prev | Next Part: 10444521 *Qty: 8 Screw $0.90
Location: 30 Prev | Next Part: 10615274 *Qty: 8 Washer $0.90
Location: 31 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 32 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 33 Prev | Next Part: 14496201 *Qty: 4 Washer $0.90
Location: 34 Prev | Next Part: 62790300 *Qty: 4 Nut $0.90
Location: 35 Prev | Next Part: 20286209 *Qty: 2 Screw Call
Location: 36 Prev | Next Part: 15909478 *Qty: 6 Screw $0.90
Location: 37 Prev | Next Part: 13338047 *Qty: 6 Washer $0.90
Location: 38 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 39 Prev | Next Part: 12643724 *Qty: 2 Washer $0.90
Location: 40 Prev | Next Part: 60758600 *Qty: 3 Nut $0.90
Location: 41 Prev | Next Part: 14441582 *Qty: 3 Screw $3.97

* Quantity shown indicates the number of pieces used in the diagram.
