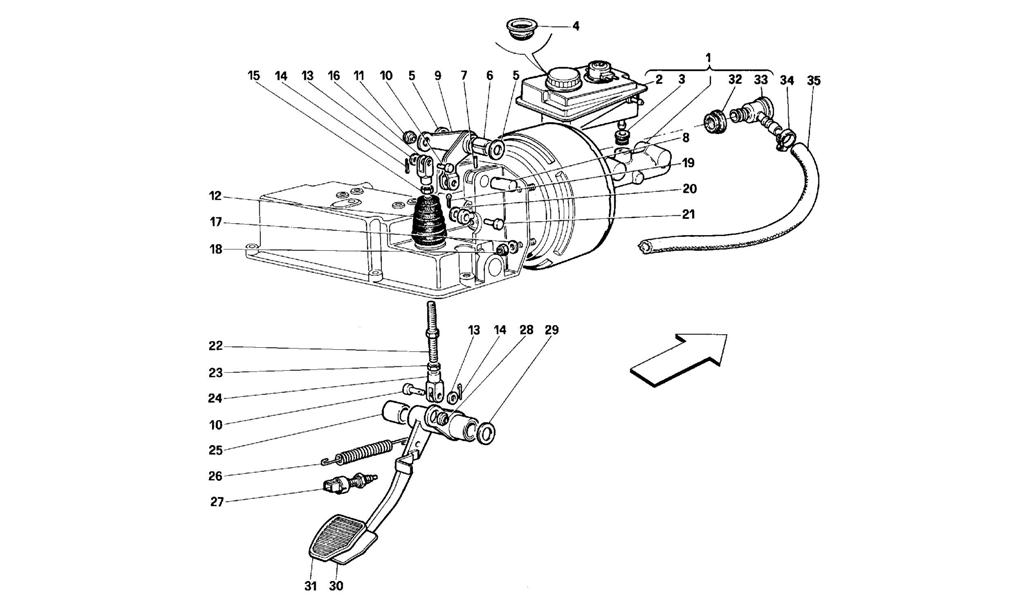

BRAKE HYDRAULIC SYSTEM -VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 151471 *Qty: 1 Brake booster compl. $3,637.89
Location: 2 Prev | Next Part: 133579 *Qty: 1 Oil reservoir Call
Location: 3 Prev | Next Part: 175189 *Qty: 2 Seal ring $24.73
Location: 4 Prev | Next Part: 120735 *Qty: 1 Filter $0.90
Location: 5 Prev | Next Part: 112126 *Qty: 2 Washer $0.90
Location: 6 Prev | Next Part: 112161 *Qty: 1 Bush $39.23
Location: 7 Prev | Next Part: 114623 *Qty: 1 Lock pin $0.90
Location: 8 Prev | Next Part: 112165 *Qty: 1 Lever supporting pin $13.76
Location: 9 Prev | Next Part: 150531 *Qty: 1 Brake booster control lever $102.90
Location: 10 Prev | Next Part: 10033414 *Qty: 2 Pin $10.55
Location: 11 Prev | Next Part: 100424 *Qty: 1 Ball joint Call
Location: 12 Prev | Next Part: 112157 *Qty: 1 Bellows $12.74
Location: 13 Prev | Next Part: 103167 *Qty: 2 Washer $4.92
Location: 14 Prev | Next Part: 10796440 *Qty: 2 Cotter pin $0.90
Location: 15 Prev | Next Part: 10788711 *Qty: 1 R.H., nut $1.52
Location: 16 Prev | Next Part: 104910 *Qty: 1 Fork, R.H. thread $10.53
Location: 17 Prev | Next Part: 12601374 *Qty: 4 Washer $0.90
Location: 18 Prev | Next Part: 101139 *Qty: 4 Nut $0.90
Location: 19 Prev | Next Part: 10796440 *Qty: 1 Cotter pin $0.90
Location: 20 Prev | Next Part: 10730514 *Qty: 1 Washer $1.01
Location: 21 Prev | Next Part: 10033414 *Qty: 1 Pin $10.55
Location: 22 Prev | Next Part: 148822 *Qty: 1 Tie rod $19.01
Location: 23 Prev | Next Part: 11690911 *Qty: 1 L.H., nut $4.32
Location: 24 Prev | Next Part: 104911 *Qty: 1 Fork, L.H. thread $25.81
Location: 25 Prev | Next Part: 103163 *Qty: 2 Bush $3.81
Location: 26 Prev | Next Part: 104895 *Qty: 1 Pedal return spring $9.15
Location: 27 Prev | Next Part: 133555 *Qty: 1 Switch $111.55
Location: 28 Prev | Next Part: 100424 *Qty: 1 Ball joint Call
Location: 29 Prev | Next Part: 106083 *Qty: 1 Spacer washer mm 1 $0.90
Location: 29 Prev | Next Part: 113833 *Qty: 1 Spacer washer mm 1,1 $3.22
Location: 29 Prev | Next Part: 113834 *Qty: 1 Spacer washer mm 1,2 $3.22
Location: 29 Prev | Next Part: 113835 *Qty: 1 Spacer washer mm 1,3 $0.90
Location: 29 Prev | Next Part: 113836 *Qty: 1 Spacer washer mm 1,4 $1.14
Location: 30 Prev | Next Part: 151320 *Qty: 1 Brake pedal $288.84
Location: 31 Prev | Next Part: 132819 *Qty: 1 Pedal protection Call
Location: 32 Prev | Next Part: 151475 *Qty: 1 Cable grommet $13.05
Location: 33 Prev | Next Part: 144552 *Qty: 1 Union $16.88
Location: 34 Prev | Next Part: 13000390 *Qty: 1 Clamp $0.97
Location: 35 Prev | Next Part: 151477 *Qty: 1 Rubber hose $168.63

* Quantity shown indicates the number of pieces used in the diagram.
