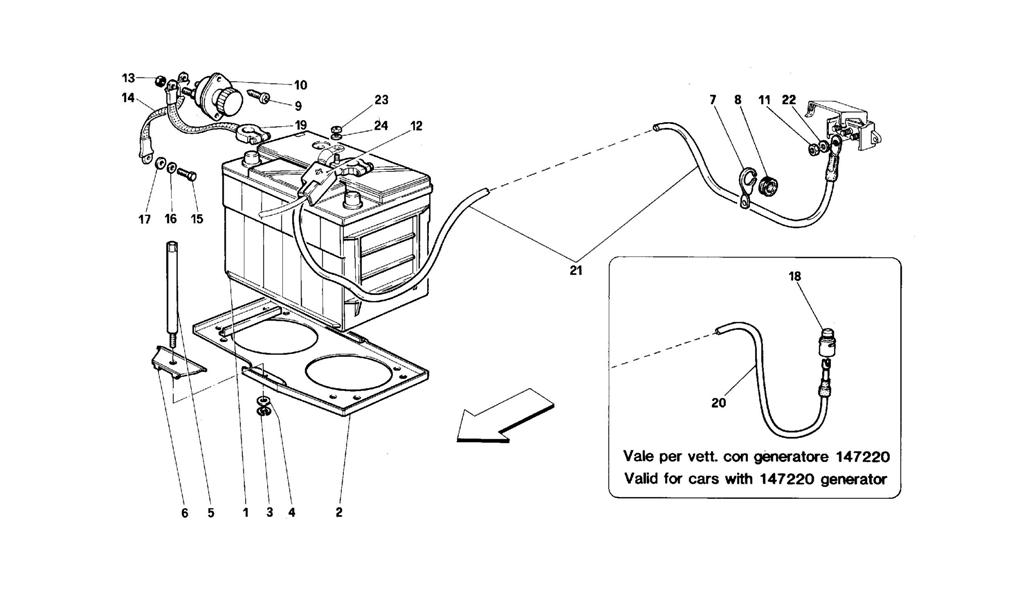

BATTERY

Go to Split View

BATTERY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 188066 *Qty: 1 Battery Call
Location: 1 Prev | Next Part: 157496 *Qty: 1 Battery -As an alternative Call
Location: 2 Prev | Next Part: 125333 *Qty: 1 Plate support $225.23
Location: 3 Prev | Next Part: 11065676 *Qty: 1 Seeger ring $0.90
Location: 4 Prev | Next Part: 12642721 *Qty: 1 Washer $3.07
Location: 5 Prev | Next Part: 125330 *Qty: 1 Pin $255.34
Location: 6 Prev | Next Part: 100839 *Qty: 1 Bracket Call
Location: 7 Prev | Next Part: 105900 *Qty: 1 Cable support bracket -Valid from engine No 32438 and for engines No 32274, 32372, 32373, 32374, $11.91
Location: 8 Prev | Next Part: 10396580 *Qty: 1 Cable grommet -Valid from engine No 32438 and for engines No 32274, 32372, 32373, 32374, 32406 $8.45
Location: 9 Prev | Next Part: 15688178 *Qty: 2 Screw $2.31
Location: 10 Prev | Next Part: 139607 *Qty: 1 Battery disconnecting switch Call
Location: 11 Prev | Next Part: 147985 *Qty: 1 Nut -Valid from engine No 32438 and for engines No 32274, 32372, 32373, 32374, 32406 -Not for $0.90
Location: 12 Prev | Next Part: 144727 *Qty: 1 Protection cap for positive terminal $33.07
Location: 13 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 14 Prev | Next Part: 155074 *Qty: 1 Copper plait from switch to earth $87.90
Location: 15 Prev | Next Part: 16043124 *Qty: 1 Screw $0.90
Location: 16 Prev | Next Part: 10615679 *Qty: 1 Washer Call
Location: 17 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90
Location: 18 Prev | Next Part: 148819 *Qty: 1 Connector -Valid till engine No 32437 and for engine No 32458 - Not for engines No: 32274, 3237 $44.10
Location: 19 Prev | Next Part: 155070 *Qty: 1 Copper plait from battery to switch $54.82
Location: 20 Prev | Next Part: 150424 *Qty: 1 Cable from battery to engine -Valid till engine No 32437 and for engine No 32458 - Not for engine $261.79
Location: 21 Prev | Next Part: 154054 *Qty: 1 Cable from battery to connection box -Valid from engine No 32438 and for engines No 32274, 32372 $319.56
Location: 22 Prev | Next Part: 10615279 *Qty: 1 Washer -Valid from engine No 32438 and for engines No 32274, 32372, 32373, 32374, 32406 -Not fo Call
Location: 23 Prev | Next Part: 147985 *Qty: 1 Nut $0.90
Location: 24 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
