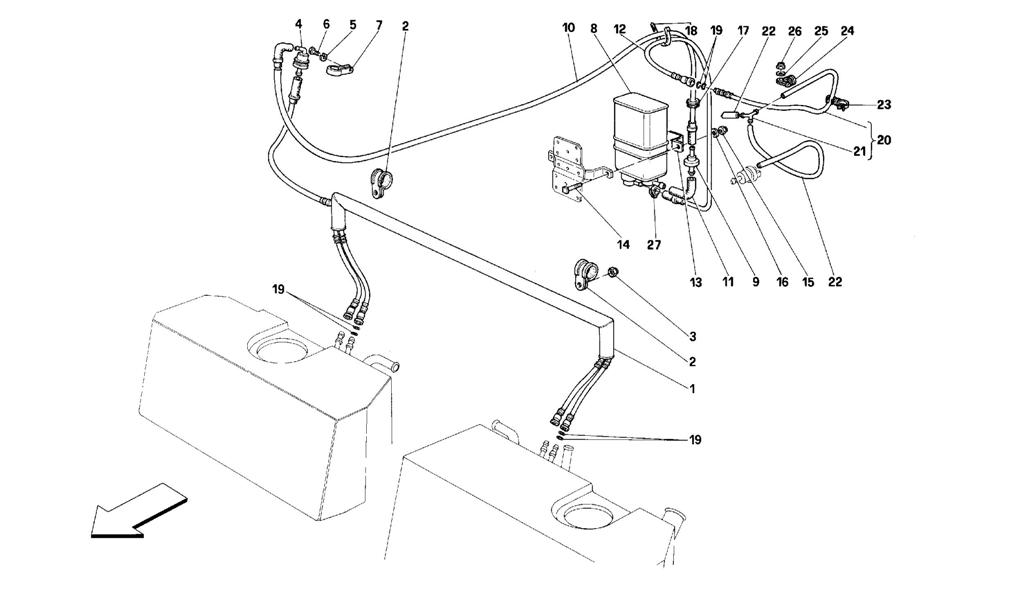

ANTI-EVAPORATIVE EMISSION CONTROL SYSTEM

Go to Split View

ANTI-EVAPORATIVE EMISSION CONTROL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 148408 *Qty: 1 Disareator Call
Location: 2 Prev | Next Part: 10442290 *Qty: 2 Bracket $0.95
Location: 3 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 4 Prev | Next Part: 124193 *Qty: 1 Anti roll-over valve Call
Location: 5 Prev | Next Part: 127494 *Qty: 1 Washer $0.90
Location: 6 Prev | Next Part: 10902324 *Qty: 1 Screw Superseded
Location: 7 Prev | Next Part: 124226 *Qty: 1 Bracket $8.17
Location: 8 Prev | Next Part: 148413 *Qty: 1 Charcoal carbon canister $156.91
Location: 9 Prev | Next Part: 114910 *Qty: 1 2 way check valve $89.66
Location: 10 Prev | Next Part: 148414 *Qty: 1 Pipe $33.62
Location: 11 Prev | Next Part: 148464 *Qty: 1 Sleeve $8.19
Location: 12 Prev | Next Part: 148415 *Qty: 1 Pipe $137.53
Location: 13 Prev | Next Part: 148516 *Qty: 1 Bracket $21.44
Location: 14 Prev | Next Part: 14664790 *Qty: 2 Screw $0.90
Location: 15 Prev | Next Part: 102948 *Qty: 2 Nut $0.90
Location: 16 Prev | Next Part: 12646601 *Qty: 2 Washer $0.90
Location: 17 Prev | Next Part: 10397180 *Qty: 5 Cable grommet Call
Location: 18 Prev | Next Part: 145854 *Qty: 3 Clamp $0.90
Location: 19 Prev | Next Part: 133956 *Qty: 10 Gasket OR $1.18
Location: 20 Prev | Next Part: 149687 *Qty: 1 Pipe $42.52
Location: 21 Prev | Next Part: 105496 *Qty: 1 Union $1.69
Location: 22 Prev | Next Part: 150605 *Qty: 2 Pipe $5.78
Location: 23 Prev | Next Part: 139966 *Qty: 2 Spring $0.90
Location: 24 Prev | Next Part: 10441290 *Qty: 1 Bracket $0.90
Location: 25 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 26 Prev | Next Part: 102741 *Qty: 1 Nut $0.90
Location: 27 Prev | Next Part: 13000190 *Qty: 1 Clamp $0.90

* Quantity shown indicates the number of pieces used in the diagram.
