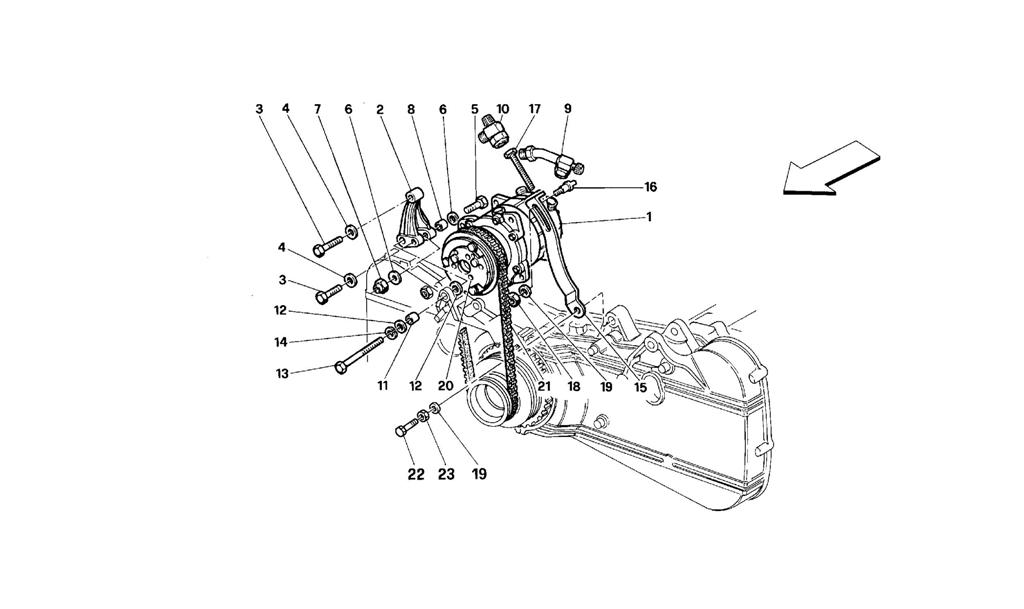

AIR CONDITIONING COMPRESSOR

Go to Split View

AIR CONDITIONING COMPRESSOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 147895 *Qty: 1 Compressor $1,306.73
Location: 2 Prev | Next Part: 122963 *Qty: 1 Support $109.10
Location: 3 Prev | Next Part: 121537 *Qty: 2 Screw $3.75
Location: 4 Prev | Next Part: 12601474 *Qty: 2 Washer $0.90
Location: 5 Prev | Next Part: 11288021 *Qty: 1 Screw $0.90
Location: 6 Prev | Next Part: 14496609 *Qty: 2 Washer $0.90
Location: 7 Prev | Next Part: 12574511 *Qty: 1 Nut Superseded
Location: 8 Prev | Next Part: 123180 *Qty: 1 Dowel $3.19
Location: 9 Prev | Next Part: 127786 *Qty: 1 Intake union Call
Location: 10 Prev | Next Part: 126928 *Qty: 1 Outlet union $104.01
Location: 11 Prev | Next Part: 121100 *Qty: 1 Bushing $3.00
Location: 12 Prev | Next Part: 103025 *Qty: 2 Washer Call
Location: 13 Prev | Next Part: 15541721 *Qty: 1 Screw $1.17
Location: 14 Prev | Next Part: 127498 *Qty: 1 Washer $0.90
Location: 15 Prev | Next Part: 123181 *Qty: 1 Tension adjusting bracket $118.21
Location: 16 Prev | Next Part: 123188 *Qty: 1 Pin for adjusting bracket Call
Location: 17 Prev | Next Part: 125668 *Qty: 1 Tension adjusting screw $1.87
Location: 18 Prev | Next Part: 16104121 *Qty: 1 Nut Superseded
Location: 19 Prev | Next Part: 14496501 *Qty: 2 Washer $0.90
Location: 20 Prev | Next Part: 123813 *Qty: 1 Electromagnetic joint $961.31
Location: 21 Prev | Next Part: 122973 *Qty: 1 Compressor belt $58.01
Location: 22 Prev | Next Part: 15970921 *Qty: 1 Screw $0.90
Location: 23 Prev | Next Part: 127497 *Qty: 1 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
