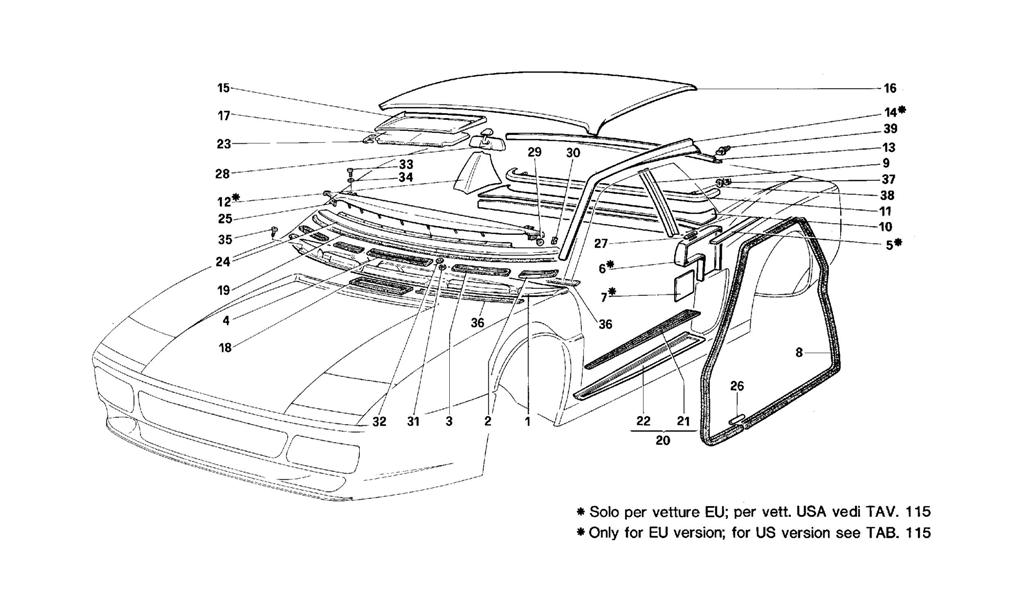

ACCESSORIES AND TRIMS

Go to Split View

ACCESSORIES AND TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63422000 *Qty: 1 Air delivery duct assy -Valid for GD $404.48
Location: 1 Prev | Next Part: 63422100 *Qty: 1 Air delivery duct assy -Not for GD $335.34
Location: 2 Prev | Next Part: 63089400 *Qty: 2 External side gasket $7.55
Location: 3 Prev | Next Part: 63089300 *Qty: 2 Internal side gasket $6.49
Location: 4 Prev | Next Part: 63089200 *Qty: 1 Central gasket $3.69
Location: 5 Prev | Next Part: 615124.. *Qty: 1 R.H. side trim -Not for USA - See note Call
Location: 5 Prev | Next Part: 615125.. *Qty: 1 L.H. side trim -Not for USA - See note Call
Location: 6 Prev | Next Part: 615126.. *Qty: 1 R.H. side rear panel -Not for USA - See note Call
Location: 6 Prev | Next Part: 615127.. *Qty: 1 L.H. side rear panel -Not for USA - See note Call
Location: 7 Prev | Next Part: 615128.. *Qty: 1 R.H. side panel -Not for USA - See note Call
Location: 7 Prev | Next Part: 615129.. *Qty: 1 L.H. side panel -Not for USA - See note Call
Location: 8 Prev | Next Part: 63149500 *Qty: 2 Door gasket Call
Location: 9 Prev | Next Part: 615132.. *Qty: 1 Trim for R.H. central fender -Not for USA Call
Location: 9 Prev | Next Part: 615133.. *Qty: 1 Trim for L.H. central fender -Not for USA Call
Location: 9 Prev | Next Part: 61556512 *Qty: 1 Trim for R.H. central fender -Valid for USA $151.96
Location: 9 Prev | Next Part: 61556612 *Qty: 1 Trim for L.H. central fender -Valid for USA $148.91
Location: 10 Prev | Next Part: 615134.. *Qty: 1 Rear window plane Call
Location: 11 Prev | Next Part: 615135.. *Qty: 1 Rear window lower trim Call
Location: 12 Prev | Next Part: 615136.. *Qty: 1 Trim for R.H. rear fender -Not for USA - See note Call
Location: 12 Prev | Next Part: 615137.. *Qty: 1 Trim for L.H. rear fender -Not for USA - See note Call
Location: 13 Prev | Next Part: 615138.. *Qty: 1 Rear window upper trim -Not for USA Call
Location: 13 Prev | Next Part: 615567.. *Qty: 1 Rear window upper trim -Valid for USA Call
Location: 14 Prev | Next Part: 615139.. *Qty: 1 Trim for R.H. roof side -Not for USA - See note Call
Location: 14 Prev | Next Part: 615140.. *Qty: 1 Trim for L.H. roof side -Not for USA - See note Call
Location: 15 Prev | Next Part: 615143.. *Qty: 1 R.H. upper windshield trim Call
Location: 15 Prev | Next Part: 615144.. *Qty: 1 L.H. upper windshield trim Call
Location: 16 Prev | Next Part: 615145.. *Qty: 1 Inner roof Call
Location: 17 Prev | Next Part: 615146.. *Qty: 1 R.H. sun visor Call
Location: 17 Prev | Next Part: 615147.. *Qty: 1 L.H. sun visor Call
Location: 18 Prev | Next Part: 63089500 *Qty: 1 Gasket for condition $17.35
Location: 19 Prev | Next Part: 62764400 *Qty: 1 Gasket $6.80
Location: 20 Prev | Next Part: 63074000 *Qty: 1 R.H. underdoor moulding, complete $202.26
Location: 20 Prev | Next Part: 63074100 *Qty: 1 L.H. underdoor moulding, complete $202.26
Location: 21 Prev | Next Part: 61515100 *Qty: 1 Rubber insert for R.H. underdoor moulding $110.55
Location: 21 Prev | Next Part: 61515200 *Qty: 1 Rubber insert for L.H. underdoor moulding $110.55
Location: 22 Prev | Next Part: 61514900 *Qty: 1 Frame for R.H. underdoor moulding $361.66
Location: 22 Prev | Next Part: 61515000 *Qty: 1 Frame for L.H. underdoor moulding $361.66
Location: 23 Prev | Next Part: 61515500 *Qty: 2 R.H. sun visor support $25.81
Location: 23 Prev | Next Part: 61515600 *Qty: 2 L.H. sun visor support $25.81
Location: 24 Prev | Next Part: 63116200 *Qty: 1 Lower trim for front windshield -Not for GD $82.65
Location: 24 Prev | Next Part: 63116700 *Qty: 1 Lower trim for front windshield -Valid for GD $124.16
Location: 25 Prev | Next Part: 631161.. *Qty: 1 Lower trim for rear windshield Call
Location: 26 Prev | Next Part: 62781300 *Qty: 2 Connection tube Call
Location: 27 Prev | Next Part: 63443200 *Qty: 2 Seat belts frame -Not for USA- Call
Location: 28 Prev | Next Part: 62850100 *Qty: 1 Inner rear view mirror Call
Location: 29 Prev | Next Part: 62781000 *Qty: 2 Bush $1.12
Location: 30 Prev | Next Part: 62770200 *Qty: 2 Spring $0.90
Location: 31 Prev | Next Part: 15896470 *Qty: 7 Nut $0.90
Location: 32 Prev | Next Part: 12638177 *Qty: 7 Washer Superseded
Location: 33 Prev | Next Part: 14778818 *Qty: 2 Screw Call
Location: 34 Prev | Next Part: 10615670 *Qty: 2 Washer $0.90
Location: 35 Prev | Next Part: 15688375 *Qty: 7 Screw $0.90
Location: 36 Prev | Next Part: 62660300 *Qty: 2 Gasket $9.68
Location: 37 Prev | Next Part: 14084011 *Qty: 2 Nut $0.90
Location: 38 Prev | Next Part: 12642801 *Qty: 2 Washer $0.90
Location: 39 Prev | Next Part: 14187980 *Qty: 4 Rear trim fix. pin -Valid for J Call
Location: 39 Prev | Next Part: 63404400 *Qty: 4 Rear trim fix. pin -Not for J $0.90

* Quantity shown indicates the number of pieces used in the diagram.
