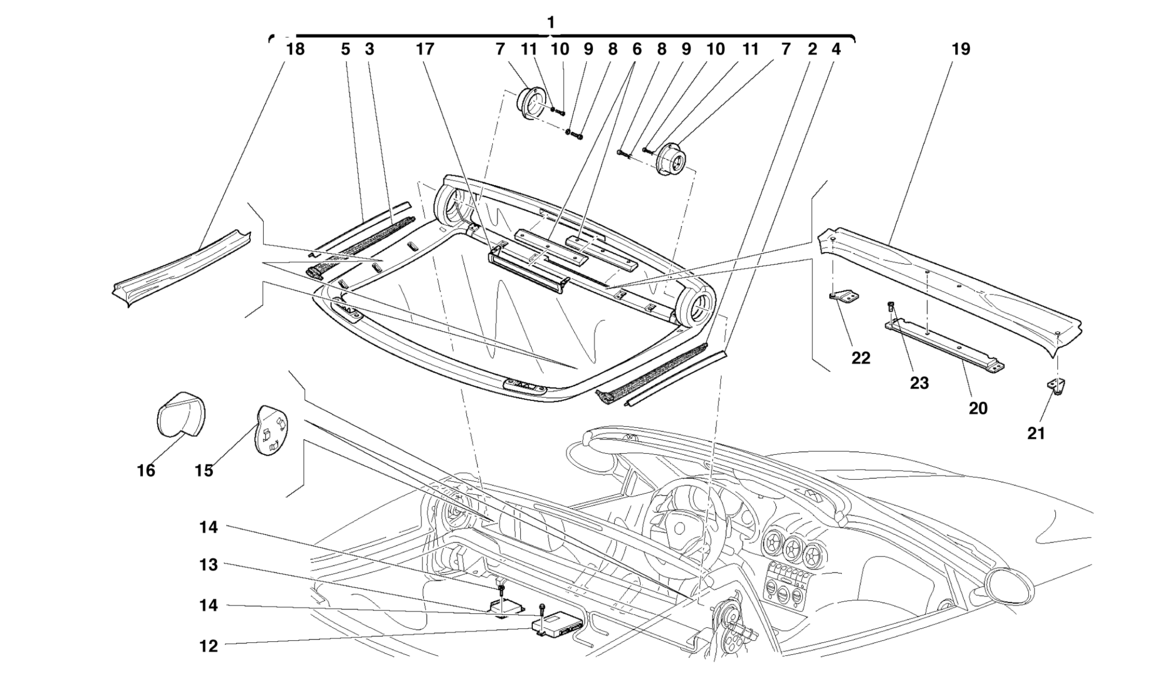

SUN ROOF ASSEMBLY AND CONTROL STATIONS

Go to Split View

SUN ROOF ASSEMBLY AND CONTROL STATIONS

Location Part # Quantity* Description Price Add To Cart
1 68707900 1 COMPLETE SUN ROOF Unavailable
2 68708800 1 R.H. LIMIT STOP GASKET $380.73
3 68709000 1 L.H. LIMIT STOP GASKET $380.73
4 68825800 1 R.H. DRAIN FLUTE MOULDING $845.78
5 68825900 1 L.H. DRAIN FLUTE MOULDING $845.78
6 68708400 2 ADDITIONAL STOP LIGHT Unavailable
7 68825700 2 BUSHING FOR SUN ROOF $691.82
8 14305121 6 SCREW Unavailable
9 13550201 6 WASHER Superseded
10 14305921 8 SCREW Unavailable
11 13550201 8 WASHER Superseded
12 211269 1 CONTROL STATION FOR SUN ROOF Unavailable
13 211270 1 ELETTROCROMIA CONTROL ELECTRIC UNIT $668.30
14 10977624 2 SCREW Unavailable
15 68826600 1 R.H. AESTHETIC COVER $740.81
16 68826700 1 L.H. AESTHETIC COVER $740.81
17 68825400 1 COVER $771.34
18 68831000 1 L.H. AESTHETIC MOULDING $457.56
18 68830900 1 R.H. AESTHETIC MOULDING $457.56
19 69202100 1 REAR ENCLOSURE $3,388.60
20 69324700 1 CENTRAL BRACKET $70.81
21 69324300 1 R.H. BRACKET $20.73
22 69324400 1 L.H. BRACKET $20.73
23 14641791 8 RIVET Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
