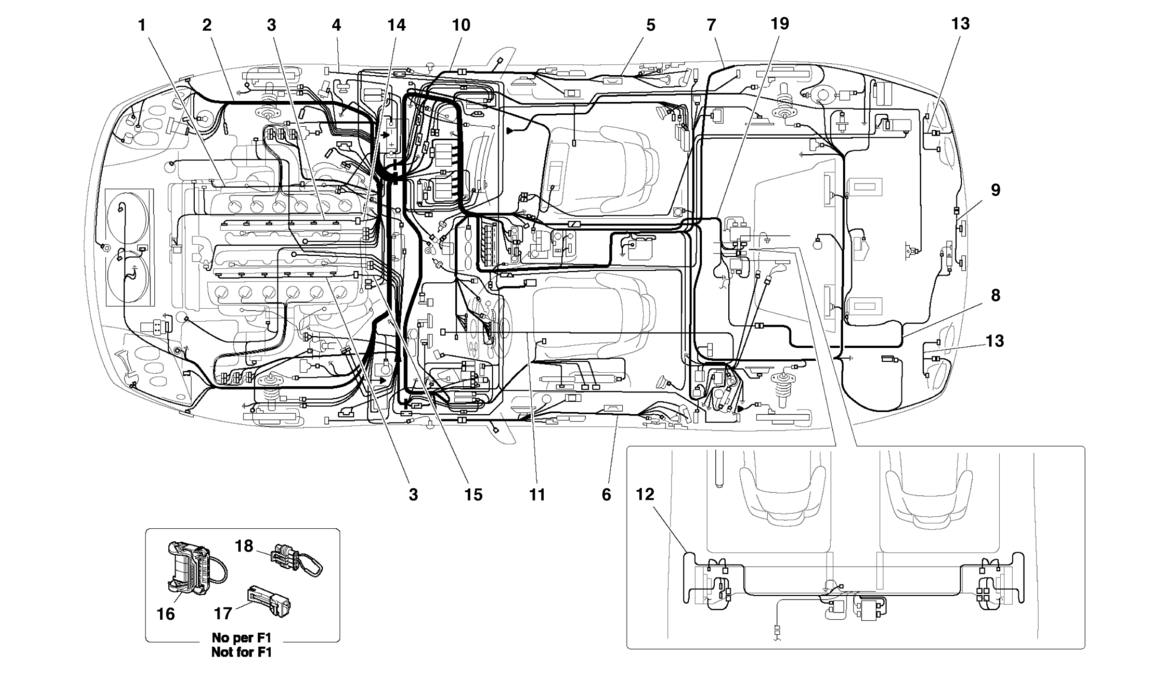

ELECTRICAL SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 183062 1 CONNECTION CABLES FOR MOTOR DEVICES -Not for RHD- $179.66
1 189491 1 CONNECTION CABLES FOR MOTOR DEVICES -Valid for RHD- $243.72
2 210663 1 FRONT CABLES -Not for RHD- $1,212.72
2 210664 1 FRONT CABLES -Valid for RHD- $1,875.56
3 182192 2 INJECTORS CONNECTING CABLES $126.61
4 200727 1 TYRES PRESSURE CONTROL CABLES -Not for RHD- $891.95
4 200726 1 TYRES PRESSURE CONTROL CABLES -Valid for RHD- $464.65
5 200688 1 PASSENGER SIDE DOOR CONNECTION CABLES Unavailable
6 200687 1 DRIVER SIDE DOOR CONNECTION CABLES -Not for RHD- $297.15
6 200686 1 DRIVER SIDE DOOR CONNECTION CABLES -Valid for RHD- $1,613.34
7 219803 1 REAR CABLES $701.18
8 218186 1 REAR HOOD OPENING CONNECTING CABLES $96.18
9 200723 1 CABLES FOR NUMBER PLATE LIGHTS -Not for USA and CDN- $51.05
9 193648 1 CABLES FOR NUMBER PLATE LIGHTS -Valid for USA and CDN- $122.65
10 211325 1 AIR BAG-DASHBOARD CONNECTION CABLES -Not for RHD- $683.62
10 214562 1 AIR BAG-DASHBOARD CONNECTION CABLES -Valid for RHD- $1,107.65
11 212429 1 F1 GEARBOX CONNECTION CABLES -Valid for F1- Unavailable
12 213042 1 ENGINE-ECU CONNECTOR CABLE -No longer available- -Supplied together with motorised Carrier p/n 68708600, Table 118 pos.1- Unavailable
13 200724 2 REAR LIGHT CONNECTION CABLES -Not for USA and CDN- $180.53
13 200725 2 REAR LIGHT CONNECTION CABLES -Valid for USA and CDN- $485.01
14 196495 1 R.H. SIDE ENGINE CONNECTING CABLES -Not for RHD- Unavailable
14 196496 1 R.H. SIDE ENGINE CONNECTING CABLES -Valid for RHD- $1,577.49
15 187765 1 L.H. SIDE ENGINE CONNECTING CABLES -Not for RHD- $1,257.06
15 189490 1 L.H. SIDE ENGINE CONNECTING CABLES -Valid for RHD- $902.98
16 200718 1 BRACKET FOR GEARBOX -Not for F1- Unavailable
17 167699 1 CONNECTOR -Not for F1- $4.08
18 200722 1 BRACKET FOR CAN LINE WITH RESISTANCE -Not for F1- $13.60
19 220313 1 CABLE FOR SUN ROOF $250.56

* Quantity shown indicates the number of pieces used in the diagram.
