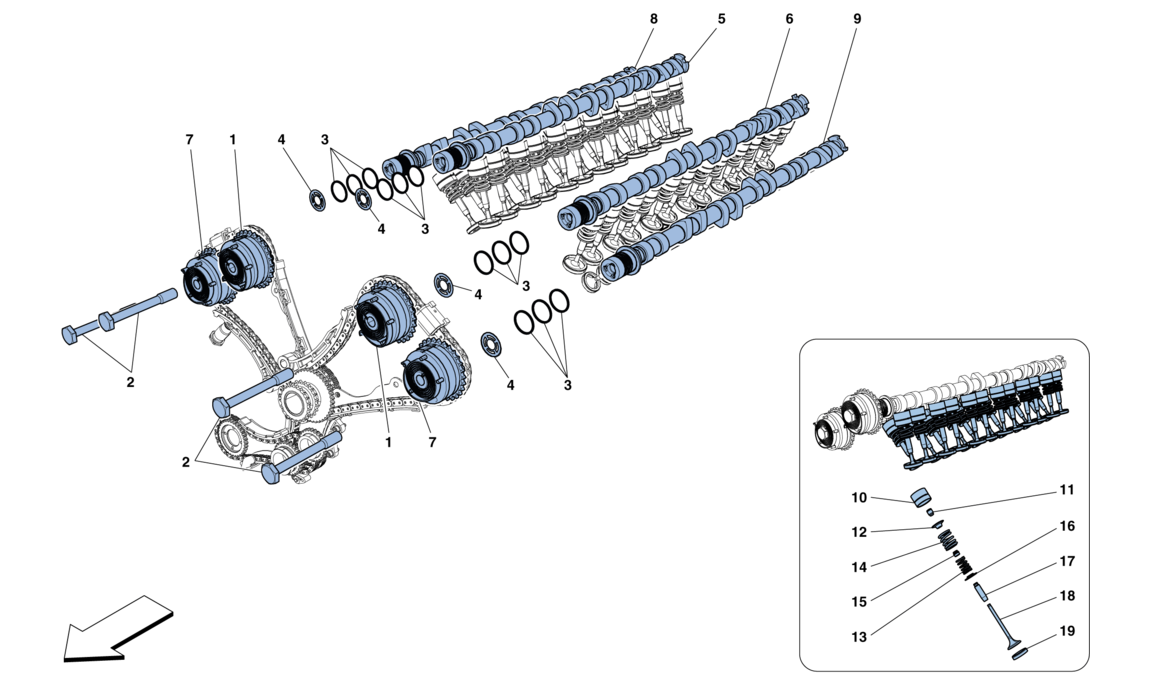

TIMING SYSTEM - TAPPETS

Go to Split View

TIMING SYSTEM - TAPPETS

Location Part # Quantity* Description Price Add To Cart
1 241906 2 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $494.75
2 254892 4 VARIABLE TIMING ADJUSTER SCREW -M14 X 1.5 X 109- $16.54
3 197975 12 SEAL RING $8.99
4 240559 4 DIAMOND COATED WASHER $11.27
5 274309 1 RH INTAKE CAMSHAFT Unavailable
6 274310 1 LH INTAKE CAMSHAFT Unavailable
7 248020 2 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $496.88
8 274311 1 RH EXHAUST CAMSHAFT Unavailable
9 274312 1 LH EXHAUST CAMSHAFT Unavailable
10 255431 48 HYDRAULIC TAPPET $47.95
11 179763 96 VALVE SPRING HALF-CONE Unavailable
12 237390 48 UPPER VALVE SPRING CAP $9.85
13 238641 48 INTERNAL VALVE RETURN SPRING $8.91
14 238640 48 EXTERNAL VALVE RETURN SPRING $12.50
15 221473 48 OIL SEAL $1.75
16 247484 24 LOWER VALVE SPRING CAP -Intake side- $5.99
16 242574 24 LOWER STOP CAP -Exhaust side- $11.00
17 6213498 48 VALVE GUIDE Unavailable
18 198581 24 INTAKE VALVE $16.02
18 198582 24 EXHAUST VALVE $38.41
19 6222847 24 INTAKE VALVE SEAT $9.38
19 6222848 24 EXHAUST VALVE SEAT $10.07

* Quantity shown indicates the number of pieces used in the diagram.
