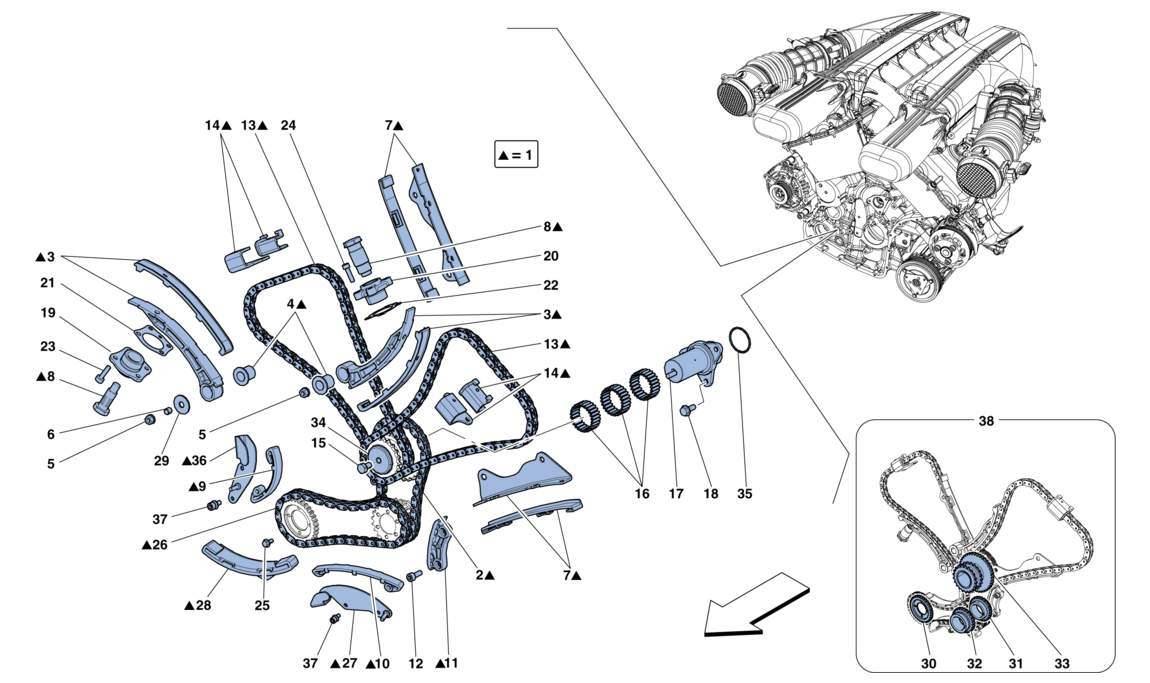

TIMING SYSTEM - DRIVE

Go to Split View

TIMING SYSTEM - DRIVE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 290129 *Qty: 1 VALVE TIMING AND PUMP DRIVE SYSTEM -No longer supplied- -Replaced by 295389- Call
Location: 1 Prev | Next Part: 295389 *Qty: 1 VALVE TIMING AND PUMP DRIVE SYSTEM -Applicable up to engine No. 238179- -Applicable until depletion- Call
Location: 1 Prev | Next Part: 299456 *Qty: 1 VALVE TIMING AND PUMP DRIVE SYSTEM -Applicable from engine No. 238180- -Applicable after depletion of 295389- -No longer supplied- -Replaced by 312630- Call
Location: 1 Prev | Next Part: 312630 *Qty: 1 VALVE TIMING AND PUMP DRIVE SYSTEM Call
Location: 2 Prev | Next Part: 265105 *Qty: 1 CHAIN -No longer supplied- -Replaced by 295376- Call
Location: 2 Prev | Next Part: 295376 *Qty: 1 CHAIN -Applicable up to engine No. 238179- -Applicable until depletion- Call
Location: 2 Prev | Next Part: 295397 *Qty: 1 CHAIN -Applicable from engine No. 238180- -Applicable after depletion of 295376- -No longer supplied- -Replaced by 312629- Call
Location: 2 Prev | Next Part: 312629 *Qty: 1 CHAIN Call
Location: 3 Prev | Next Part: 260614 *Qty: 2 MOBILE SHOE Call
Location: 4 Prev | Next Part: 175303 *Qty: 2 BUSHING $13.43
Location: 5 Prev | Next Part: 177778 *Qty: 2 NUT $1.83
Location: 6 Prev | Next Part: 183929 *Qty: 2 BUSHING $9.73
Location: 7 Prev | Next Part: 198034 *Qty: 2 FIXED SHOE $72.71
Location: 8 Prev | Next Part: 267099 *Qty: 2 HYDRAULIC CHAIN TENSIONER $119.35
Location: 9 Prev | Next Part: 257626 *Qty: 1 SHOE Call
Location: 10 Prev | Next Part: 272014 *Qty: 1 SHOE Call
Location: 11 Prev | Next Part: 265178 *Qty: 1 FIXED SHOE Call
Location: 12 Prev | Next Part: 282395 *Qty: 2 SCREW -M6 X 20- Call
Location: 13 Prev | Next Part: 254263 *Qty: 2 CHAIN Call
Location: 14 Prev | Next Part: 239566 *Qty: 2 FIXED SHOE $49.14
Location: 15 Prev | Next Part: 16043124 *Qty: 1 SCREW -M8 X 14- $0.90
Location: 16 Prev | Next Part: 187742 *Qty: 3 ROLLER BEARING CAGE $12.95
Location: 17 Prev | Next Part: 289896 *Qty: 1 MOUNTING Call
Location: 18 Prev | Next Part: 181336 *Qty: 3 SCREW -M6 X 16- $2.19
Location: 19 Prev | Next Part: 268314 *Qty: 1 BUSHING Call
Location: 20 Prev | Next Part: 252512 *Qty: 1 BUSHING Call
Location: 21 Prev | Next Part: 267198 *Qty: 1 GASKET $10.53
Location: 22 Prev | Next Part: 250055 *Qty: 1 GASKET $3.27
Location: 23 Prev | Next Part: 181336 *Qty: 4 SCREW -M6 X 16- $2.19
Location: 24 Prev | Next Part: 231617 *Qty: 4 SCREW -M6 X 18- $0.90
Location: 25 Prev | Next Part: 186668 *Qty: 4 SCREW -M5 X 12- $17.31
Location: 26 Prev | Next Part: 271880 *Qty: 1 CHAIN Call
Location: 27 Prev | Next Part: 265712 *Qty: 1 MOUNTING Call
Location: 28 Prev | Next Part: 277283 *Qty: 1 FIXED SHOE Call
Location: 29 Prev | Next Part: 175306 *Qty: 1 SHOULDER $5.06
Location: 30 Prev | Next Part: 288731 *Qty: 1 PUMP DRIVE GEAR Call
Location: 31 Prev | Next Part: 286226 *Qty: 1 CRANKSHAFT GEAR -Z. 26- -Internal- -Applicable up to engine No. 205308- -Applicable until depletion- Call
Location: 31 Prev | Next Part: 299590 *Qty: 1 CRANKSHAFT GEAR -Z. 26- -Internal- -Applicable from engine No. 205309- -Applicable after depletion of 286226- Call
Location: 32 Prev | Next Part: 286227 *Qty: 1 CRANKSHAFT GEAR -Z. 26- -External- -No longer supplied- -Replaced by 301217- Call
Location: 32 Prev | Next Part: 301217 *Qty: 1 CRANKSHAFT GEAR -Z. 26- -External- Call
Location: 33 Prev | Next Part: 286228 *Qty: 1 DRIVE GEAR -Applicable up to engine No. 205308- -Applicable until depletion- Call
Location: 33 Prev | Next Part: 299589 *Qty: 1 DRIVE GEAR -Applicable from engine No. 205309- -Applicable after depletion of 286228- Call
Location: 34 Prev | Next Part: 194262 *Qty: 1 SHOULDER $39.87
Location: 35 Prev | Next Part: 154191 *Qty: 1 GASKET $1.65
Location: 36 Prev | Next Part: 265180 *Qty: 1 MOUNTING Call
Location: 37 Prev | Next Part: 282392 *Qty: 4 SCREW -M6 X 14- Call
Location: 38 Prev | Next Part: 290130 *Qty: 1 VALVE TIMING GEAR SPROCKETS -Applicable up to engine No. 231894- -No longer supplied- Call
Location: 38 Prev | Next Part: 301584 *Qty: 1 VALVE TIMING GEAR SPROCKETS -Applicable from engine No. 231895- -No longer supplied- Call

* Quantity shown indicates the number of pieces used in the diagram.
