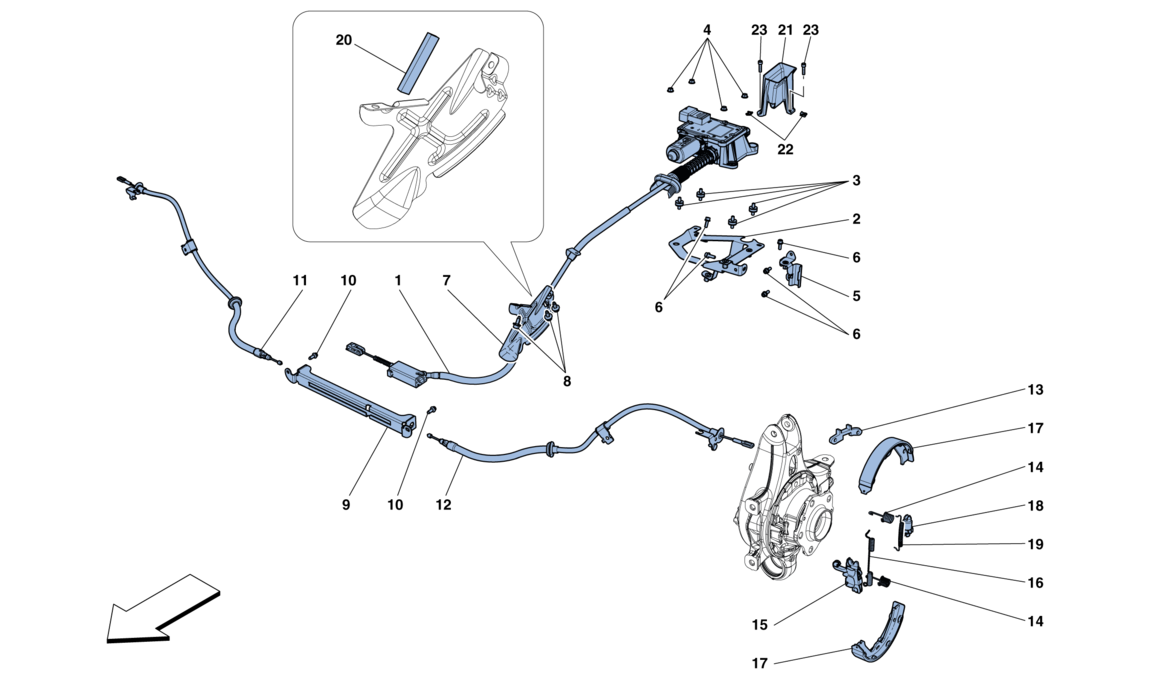

PARKING BRAKE CONTROL

Go to Split View

PARKING BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 281146 *Qty: 1 COMPL. ELECTRONIC ACTUATOR $1,375.71
Location: 2 Prev | Next Part: 272515 *Qty: 1 BRACKET Call
Location: 3 Prev | Next Part: 225408 *Qty: 4 CYLINDRICAL BUSHING $8.42
Location: 4 Prev | Next Part: 14059214 *Qty: 4 NUT $0.90
Location: 5 Prev | Next Part: 274559 *Qty: 1 BRACKET Call
Location: 6 Prev | Next Part: 231617 *Qty: 6 SCREW -M6 X 18- $0.90
Location: 7 Prev | Next Part: 248300 *Qty: 1 EPB CABLE HEAT SHIELD Call
Location: 8 Prev | Next Part: 11566224 *Qty: 4 SCREW -M5 X 14- $0.90
Location: 9 Prev | Next Part: 283126 *Qty: 1 EQUALISER BRACKET Call
Location: 10 Prev | Next Part: 11568027 *Qty: 2 SCREW -M6 X 18- $1.95
Location: 11 Prev | Next Part: 249701 *Qty: 1 RH PARKING BRAKE CABLE $228.91
Location: 12 Prev | Next Part: 249700 *Qty: 1 LH PARKING BRAKE CABLE $228.91
Location: 13 Prev | Next Part: 240953 *Qty: 1 REACTION PLATE $11.73
Location: 14 Prev | Next Part: 240952 *Qty: 4 FASTENER SPRING $11.62
Location: 15 Prev | Next Part: 254156 *Qty: 1 COMPL. PARKING BRAKE LEVER $142.44
Location: 16 Prev | Next Part: 240947 *Qty: 1 LONG EXTENSION SPRING $14.51
Location: 17 Prev | Next Part: 240948 *Qty: 2 PARKING BRAKE SHOE $183.15
Location: 18 Prev | Next Part: 186572 *Qty: 1 ADJUSTER $76.65
Location: 19 Prev | Next Part: 243123 *Qty: 1 SHORT EXTENSION SPRING $14.51
Location: 20 Prev | Next Part: 260355 *Qty: 1 ADHESIVE SEAL Call
Location: 21 Prev | Next Part: 279790 *Qty: 1 SCREW-MOUNTED FITTING FOR EPB RELEASE MECHANISM Call
Location: 22 Prev | Next Part: 66927700 *Qty: 2 BRACKET WITH COLLAR $1.44
Location: 23 Prev | Next Part: 14304124 *Qty: 2 SCREW -M5 X 12- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
