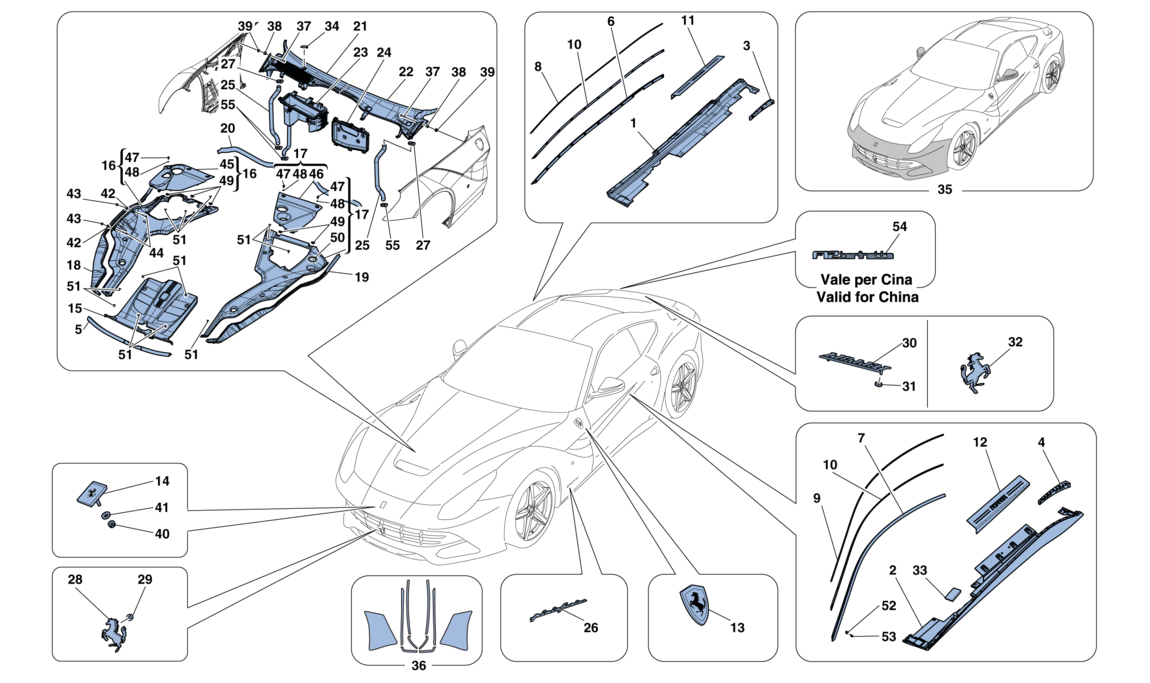

SHIELDS - EXTERNAL TRIM

Go to Split View

SHIELDS - EXTERNAL TRIM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 84306110 *Qty: 1 RH OUTER SILL COVER Call
Location: 1 Prev | Next Part: 84654300 *Qty: 1 RH OUTER SILL COVER -Carbon version- $10,534.69
Location: 2 Prev | Next Part: 84306310 *Qty: 1 LH OUTER SILL COVER Call
Location: 2 Prev | Next Part: 84654500 *Qty: 1 LH OUTER SILL COVER -Carbon version- $10,534.69
Location: 3 Prev | Next Part: 84416000 *Qty: 1 REAR RH BRACKET Call
Location: 4 Prev | Next Part: 84416100 *Qty: 1 REAR LH BRACKET Call
Location: 5 Prev | Next Part: 83411100 *Qty: 1 UPPER SEAL FOR FRONT BUMPER $155.59
Location: 6 Prev | Next Part: 84294200 *Qty: 1 RH ROOF GUTTER MOULDING Call
Location: 7 Prev | Next Part: 84294600 *Qty: 1 LH ROOF GUTTER MOULDING Call
Location: 8 Prev | Next Part: 84294400 *Qty: 1 RH ROOF GUTTER MOULDING SEAL Call
Location: 9 Prev | Next Part: 84294700 *Qty: 1 LH ROOF GUTTER MOULDING SEAL Call
Location: 10 Prev | Next Part: 84294500 *Qty: 2 DOUBLE-SIDED ADHESIVE SPACER ON ROOF GUTTER MOULDING Call
Location: 11 Prev | Next Part: 83362900 *Qty: 1 RH KICKPLATE $367.15
Location: 11 Prev | Next Part: 84654900 *Qty: 1 RH KICKPLATE -Carbon version- -Applicable until depletion- $3,351.32
Location: 11 Prev | Next Part: 85891000 *Qty: 1 RH KICKPLATE -Carbon version- -Applicable after depletion of 84654900- Call
Location: 12 Prev | Next Part: 83363000 *Qty: 1 LH KICKPLATE $367.15
Location: 12 Prev | Next Part: 84654700 *Qty: 1 LH KICKPLATE -Carbon version- -Applicable until depletion- $3,351.32
Location: 12 Prev | Next Part: 85890800 *Qty: 1 LH KICKPLATE -Carbon version- -Applicable after depletion of 84654700- Call
Location: 13 Prev | Next Part: 84829200 *Qty: 2 SQUADRA CORSE' SHIELD BADGE -Version with shields- $1,174.89
Location: 14 Prev | Next Part: 65394800 *Qty: 1 FRONT BADGE $230.33
Location: 15 Prev | Next Part: 83422000 *Qty: 1 CENTRAL ENGINE COMPARTMENT COVER Call
Location: 15 Prev | Next Part: 84957500 *Qty: 1 CENTRAL ENGINE COMPARTMENT COVER -Carbon- -Applicable until depletion- $5,437.43
Location: 15 Prev | Next Part: 85836900 *Qty: 1 CENTRAL ENGINE COMPARTMENT COVER -Carbon- -Applicable after depletion of 84957500- Call
Location: 16 Prev | Next Part: 83422100 *Qty: 1 RH LATERAL ENGINE COMPARTMENT COVER -Not for GD- Call
Location: 16 Prev | Next Part: 85458600 *Qty: 1 RH LATERAL ENGINE COMPARTMENT COVER -Applicable for GD- Call
Location: 16 Prev | Next Part: 85132800 *Qty: 1 RH LATERAL ENGINE COMPARTMENT COVER -Carbon- -Not for GD- $3,429.11
Location: 16 Prev | Next Part: 85458700 *Qty: 1 RH LATERAL ENGINE COMPARTMENT COVER -Carbon- -Applicable for GD- Call
Location: 17 Prev | Next Part: 83422200 *Qty: 1 LH LATERAL ENGINE COMPARTMENT COVER -Not for GD- Call
Location: 17 Prev | Next Part: 85459000 *Qty: 1 LH LATERAL ENGINE COMPARTMENT COVER -Applicable for GD- Call
Location: 17 Prev | Next Part: 85132900 *Qty: 1 LH LATERAL ENGINE COMPARTMENT COVER -Carbon- -Not for GD- $3,429.11
Location: 17 Prev | Next Part: 85459100 *Qty: 1 LH LATERAL ENGINE COMPARTMENT COVER -Carbon- -Applicable for GD- Call
Location: 18 Prev | Next Part: 83918800 *Qty: 1 RH SEAL Call
Location: 19 Prev | Next Part: 83918900 *Qty: 1 LH SEAL Call
Location: 20 Prev | Next Part: 83363900 *Qty: 1 UNDERWINDSCREEN TRAY SEAL Call
Location: 21 Prev | Next Part: 84307700 *Qty: 1 RH UNDERWINDSCREEN TRAY -Not for GD- Call
Location: 21 Prev | Next Part: 85031800 *Qty: 1 RH UNDERWINDSCREEN TRAY -Applicable for GD- Call
Location: 22 Prev | Next Part: 84307900 *Qty: 1 LH UNDERWINDSCREEN TRAY -Not for GD- Call
Location: 22 Prev | Next Part: 85031300 *Qty: 1 LH UNDERWINDSCREEN TRAY -Applicable for GD- Call
Location: 23 Prev | Next Part: 84058100 *Qty: 1 AC UNIT AIR INTAKE TRAY, MOBILE PART -Not for GD- Call
Location: 23 Prev | Next Part: 84976800 *Qty: 1 AC UNIT AIR INTAKE TRAY, MOBILE PART -Applicable for GD- $293.72
Location: 24 Prev | Next Part: 83917200 *Qty: 1 AC UNIT AIR INTAKE TRAY, FIXED PART -Not for GD- Call
Location: 24 Prev | Next Part: 84841600 *Qty: 1 AC UNIT AIR INTAKE TRAY, FIXED PART -Applicable for GD- Call
Location: 25 Prev | Next Part: 83364200 *Qty: 2 WATER DRAIN PIPE -Not for GD- Call
Location: 25 Prev | Next Part: 85031600 *Qty: 2 WATER DRAIN PIPE -Applicable for GD- Call
Location: 26 Prev | Next Part: 81604500 *Qty: 2 PININFARINA BADGE $87.57
Location: 27 Prev | Next Part: 206739 *Qty: 2 CABLE TIE -No longer supplied- -Replaced by 13000490- $10.75
Location: 27 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR -No longer supplied- -Replaced by 296779- Call
Location: 27 Prev | Next Part: 296779 *Qty: 2 SCREW COLLAR $9.69
Location: 28 Prev | Next Part: 84933700 *Qty: 1 CAVALLINO RAMPANTE BADGE $80.78
Location: 29 Prev | Next Part: 16101711 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: 61025000 *Qty: 1 FERRARI' BADGE $72.52
Location: 31 Prev | Next Part: 60324506 *Qty: 2 CLIP Superseded
Location: 32 Prev | Next Part: 84796400 *Qty: 1 CAVALLINO RAMPANTE BADGE $80.78
Location: 33 Prev | Next Part: 69651700 *Qty: 2 FOAM PROTECTION Call
Location: 34 Prev | Next Part: 84434900 *Qty: 1 FASTENER COVER CAP -Not for GD- Call
Location: 34 Prev | Next Part: 85031700 *Qty: 1 FASTENER COVER CAP -Applicable for GD- Call
Location: 35 Prev | Next Part: 70002734 *Qty: 1 COMPL. FILM KIT -Not for USA, CDN- Call
Location: 35 Prev | Next Part: 70002738 *Qty: 1 COMPL. FILM KIT -Applicable for USA, CDN- $3,217.85
Location: 35 Prev | Next Part: 70002735 *Qty: 1 LH SIDE FILM KIT $1,944.49
Location: 35 Prev | Next Part: 70002736 *Qty: 1 RH SIDE FILM KIT $1,944.49
Location: 35 Prev | Next Part: 70002737 *Qty: 1 FRONT ADHESIVE FILM KIT -Not for USA, CDN- Call
Location: 35 Prev | Next Part: 70002739 *Qty: 1 FRONT ADHESIVE FILM KIT -Applicable for USA, CDN- $5,209.76
Location: 36 Prev | Next Part: 70002740 *Qty: 1 HIGH WEAR FILM KIT Call
Location: 37 Prev | Next Part: 15958077 *Qty: 2 SCREW $4.38
Location: 38 Prev | Next Part: 67324300 *Qty: 2 SPACER Call
Location: 39 Prev | Next Part: 14215480 *Qty: 2 BLOCK Superseded
Location: 40 Prev | Next Part: 113647 *Qty: 1 NUT $0.90
Location: 41 Prev | Next Part: 12638124 *Qty: 1 WASHER $0.90
Location: 42 Prev | Next Part: 85243800 *Qty: 4 SPACER Call
Location: 43 Prev | Next Part: 14215480 *Qty: 4 BLOCK Superseded
Location: 44 Prev | Next Part: 15958077 *Qty: 4 SCREW $4.38
Location: 45 Prev | Next Part: 84158900 *Qty: 1 RH INSPECTION COVER -Not for GD- Call
Location: 45 Prev | Next Part: 85458800 *Qty: 1 RH INSPECTION COVER -Applicable for GD- Call
Location: 45 Prev | Next Part: 85084900 *Qty: 1 RH INSPECTION COVER -Carbon- -Not for GD- Call
Location: 45 Prev | Next Part: 85458900 *Qty: 1 RH INSPECTION COVER -Carbon- -Applicable for GD- Call
Location: 46 Prev | Next Part: 84159100 *Qty: 1 LH INSPECTION COVER -Not for GD- Call
Location: 46 Prev | Next Part: 85459200 *Qty: 1 LH INSPECTION COVER -Applicable for GD- Call
Location: 46 Prev | Next Part: 85085000 *Qty: 1 LH INSPECTION COVER -Carbon- -Not for GD- Call
Location: 46 Prev | Next Part: 85459300 *Qty: 1 LH INSPECTION COVER -Carbon- -Applicable for GD- Call
Location: 47 Prev | Next Part: 84927100 *Qty: 5 QUARTER TURN SCREW $20.71
Location: 48 Prev | Next Part: 83957000 *Qty: 5 FASTENING FOR SCREW $9.13
Location: 49 Prev | Next Part: 83914300 *Qty: 5 CLIP $20.71
Location: 50 Prev | Next Part: 82742000 *Qty: 1 RING Call
Location: 51 Prev | Next Part: 256490 *Qty: 17 SCREW Call
Location: 52 Prev | Next Part: 14115680 *Qty: 24 BLOCK $0.90
Location: 53 Prev | Next Part: 15538777 *Qty: 24 SCREW $0.90
Location: 54 Prev | Next Part: 85461600 *Qty: 1 F12 BERLINETTA' BADGE -Applicable for CINA- Call
Location: 55 Prev | Next Part: 296783 *Qty: 3 SCREW COLLAR $13.17

* Quantity shown indicates the number of pieces used in the diagram.
