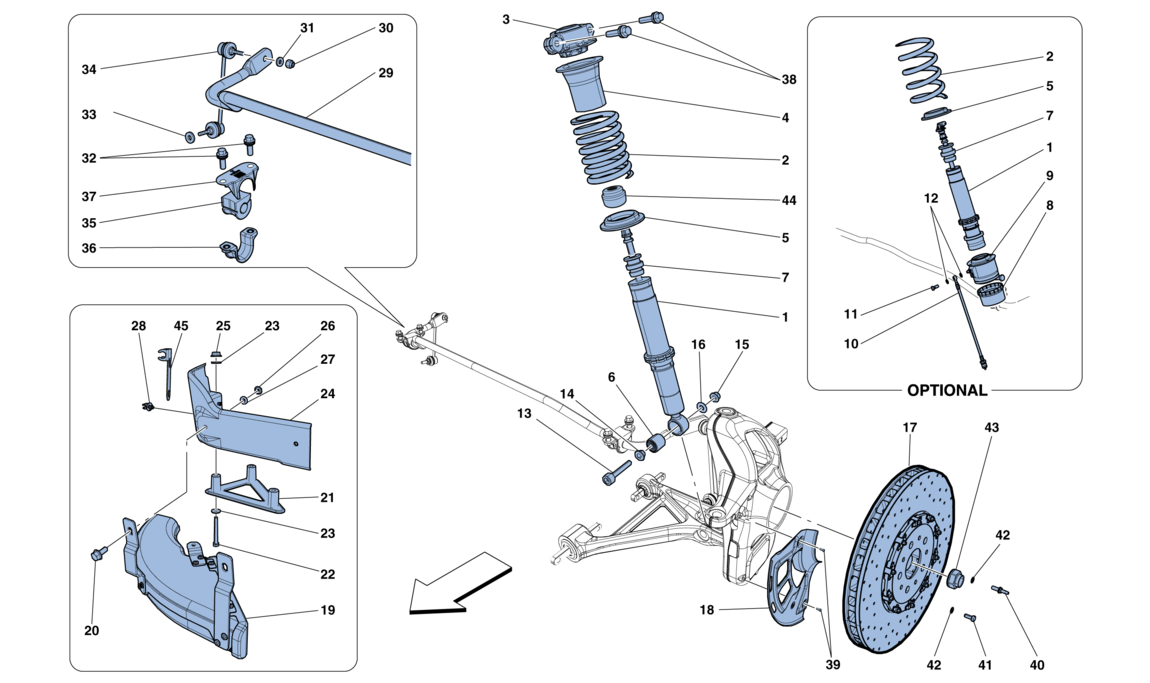

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 280588 *Qty: 2 FRONT SHOCK ABSORBER $2,038.42
Location: 1 Prev | Next Part: 280585 *Qty: 2 FRONT SHOCK ABSORBER -Version with lifter- $3,829.17
Location: 2 Prev | Next Part: 271805 *Qty: 1 SPRING $111.06
Location: 2 Prev | Next Part: 276928 *Qty: 1 SPRING -Version with lifter- $256.28
Location: 3 Prev | Next Part: 250394 *Qty: 2 STOP CAP $273.12
Location: 4 Prev | Next Part: 212517 *Qty: 2 UPPER SPACER $11.97
Location: 5 Prev | Next Part: 188996 *Qty: 2 LOWER SPACER $15.52
Location: 6 Prev | Next Part: 157630 *Qty: 2 BALL JOINT $72.50
Location: 7 Prev | Next Part: 288828 *Qty: 2 ENDSTOP BUSH $74.05
Location: 8 Prev | Next Part: 268474 *Qty: 2 DUST COVER -Version with lifter- $12.11
Location: 9 Prev | Next Part: 262384 *Qty: 1 COMPL. ACTUATOR -Version with lifter- $1,833.80
Location: 10 Prev | Next Part: 277168 *Qty: 2 RUBBER PIPE -Version with lifter- $159.32
Location: 11 Prev | Next Part: 261587 *Qty: 2 CONNECTION FOR UNION -Version with lifter- $32.48
Location: 12 Prev | Next Part: 259638 *Qty: 4 GASKET -Version with lifter- $12.66
Location: 13 Prev | Next Part: 237297 *Qty: 2 SCREW -M12 X 1.25 X 80- $39.67
Location: 14 Prev | Next Part: 237821 *Qty: 2 BUSHING $6.35
Location: 15 Prev | Next Part: 255271 *Qty: 2 NUT $1.79
Location: 16 Prev | Next Part: 12646921 *Qty: 2 WASHER $0.90
Location: 17 Prev | Next Part: 274334 *Qty: 2 BRAKE DISC Call
Location: 18 Prev | Next Part: 260675 *Qty: 1 LH DISC SHIELD -Applicable up to Ass. No. 107422- $28.48
Location: 18 Prev | Next Part: 260258 *Qty: 1 LH DISC SHIELD -Applicable from Ass. No. 107423- $41.85
Location: 18 Prev | Next Part: 260676 *Qty: 1 RH DISC SHIELD -Applicable up to Ass. No. 107422- $28.48
Location: 18 Prev | Next Part: 260259 *Qty: 1 RH DISC SHIELD -Applicable from Ass. No. 107423- $41.85
Location: 19 Prev | Next Part: 282082 *Qty: 1 COMPL. LH BRAKE AIR DUCT Call
Location: 19 Prev | Next Part: 282083 *Qty: 1 COMPL. RH BRAKE AIR DUCT Call
Location: 20 Prev | Next Part: 16296924 *Qty: 4 SCREW -M6 X 14- $0.90
Location: 21 Prev | Next Part: 280481 *Qty: 1 BRACKET FASTENING DEFLECTOR TO LH LOWER ARM Call
Location: 21 Prev | Next Part: 280482 *Qty: 1 BRACKET FASTENING DEFLECTOR TO RH LOWER ARM Call
Location: 22 Prev | Next Part: 10903624 *Qty: 6 SCREW -M6 X 50- Call
Location: 23 Prev | Next Part: 12646604 *Qty: 12 WASHER $0.90
Location: 24 Prev | Next Part: 291951 *Qty: 1 COMPL. LH AIR DEFLECTOR Call
Location: 24 Prev | Next Part: 291952 *Qty: 1 COMPL. RH AIR DEFLECTOR Call
Location: 25 Prev | Next Part: 13046114 *Qty: 6 NUT $0.90
Location: 26 Prev | Next Part: 13046114 *Qty: 4 NUT $0.90
Location: 27 Prev | Next Part: 12646604 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 261214 *Qty: 2 RAYMOND CLIP Call
Location: 29 Prev | Next Part: 277262 *Qty: 1 STABILISER BAR $423.84
Location: 30 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 245843 *Qty: 4 SCREW -M10 X 1.25 X 30- $3.01
Location: 33 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 247950 *Qty: 1 LH SPHERICAL TIE-ROD $110.43
Location: 34 Prev | Next Part: 247952 *Qty: 1 RH SPHERICAL TIE-ROD $110.43
Location: 35 Prev | Next Part: 236241 *Qty: 2 STABILISER BAR BUSH $29.68
Location: 36 Prev | Next Part: 245822 *Qty: 2 RETAINER BRACKET $24.69
Location: 37 Prev | Next Part: 286144 *Qty: 2 BUSHING MOUNT Call
Location: 38 Prev | Next Part: 248790 *Qty: 4 SCREW $5.20
Location: 39 Prev | Next Part: 190870 *Qty: 4 SCREW -M6 X 14- -Applicable up to Ass. No. 107422- $2.80
Location: 39 Prev | Next Part: 250657 *Qty: 4 SCREW -M6 X 14- -Applicable from Ass. No. 107423- $8.14
Location: 40 Prev | Next Part: 104370 *Qty: 2 SCREW $0.90
Location: 41 Prev | Next Part: 228131 *Qty: 2 SCREW -M8 X 20- $1.03
Location: 42 Prev | Next Part: 228132 *Qty: 4 WASHER $0.90
Location: 43 Prev | Next Part: 203780 *Qty: 2 NUT $28.52
Location: 44 Prev | Next Part: 288829 *Qty: 1 STOP CAP $99.68
Location: 45 Prev | Next Part: 291864 *Qty: 1 ABS CABLE MOUNTING BRACKET Call

* Quantity shown indicates the number of pieces used in the diagram.
