AIR INTAKE

in cart

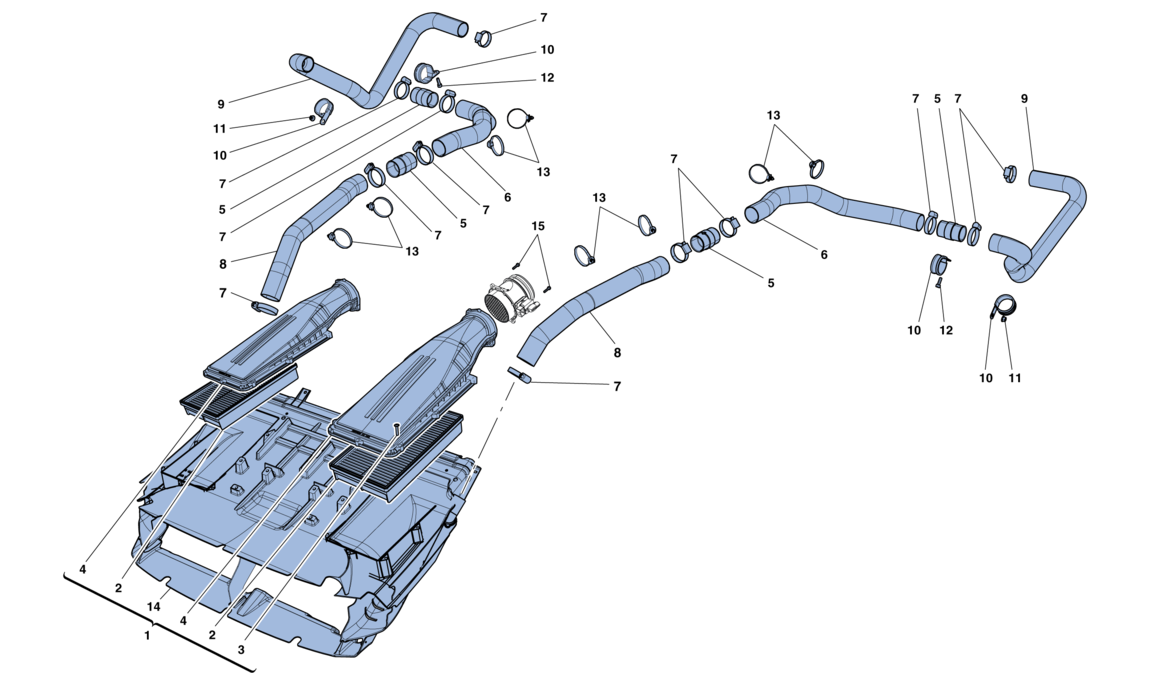

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 282797 *Qty: 1 COMPL. AIR DUCT -Not for version with carbon covers- -After depletion, order loose parts- -Not for USA, CDN- -Applicable until depletion- Call
Location: 2 Prev | Next Part: 291688 *Qty: 2 AIR FILTER -Not for USA, CDN, USA LIGHT- -Applicable until depletion- $288.78
Location: 2 Prev | Next Part: 235577 *Qty: 2 AIR FILTER -Not for USA, CDN, USA LIGHT- -Applicable after depletion of 291688- $105.14
Location: 2 Prev | Next Part: 291689 *Qty: 2 AIR FILTER -Applicable for USA, CDN, USA LIGHT- $340.56
Location: 3 Prev | Next Part: 262934 *Qty: 14 SCREW -M5 X 20- -No longer supplied- -Replaced by 169815- $0.90
Location: 3 Prev | Next Part: 169815 *Qty: 14 SCREW $2.14
Location: 4 Prev | Next Part: 276576 *Qty: 2 FILTER BOX COVER Call
Location: 4 Prev | Next Part: 285951 *Qty: 2 FILTER BOX COVER -Carbon- Call
Location: 5 Prev | Next Part: 270296 *Qty: 4 MEMBRANE HOLDER PIPE -D. 38- Call
Location: 6 Prev | Next Part: 288527 *Qty: 2 COILED PIPE -D. 38- -L. 325 mm- -After depletion, also order pipe 293051 ref.9- -Applicable up to Ass. No. 109541- -Applicable until depletion- Call
Location: 6 Prev | Next Part: 275474 *Qty: 2 COILED PIPE -D. 38- -L. 370 mm- -Applicable from Ass. No. 109542- -Applicable after depletion of 288527- $109.66
Location: 7 Prev | Next Part: 13000690 *Qty: 12 SCREW COLLAR -No longer supplied- -Replaced by 296782- Call
Location: 7 Prev | Next Part: 296782 *Qty: 12 SCREW COLLAR $12.16
Location: 8 Prev | Next Part: 288528 *Qty: 2 COILED PIPE -D. 38- -L. 600 mm- Call
Location: 9 Prev | Next Part: 283572 *Qty: 2 COILED PIPE -D. 38- -L. 740 mm- -After depletion, also order pipe 275474 ref.6- -Applicable up to Ass. No. 109541- -Applicable until depletion- Call
Location: 9 Prev | Next Part: 293051 *Qty: 2 COILED PIPE -D. 38- -L. 860 mm- -Applicable from Ass. No. 109542- -Applicable after depletion of 283572- $156.66
Location: 10 Prev | Next Part: 175119 *Qty: 4 BRACKET WITH SHEATH Call
Location: 11 Prev | Next Part: 14040611 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 81045300 *Qty: 2 SCREW Call
Location: 13 Prev | Next Part: 217854 *Qty: 10 CLIP $0.90
Location: 14 Prev | Next Part: 292311 *Qty: 1 AIR DUCT -Applicable up to Ass. No. 114440- -Applicable until depletion- Call
Location: 14 Prev | Next Part: 297126 *Qty: 1 AIR DUCT -Applicable from Ass. No. 114441- -Applicable after depletion of 292311- Call
Location: 15 Prev | Next Part: 66207700 *Qty: 4 SCREW -No longer supplied- -Replaced by 85833800- $3.25
Location: 15 Prev | Next Part: 85833800 *Qty: 4 SCREW Call

* Quantity shown indicates the number of pieces used in the diagram.
