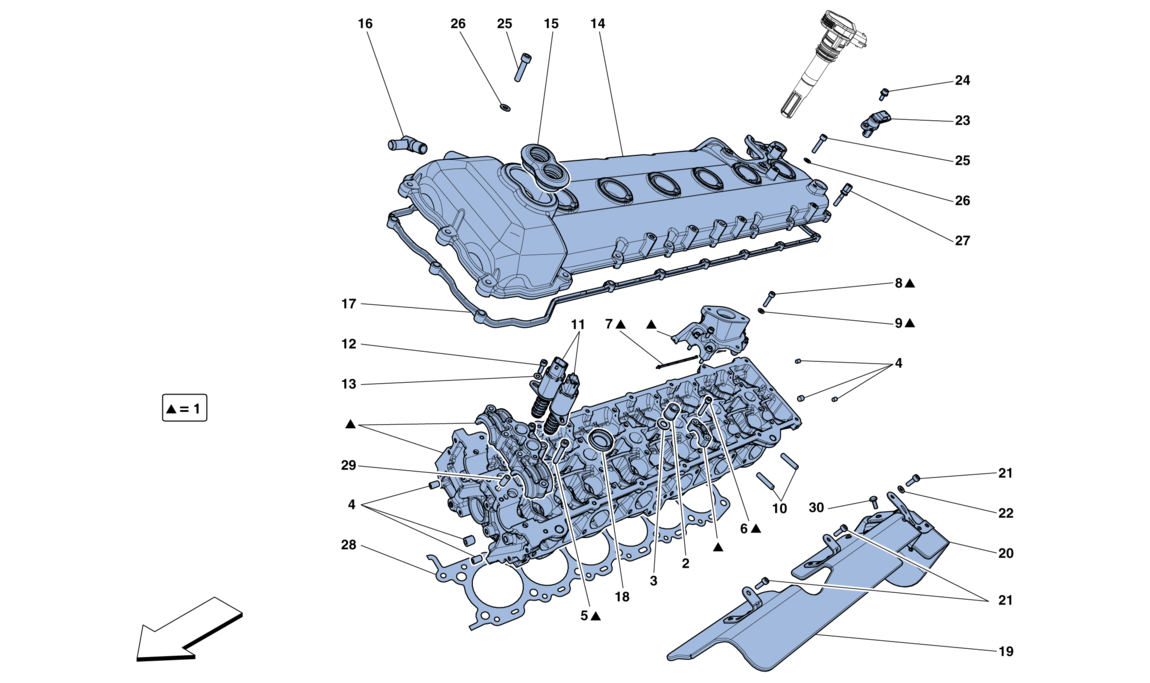

LEFT HAND CYLINDER HEAD

Go to Split View

LEFT HAND CYLINDER HEAD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 287816 *Qty: 1 LH HEAD -Applicable until depletion- Call
Location: 1 Prev | Next Part: 303927 *Qty: 1 LH HEAD -Applicable after depletion of 287816- Call
Location: 2 Prev | Next Part: 183524 *Qty: 28 NUT $4.33
Location: 3 Prev | Next Part: 151117 *Qty: 28 WASHER $1.41
Location: 4 Prev | Next Part: 282755 *Qty: 5 THREADED PLUG -D. 10 X 1.25- -For oil circuit orifices- Call
Location: 4 Prev | Next Part: 10275501 *Qty: 2 THREADED PLUG -M12 X 11- $1.27
Location: 4 Prev | Next Part: 199760 *Qty: 6 THREADED PLUG -D. 6 X 1- $0.90
Location: 5 Prev | Next Part: 243720 *Qty: 2 SCREW -M6 X 40- $0.90
Location: 5 Prev | Next Part: 243721 *Qty: 4 SCREW WITH WASHER -M6 X 45- $0.90
Location: 6 Prev | Next Part: 243719 *Qty: 20 SCREW WITH WASHER -M6 X 35- $0.90
Location: 7 Prev | Next Part: 239614 *Qty: 1 GASKET $6.72
Location: 8 Prev | Next Part: 243719 *Qty: 4 SCREW WITH WASHER -M6 X 35- $0.90
Location: 8 Prev | Next Part: 239502 *Qty: 1 SCREW -M6 X 25- $0.90
Location: 9 Prev | Next Part: 11197774 *Qty: 1 WASHER Superseded
Location: 10 Prev | Next Part: 211641 *Qty: 12 STUD BOLT -M8 X 16- -Shank length 24 mm- $1.24
Location: 11 Prev | Next Part: 269227 *Qty: 2 OIL PRESSURE REGULATOR VALVE -No longer supplied- -Replaced by 296017- Superseded
Location: 11 Prev | Next Part: 296017 *Qty: 2 OIL PRESSURE REGULATOR VALVE $242.38
Location: 12 Prev | Next Part: 14304221 *Qty: 2 SCREW -M5 X 16- Call
Location: 13 Prev | Next Part: 11181574 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 271269 *Qty: 1 LH CYLINDER HEAD COVER -Applicable up to engine No. 201497- Call
Location: 14 Prev | Next Part: 292566 *Qty: 1 LH CYLINDER HEAD COVER -Applicable from engine No. 201498- Call
Location: 15 Prev | Next Part: 229353 *Qty: 1 SOLENOID VALVE GASKET $17.95
Location: 16 Prev | Next Part: 271521 *Qty: 1 CONNECTOR Call
Location: 17 Prev | Next Part: 243802 *Qty: 1 LH HEAD COVER GASKET $85.45
Location: 18 Prev | Next Part: 223982 *Qty: 6 SPARK PLUG TUBE SEAL $2.50
Location: 19 Prev | Next Part: 293214 *Qty: 1 LH FRONT HEAD HEAT SHIELD Call
Location: 20 Prev | Next Part: 293213 *Qty: 1 LH REAR HEAD HEAT SHIELD Call
Location: 21 Prev | Next Part: 11628424 *Qty: 3 SCREW -No longer supplied- -Replaced by 233600- Call
Location: 21 Prev | Next Part: 233600 *Qty: 3 SCREW -M6 X 12- $0.90
Location: 22 Prev | Next Part: 11197774 *Qty: 3 WASHER -No longer supplied- Superseded
Location: 23 Prev | Next Part: 224573 *Qty: 2 TIMING SENSOR $41.78
Location: 24 Prev | Next Part: 231616 *Qty: 2 SCREW -M6 X 14- $0.90
Location: 25 Prev | Next Part: 157218 *Qty: 17 SCREW -M6 X 25- $0.90
Location: 26 Prev | Next Part: 11197774 *Qty: 20 WASHER Superseded
Location: 27 Prev | Next Part: 214412 *Qty: 2 STUD BOLT $13.37
Location: 28 Prev | Next Part: 243804 *Qty: 1 LH HEAD-CRANKCASE GASKET $300.28
Location: 29 Prev | Next Part: 200458 *Qty: 2 CHECK VALVE $9.94
Location: 30 Prev | Next Part: 11625524 *Qty: 2 SCREW Call

* Quantity shown indicates the number of pieces used in the diagram.
