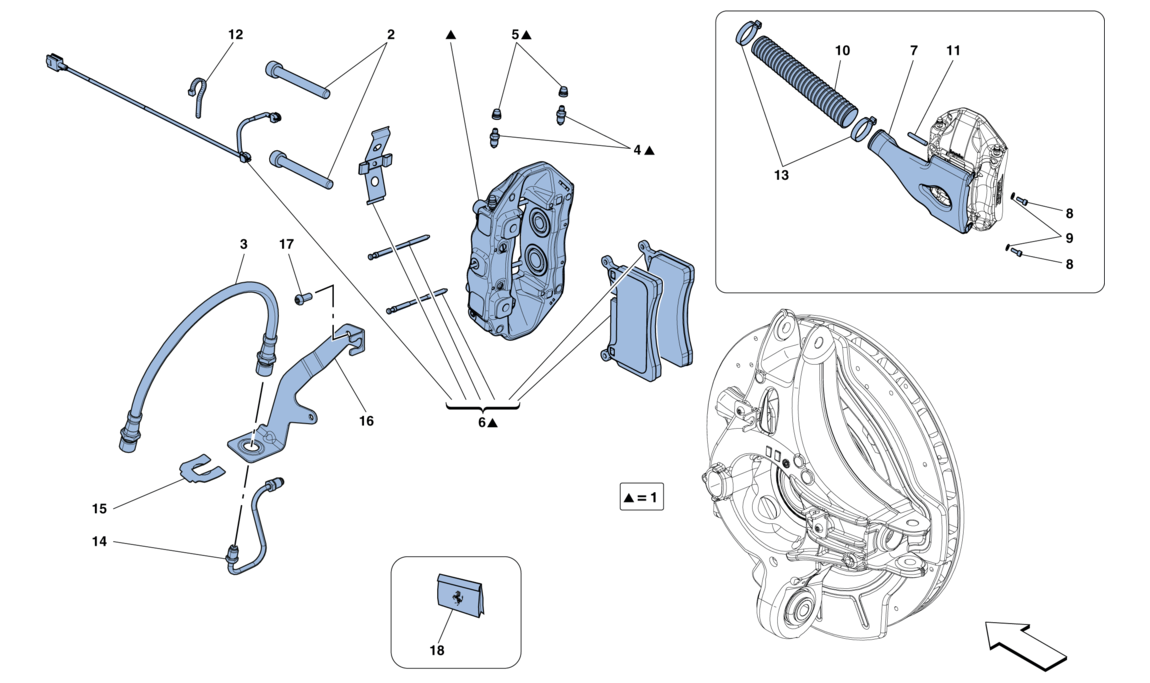

REAR BRAKE CALIPERS

Go to Split View

REAR BRAKE CALIPERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 284219 *Qty: 1 REAR RH CALIPER WITH PADS -Standard- Call
Location: 1 Prev | Next Part: 284218 *Qty: 1 REAR LH CALIPER WITH PADS -Standard- Call
Location: 1 Prev | Next Part: 278855 *Qty: 1 REAR RH CALIPER WITH PADS -Black- Call
Location: 1 Prev | Next Part: 278854 *Qty: 1 REAR LH CALIPER WITH PADS -Black- Call
Location: 1 Prev | Next Part: 278859 *Qty: 1 REAR RH CALIPER WITH PADS -Red- Call
Location: 1 Prev | Next Part: 278858 *Qty: 1 REAR LH CALIPER WITH PADS -Red- Call
Location: 1 Prev | Next Part: 278863 *Qty: 1 REAR RH CALIPER WITH PADS -Scuderia Red- Call
Location: 1 Prev | Next Part: 278862 *Qty: 1 REAR LH CALIPER WITH PADS -Scuderia Red- Call
Location: 1 Prev | Next Part: 278875 *Qty: 1 REAR RH CALIPER WITH PADS -Dark grey- Call
Location: 1 Prev | Next Part: 278874 *Qty: 1 REAR LH CALIPER WITH PADS -Dark grey- Call
Location: 1 Prev | Next Part: 285182 *Qty: 1 REAR RH CALIPER WITH PADS -Blue- Call
Location: 1 Prev | Next Part: 285181 *Qty: 1 REAR LH CALIPER WITH PADS -Blue- Call
Location: 1 Prev | Next Part: 285184 *Qty: 1 REAR RH CALIPER WITH PADS -Gold- Call
Location: 1 Prev | Next Part: 285183 *Qty: 1 REAR LH CALIPER WITH PADS -Gold- Call
Location: 1 Prev | Next Part: 278867 *Qty: 1 REAR RH CALIPER WITH PADS -Yellow- Call
Location: 1 Prev | Next Part: 278866 *Qty: 1 REAR LH CALIPER WITH PADS -Yellow- Call
Location: 1 Prev | Next Part: 278871 *Qty: 1 REAR RH CALIPER WITH PADS -Silver- Call
Location: 1 Prev | Next Part: 278870 *Qty: 1 REAR LH CALIPER WITH PADS -Silver- Call
Location: 2 Prev | Next Part: 196837 *Qty: 4 SCREW -M12 X 1.5 X 105- $24.93
Location: 3 Prev | Next Part: 271711 *Qty: 2 RUBBER PIPE $41.73
Location: 4 Prev | Next Part: 215665 *Qty: 4 BLEED SCREW $35.52
Location: 5 Prev | Next Part: 215666 *Qty: 4 PROTECTIVE CAP $33.03
Location: 6 Prev | Next Part: 70002443 *Qty: 1 REAR PAD SET WITH SPRING $1,476.00
Location: 7 Prev | Next Part: 281228 *Qty: 1 LH REAR CALIPER HOUSING COVER Call
Location: 7 Prev | Next Part: 281229 *Qty: 1 RH REAR CALIPER HOUSING COVER Call
Location: 8 Prev | Next Part: 14304187 *Qty: 4 SCREW -M5 X 12- $0.90
Location: 9 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 289038 *Qty: 2 AIR DELIVERY PIPE $135.26
Location: 11 Prev | Next Part: 11499924 *Qty: 2 STUD BOLT Call
Location: 12 Prev | Next Part: 10815787 *Qty: 2 RING CLAMP Call
Location: 13 Prev | Next Part: 262338 *Qty: 4 COLLAR -No longer supplied- -Replaced by 296782- $4.42
Location: 14 Prev | Next Part: 294294 *Qty: 1 BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE Call
Location: 14 Prev | Next Part: 294292 *Qty: 1 BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE Call
Location: 15 Prev | Next Part: 116374 *Qty: 2 CLIP $2.96
Location: 16 Prev | Next Part: 294301 *Qty: 1 RH BRACKET Call
Location: 16 Prev | Next Part: 294300 *Qty: 1 LH BRACKET Call
Location: 17 Prev | Next Part: 250657 *Qty: 2 SCREW -M6 X 14- $8.14
Location: 18 Prev | Next Part: 70003493 *Qty: 1 REAR DUST GAITER KIT Call

* Quantity shown indicates the number of pieces used in the diagram.
