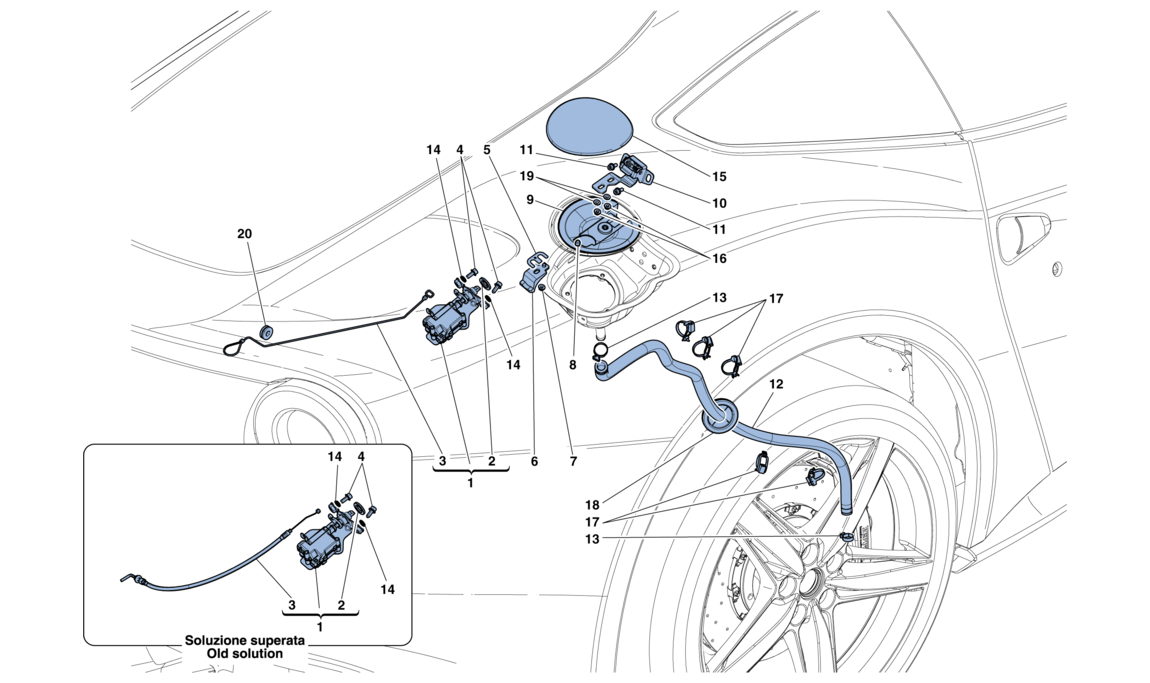

FUEL FILLER FLAP AND CONTROLS

Go to Split View

FUEL FILLER FLAP AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 84483700 *Qty: 1 COMPL. FUEL FILLER FLAP ACTUATOR -Applicable up to Ass. No. 114557- -Applicable until depletion- $189.98
Location: 1 Prev | Next Part: 85803900 *Qty: 1 COMPL. FUEL FILLER FLAP ACTUATOR -Applicable from Ass. No. 114558 up to Ass. No. 117353- -Applicable after depletion of 84483700- Call
Location: 1 Prev | Next Part: 86009000 *Qty: 1 COMPL. FUEL FILLER FLAP ACTUATOR -Applicable from Ass. No. 117354- -Applicable after depletion of 85803900- Call
Location: 2 Prev | Next Part: 67067600 *Qty: 1 SEAL RING FOR BASE $3.69
Location: 3 Prev | Next Part: 84506200 *Qty: 1 ACTUATOR BOWDEN CABLE -Applicable up to Ass. No. 114557- Call
Location: 3 Prev | Next Part: 85618500 *Qty: 1 ACTUATOR CHORD -Applicable from Ass. No. 114558- Call
Location: 4 Prev | Next Part: 11566227 *Qty: 2 SCREW -M5 X 14- Call
Location: 5 Prev | Next Part: 84046900 *Qty: 1 SPACER PLATE Call
Location: 6 Prev | Next Part: 83993500 *Qty: 1 STRIKER FOR ACTUATOR $8.81
Location: 7 Prev | Next Part: 14059111 *Qty: 1 NUT -M5- -No longer supplied- -Replaced by 14059114- $0.90
Location: 7 Prev | Next Part: 14059114 *Qty: 1 NUT $0.90
Location: 8 Prev | Next Part: 84933800 *Qty: 1 RUBBER PAD Call
Location: 9 Prev | Next Part: 84307600 *Qty: 1 INTERNAL COVER Call
Location: 10 Prev | Next Part: 83993700 *Qty: 1 COMPL. HINGE $107.21
Location: 11 Prev | Next Part: 11566227 *Qty: 2 SCREW -M5 X 14- Call
Location: 12 Prev | Next Part: 84716500 *Qty: 1 DRAIN PIPE Call
Location: 13 Prev | Next Part: 13433570 *Qty: 2 COLLAR $0.92
Location: 14 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 84307211 *Qty: 1 COMPL. FUEL FILLER FLAP $220.28
Location: 16 Prev | Next Part: 14059111 *Qty: 2 NUT -M5- -No longer supplied- -Replaced by 14059114- $0.90
Location: 16 Prev | Next Part: 14059114 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 177553 *Qty: 5 RING CLAMP $0.90
Location: 18 Prev | Next Part: 81535200 *Qty: 1 GROMMET WITH MEMBRANE $38.96
Location: 19 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 10396180 *Qty: 1 RING $1.29

* Quantity shown indicates the number of pieces used in the diagram.
