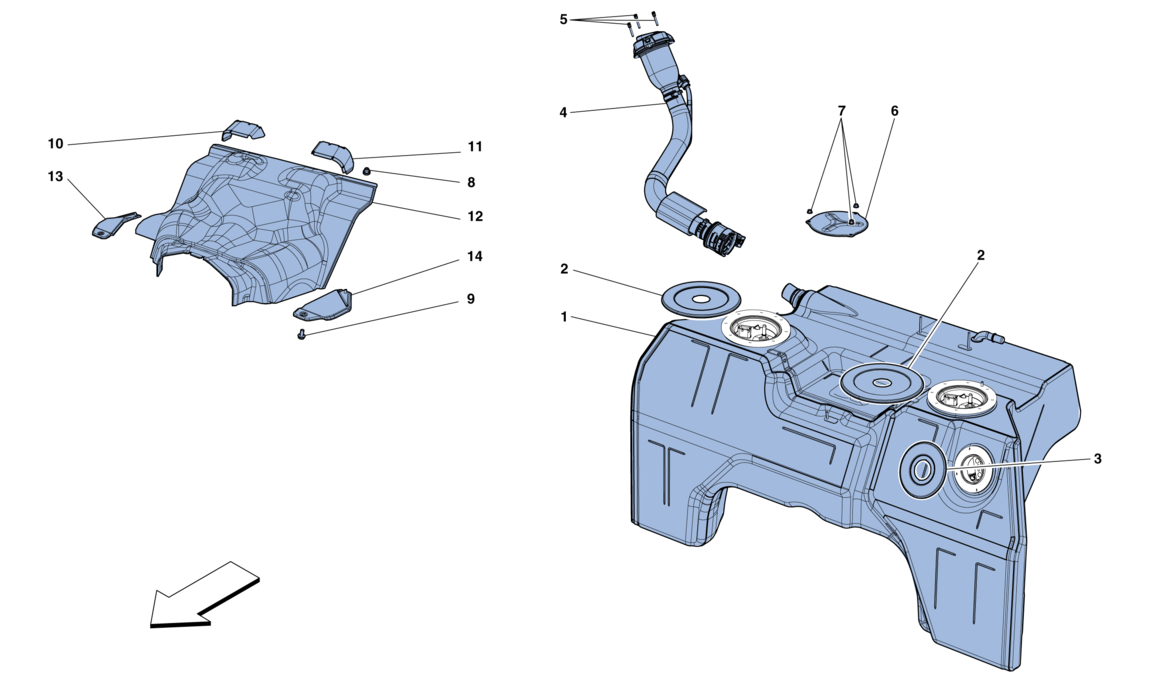

FUEL TANK AND FILLER NECK

Go to Split View

FUEL TANK AND FILLER NECK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 288622 *Qty: 1 FUEL TANK -No longer supplied. Order complete tank, table 10 pos.35- Call
Location: 2 Prev | Next Part: 250481 *Qty: 2 INSPECTION CAP $51.84
Location: 3 Prev | Next Part: 250480 *Qty: 1 INSPECTION CAP $29.92
Location: 4 Prev | Next Part: 291131 *Qty: 1 FUEL FILLER NECK COMPLETE WITH PIPES $1,661.40
Location: 5 Prev | Next Part: 268916 *Qty: 3 SCREW -M5 X 25- $6.66
Location: 6 Prev | Next Part: 244762 *Qty: 1 INSPECTION COVER $24.51
Location: 7 Prev | Next Part: 14040514 *Qty: 3 NUT $0.90
Location: 8 Prev | Next Part: 14039511 *Qty: 3 NUT $0.90
Location: 9 Prev | Next Part: 16287024 *Qty: 4 SCREW -M8 X 16- $0.90
Location: 10 Prev | Next Part: 290169 *Qty: 1 REAR RH BRACKET Call
Location: 11 Prev | Next Part: 290168 *Qty: 1 REAR LH BRACKET Call
Location: 12 Prev | Next Part: 290459 *Qty: 1 HEAT INSULATION Call
Location: 13 Prev | Next Part: 287252 *Qty: 1 FRONT RH BRACKET Call
Location: 14 Prev | Next Part: 287250 *Qty: 1 FRONT LH BRACKET Call

* Quantity shown indicates the number of pieces used in the diagram.
