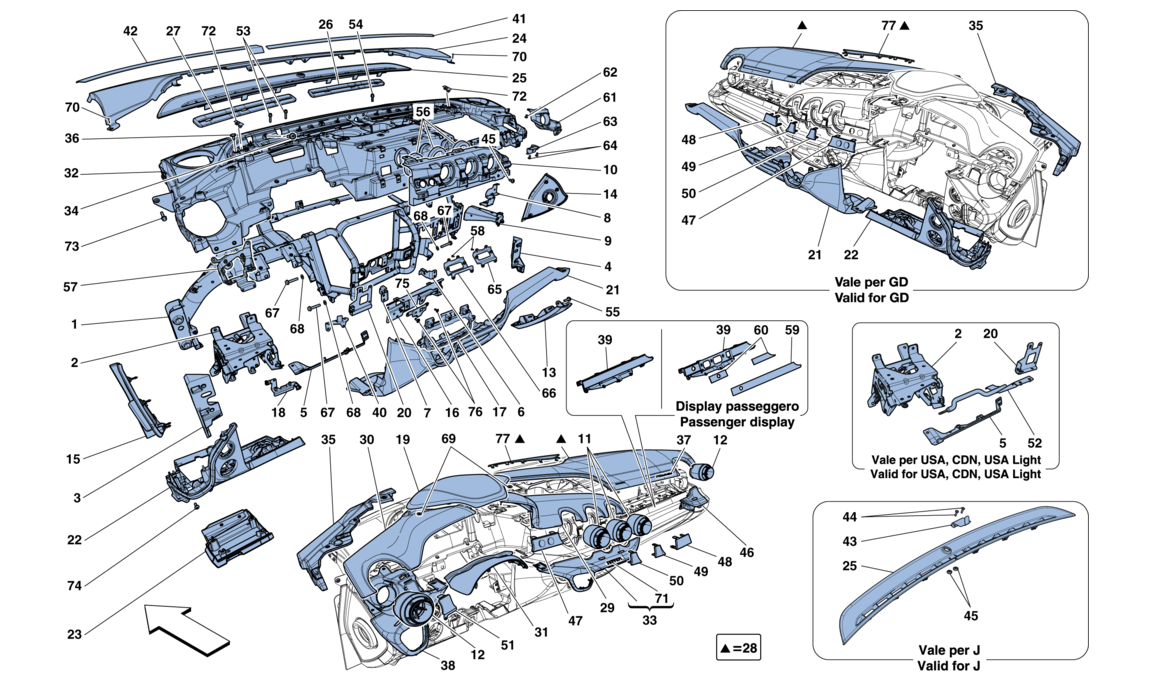

DASHBOARD

DASHBOARD

Location Part # Quantity* Description Price Add To Cart
1 84494600 1 DASHBOARD CROSS MEMBER -Not for RHD- -Applicable up to Ass. No. 114045- Unavailable
1 85108400 1 DASHBOARD CROSS MEMBER -Not for RHD- -Applicable from Ass. No. 114046- Unavailable
1 84957900 1 DASHBOARD CROSS MEMBER -Applicable for RHD- Unavailable
2 84494300 1 BODY COMPUTER BRACKET -Not for USA, CDN, RHD, USA LIGHT- Unavailable
2 85090300 1 BODY COMPUTER BRACKET -Applicable for USA, CDN, USA LIGHT- $233.35
2 85567500 1 BODY COMPUTER BRACKET -Applicable for RHD- -Applicable up to Ass. No. 114049- Unavailable
2 85655000 1 BODY COMPUTER BRACKET -Applicable for RHD- -Applicable from Ass. No. 114050- Unavailable
3 80519100 1 LH LATERAL BODYSHELL BRACKET $79.07
4 80637100 1 RH LATERAL BODYSHELL BRACKET $79.07
5 84494400 1 LOWER UNDER DRIVER SEAT BRACKET -Not for USA, CDN, RHD, USA LIGHT- Unavailable
5 85090400 1 LOWER UNDER DRIVER SEAT BRACKET -Applicable for USA, CDN, USA LIGHT- $45.39
5 84957400 1 LOWER UNDER DRIVER SEAT BRACKET -Applicable for RHD- Unavailable
6 82190000 1 RH AC UNIT BRACKET Unavailable
7 82190100 1 LH AC UNIT BRACKET Unavailable
8 82718500 1 FIREWALL BRACKET -Not for RHD- Unavailable
8 83921400 1 FIREWALL BRACKET -Applicable for RHD- Unavailable
9 84495800 1 RH LATERAL GLOVE COMPARTMENT BRACKET -Not for RHD- Unavailable
9 84959700 1 LH GLOVE COMPARTMENT LATERAL BRACKET -Applicable for RHD- Unavailable
10 84490800 1 CENTRAL AIR VENT MOUNT -Not for RHD- Unavailable
10 84959200 1 CENTRAL AIR VENT MOUNT -Applicable for RHD- Unavailable
11 84555500 3 CENTRE AIR VENT -Applicable up to Ass. No. 120527- $467.73
11 86285500 3 CENTRE AIR VENT -Applicable from Ass. No. 120528- Unavailable
11 84821500 3 CENTRE AIR VENT -Carbon version- -Applicable until depletion- Unavailable
11 85836800 3 CENTRE AIR VENT -Carbon version- -Applicable up to Ass. No. 120527- -Applicable after depletion of 84821500- Unavailable
11 86285300 3 CENTRE AIR VENT -Carbon version- -Applicable from Ass. No. 120528- -Applicable after depletion of 84821500- Unavailable
12 84147700 2 LATERAL AIR VENT -Applicable up to Ass. No. 120527- $477.09
12 86285400 2 LATERAL AIR VENT -Applicable from Ass. No. 120528- Unavailable
12 84821400 2 LATERAL AIR VENT -Carbon version- -Applicable until depletion- Unavailable
12 85836700 2 LATERAL AIR VENT -Carbon version- -Applicable up to Ass. No. 120527- -Applicable after depletion of 84821400- Unavailable
12 86285200 2 LATERAL AIR VENT -Carbon version- -Applicable from Ass. No. 120528- -Applicable after depletion of 84821400- Unavailable
13 844953.. 1 RH LATERAL TRIM -Leather- -Not for RHD- Unavailable
13 849584.. 1 LH LATERAL TRIM -Leather- -Applicable for RHD- Unavailable
13 852628.. 1 RH LATERAL TRIM -Alcantara- -Not for RHD- Unavailable
13 852657.. 1 LH LATERAL TRIM -Alcantara- -Applicable for RHD- Unavailable
14 844740.. 1 RH DASHBOARD END PANEL -Leather- Unavailable
14 852608.. 1 RH DASHBOARD END PANEL -Alcantara- Unavailable
15 844737.. 1 LH DASHBOARD END PANEL -Leather- Unavailable
15 852605.. 1 LH DASHBOARD END PANEL -Alcantara- Unavailable
16 84507000 1 CENTRE DASHBOARD BRACKET -Not for RHD- Unavailable
16 84958300 1 CENTRE DASHBOARD BRACKET -Applicable for RHD- Unavailable
17 844951.. 1 AC CONTROL PANEL TRIM -Leather- -Not for RHD- Unavailable
17 849581.. 1 AC CONTROL PANEL TRIM -Leather- -Applicable for RHD- Unavailable
17 852626.. 1 AC CONTROL PANEL TRIM -Alcantara- -Not for RHD- Unavailable
17 852655.. 1 AC CONTROL PANEL TRIM -Alcantara- -Applicable for RHD- Unavailable
18 84937900 1 OBD BRACKET -Not for RHD- Unavailable
18 84959600 1 OBD BRACKET -Applicable for RHD- Unavailable
19 844700.. 1 CENTRAL BINNACLE TRIM -STC1- -STC2- Unavailable
20 84683600 1 LH DASHBOARD BRACKET -Not for USA, CDN, RHD, USA LIGHT- Unavailable
20 85133700 1 LH DASHBOARD BRACKET -Applicable for USA, CDN, USA LIGHT- $123.16
20 84958200 1 RH DASHBOARD BRACKET -Applicable for RHD- Unavailable
21 844947.. 1 CENTRE PART OF DASHBOARD -Leather- -STC1- -STC2- -Not for RHD- -Applicable up to Ass. No. 119616- -Applicable until depletion- Unavailable
21 862498.. 1 CENTRE PART OF DASHBOARD -Leather- -STC1- -STC2- -Not for RHD- -Applicable from Ass. No. 119617- -Applicable after depletion of 844947..- Unavailable
21 849580.. 1 CENTRE PART OF DASHBOARD -Leather- -STC1- -STC2- -Applicable for RHD- Unavailable
21 852624.. 1 CENTRE PART OF DASHBOARD -Alcantara- -STC1- -STC2- -Not for RHD- -Applicable up to Ass. No. 119616- -Applicable until depletion- Unavailable
21 862501.. 1 CENTRE PART OF DASHBOARD -Alcantara- -STC1- -STC2- -Not for RHD- -Applicable from Ass. No. 119617- -Applicable after depletion of 852624..- Unavailable
21 852652.. 1 CENTRE PART OF DASHBOARD -Alcantara- -STC1- -STC2- -Applicable for RHD- Unavailable
22 846853.. 1 DRIVER SIDE UNDERDASH TRIM -Leather- -Not for RHD- Unavailable
22 855659.. 1 DRIVER SIDE UNDERDASH TRIM -Leather- -Applicable for RHD- Unavailable
22 852617.. 1 DRIVER SIDE UNDERDASH TRIM -Alcantara- -Not for RHD- Unavailable
22 855658.. 1 DRIVER SIDE UNDERDASH TRIM -Alcantara- -Applicable for RHD- Unavailable
22 844746.. 1 DRIVER SIDE UNDERDASH TRIM -Leather- -Applicable for electric steering column- -Not for RHD- Unavailable
22 855656.. 1 DRIVER SIDE UNDERDASH TRIM -Leather- -Applicable for electric steering column- -Applicable for RHD- Unavailable
22 852614.. 1 DRIVER SIDE UNDERDASH TRIM -Alcantara- -Applicable for electric steering column- -Not for RHD- Unavailable
22 855657.. 1 DRIVER SIDE UNDERDASH TRIM -Alcantara- -Applicable for electric steering column- -Applicable for RHD- Unavailable
23 844743.. 1 FUSE BOX COVER -Leather- -Not for RHD- Unavailable
23 855668.. 1 FUSE BOX COVER -Leather- -Applicable for RHD- -Applicable up to Ass. No. 114049- Unavailable
23 856548.. 1 FUSE BOX COVER -Leather- -Applicable for RHD- -Applicable from Ass. No. 114050- Unavailable
23 852611.. 1 FUSE BOX COVER -Alcantara- -Not for RHD- Unavailable
23 855674.. 1 FUSE BOX COVER -Alcantara- -Applicable for RHD- -Applicable up to Ass. No. 114049- Unavailable
23 856551.. 1 FUSE BOX COVER -Alcantara- -Applicable for RHD- -Applicable from Ass. No. 114050- Unavailable
24 844887.. 1 FRONT GRILLE -Applicable up to Ass. No. 114045- Unavailable
24 850757.. 1 FRONT GRILLE -Applicable from Ass. No. 114046- Unavailable
25 847147.. 1 DEFROSTER VENT SURROUND -Not for J, RHD- Unavailable
25 852533.. 1 DEFROSTER SURROUND -Applicable for J, RHD- Unavailable
26 84650300 1 RH WINDSCREEN DEFROSTER SEAL Unavailable
27 84536400 1 LH WINDSCREEN DEFROSTER SEAL Unavailable
28 846444.. 1 UPPER RH PART -STC1- -STC2- -Not for RHD- -Applicable up to Ass. No. 114045- Unavailable
28 851073.. 1 UPPER RH PART -STC1- -STC2- -Not for RHD- -Applicable from Ass. No. 114046- Unavailable
28 849548.. 1 LH UPPER PART -STC1- -STC2- -Applicable for RHD- Unavailable
28 844725.. 1 UPPER RH PART -Premium Hi-Fi version- -STC1- -STC2- -Not for RHD- -Applicable up to Ass. No. 114045- Unavailable
28 851076.. 1 UPPER RH PART -Premium Hi-Fi version- -STC1- -STC2- -Not for RHD- -Applicable from Ass. No. 114046- Unavailable
28 849545.. 1 LH UPPER PART -Premium Hi-Fi version- -STC1- -STC2- -Applicable for RHD- Unavailable
29 844712.. 1 CENTRAL AIR VENT COVER -STC1- -STC2- -Not for RHD- Unavailable
29 849536.. 1 CENTRAL AIR VENT COVER -STC1- -STC2- -Applicable for RHD- Unavailable
30 844705.. 1 LH LATERAL AIR VENT COVER -STC1- -STC2- -Not for RHD- Unavailable
30 849535.. 1 LH LATERAL AIR VENT COVER -STC1- -STC2- -Applicable for RHD- Unavailable
31 842008.. 1 BELLOW Unavailable
32 84472000 1 DASHBOARD SUBSTRUCTURE -Not for RHD- -Applicable up to Ass. No. 114045- Unavailable
32 85106700 1 DASHBOARD SUBSTRUCTURE -Not for RHD- -Applicable from Ass. No. 114046- Unavailable
32 84953700 1 DASHBOARD SUBSTRUCTURE -Applicable for RHD- Unavailable
33 84473500 1 CENTRE LIP -Not for RHD- -Applicable up to Ass. No. 121001- $1,513.85
33 85511400 1 CENTRE LIP -Not for RHD- -Applicable from Ass. No. 121002- Unavailable
33 84954900 1 CENTRE LIP -Applicable for RHD- -Applicable up to Ass. No. 119675- Unavailable
33 85614000 1 CENTRE LIP -Applicable for RHD- -Applicable from Ass. No. 119676- Unavailable
33 84722400 1 CENTRE LIP -Carbon version- -Does not include Ferrari badge, which must be ordered separately- -Not for RHD- Unavailable
33 84963900 1 CENTRE LIP -Carbon version- -Does not include Ferrari badge, which must be ordered separately- -Applicable for RHD- Unavailable
34 192623 4 SCREW -M5 X 30- -Applicable until depletion- Unavailable
34 85834100 4 SCREW -M5 X 30- -Applicable after depletion of 192623- Unavailable
35 844897.. 1 LH LATERAL TRIM -Not for RHD- -Applicable up to Ass. No. 114045- Unavailable
35 851085.. 1 LH LATERAL TRIM -Not for RHD- -Applicable from Ass. No. 114046- Unavailable
35 849589.. 1 RH LATERAL TRIM -Applicable for RHD- Unavailable
36 15782504 4 SCREW -M3.5 X 10- Unavailable
36 65212000 8 SCREW -M5 X 8- -No longer supplied- -Replaced by 85691900- $1.30
36 85691900 8 SCREW -M5 X 8- Unavailable
37 85045100 1 F12 BERLINETTA' BADGE Unavailable
38 84509300 1 TFT CONTROL PANEL SURROUND -Not for RHD- -Applicable up to Ass. No. 121001- Unavailable
38 85511300 1 TFT CONTROL PANEL SURROUND -Not for RHD- -Applicable from Ass. No. 121002- Unavailable
38 84958600 1 TFT CONTROL PANEL SURROUND -Applicable for RHD- -Applicable up to Ass. No. 119675- Unavailable
38 85613800 1 TFT CONTROL PANEL SURROUND -Applicable for RHD- -Applicable from Ass. No. 119676- Unavailable
38 84790900 1 TFT CONTROL PANEL SURROUND -Carbon version- -Not for RHD- Unavailable
38 84967800 1 TFT CONTROL PANEL SURROUND -Carbon version- -Applicable for RHD- Unavailable
39 84700300 1 COMPL. RH COSMETIC STRIP -Not for passenger display version- -Not for RHD- $208.28
39 84960000 1 COMPL. LH COSMETIC STRIP -Not for passenger display version- -Applicable for RHD- Unavailable
39 84700500 1 COSMETIC STRIP MOUNTING BRACKET -Version with passenger display- -Not for RHD- -No longer supplied- -Replaced by 85284400- Unavailable
39 85284400 1 COSMETIC STRIP MOUNTING BRACKET -Version with passenger display- -Not for RHD- $218.43
39 85362200 1 COSMETIC STRIP MOUNTING BRACKET -Version with passenger display- -Applicable for RHD- Unavailable
40 84538500 1 ICP CONTROL BRACKET -Not for RHD- Unavailable
40 84955200 1 TFT CONTROL BRACKET -Applicable for RHD- Unavailable
41 84801000 1 RH CROSS MEMBER COVER Unavailable
42 84801100 1 LH CROSS MEMBER COVER Unavailable
43 85243500 1 BRACKET -Applicable for J- Unavailable
44 63343400 2 SCREW -M4 X 15- -Applicable for J- $3.17
45 14039414 2 NUT -Applicable for J- $0.90
46 84490200 1 RH LATERAL SURROUND -Not for RHD- -Applicable up to Ass. No. 121001- $269.02
46 85511100 1 RH LATERAL SURROUND -Not for RHD- -Applicable from Ass. No. 121002- Unavailable
46 84960200 1 LH LATERAL SURROUND -Applicable for RHD- -Applicable up to Ass. No. 119675- Unavailable
46 85613900 1 LH LATERAL SURROUND -Applicable for RHD- -Applicable from Ass. No. 119676- Unavailable
46 84791400 1 RH LATERAL SURROUND -Carbon version- -Not for RHD- Unavailable
46 84968200 1 LH LATERAL SURROUND -Carbon version- -Applicable for RHD- Unavailable
47 84699800 1 LH SURROUND FOR CENTRAL VENTS -Not for RHD- Unavailable
47 84959300 1 RH SURROUND FOR CENTRAL VENTS -Applicable for RHD- Unavailable
47 84730900 1 LH SURROUND FOR CENTRAL VENTS -Version with dual view camera or lift system- -Not for RHD- Unavailable
47 84959500 1 RH SURROUND FOR CENTRAL VENTS -Version with dual view camera or lift system- -Applicable for RHD- Unavailable
47 84731000 1 LH SURROUND FOR CENTRAL VENTS -Version with dual view camera and lift system- -Not for RHD- Unavailable
47 84959400 1 RH SURROUND FOR CENTRAL VENTS -Version with dual view camera and lift system- -Applicable for RHD- Unavailable
48 84699900 1 RH SURROUND FOR CENTRAL VENTS -Not for RHD- Unavailable
48 84968800 1 LH SURROUND FOR CENTRAL VENTS -Applicable for RHD- Unavailable
49 84700100 1 CENTRE RH SURROUND FOR CENTRAL VENTS -Not for RHD- Unavailable
49 84969000 1 CENTRE LH SURROUND FOR CENTRAL VENTS -Applicable for RHD- Unavailable
50 84700000 1 CENTRE LH SURROUND FOR CENTRAL VENTS -Not for RHD- Unavailable
50 84968900 1 CENTRE RH SURROUND FOR CENTRAL VENTS -Applicable for RHD- Unavailable
51 84699700 1 LH LATERAL SURROUND -Not for RHD- $78.42
51 84958500 1 RH LATERAL SURROUND -Applicable for RHD- Unavailable
52 85090500 1 LH LOWER DASHBOARD BRACKET -Applicable for USA, CDN, USA LIGHT- $272.22
53 84939300 2 SCREW -M6 X 70- Unavailable
54 231625 1 SCREW -M6 X 50- Unavailable
55 68176500 1 SCREW -M5 X 20- Unavailable
56 84564200 3 GASKET Unavailable
57 84799200 1 BRACKET -Not for RHD- Unavailable
57 84958800 1 BRACKET -Applicable for RHD- Unavailable
58 85109800 8 SCREW -M3 X 8- Unavailable
59 84792200 1 PASSENGER DISPLAY GLASS -Version with passenger display- -Not for RHD- $122.51
59 84969200 1 PASSENGER DISPLAY GLASS -Version with passenger display- -Applicable for RHD- Unavailable
60 85309800 1 ADHESIVE DECAL KIT -Version with passenger display- $25.19
61 84690900 1 RH VENT LATERAL MOUNT -Not for RHD- Unavailable
61 84959100 1 LH VENT LATERAL MOUNT -Applicable for RHD- Unavailable
62 64460500 4 SCREW -M5 X 10- -No longer supplied- -Replaced by 85692000- Unavailable
62 85692000 4 SCREW -M5 X 10- Unavailable
63 84489900 1 RH VENT CONTROL BRACKET -Not for RHD- -Applicable up to Ass. No. 119616- -Applicable until depletion- Unavailable
63 86250200 1 RH VENT CONTROL BRACKET -Not for RHD- -Applicable from Ass. No. 119617- -Applicable after depletion of 84489900- Unavailable
63 84968300 1 LH VENT CONTROL BRACKET -Applicable for RHD- Unavailable
64 65752800 2 SCREW -M4 X 10- $2.66
65 84650500 1 PASSENGER VENT CONTROL BRACKET -Not for RHD- Unavailable
65 84955000 1 PASSENGER AIR VENT CONTROL BRACKET -Applicable for RHD- Unavailable
66 84650600 1 DRIVER VENT CONTROL BRACKET -Not for RHD- Unavailable
66 84955100 1 DRIVER VENT CONTROL BRACKET -Not for RHD- Unavailable
67 16287624 3 SCREW $3.02
68 10519624 3 WASHER -No longer supplied- -Replaced by 12646724- Unavailable
68 12646724 3 WASHER $0.90
69 12638178 2 WASHER Unavailable
70 15538777 2 SCREW Unavailable
71 80963700 1 FERRARI BADGE $88.18
72 84761600 2 CLIP -Applicable from Ass. No. 114046- Unavailable
73 16284934 2 FLANGED SCREW -M5 X 10- Unavailable
74 65212000 4 SCREW -M5 X 8- $1.30
75 84785500 1 CAN BOX FASTENER BRACKET Unavailable
76 65366700 2 SCREW -M5 X 12- Unavailable
77 844732.. 1 SPEAKER GRILLE -Leather- -Not for RHD- Unavailable
77 849635.. 1 SPEAKER GRILLE -Leather- -Applicable for RHD- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
