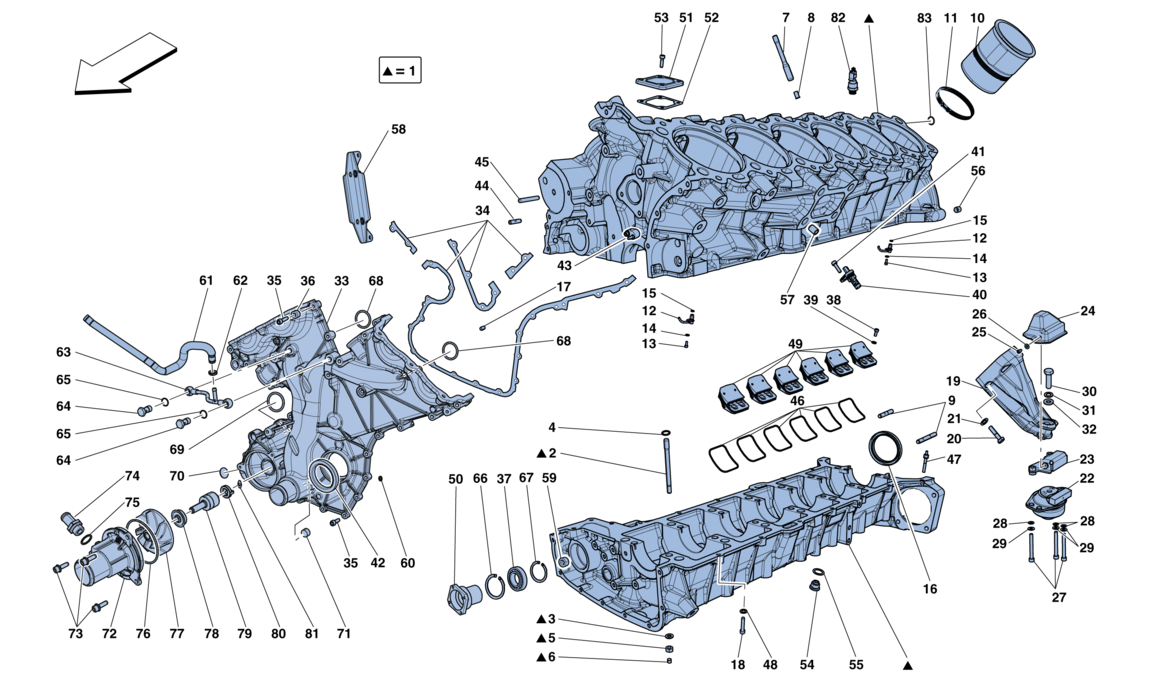

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 290235 *Qty: 1 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY -Applicable until depletion- Call
Location: 1 Prev | Next Part: 303921 *Qty: 1 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY -Applicable after depletion of 290235- Call
Location: 2 Prev | Next Part: 217796 *Qty: 14 STUD BOLT -M12 X 1.75- -Outer positioning- $5.90
Location: 2 Prev | Next Part: 190426 *Qty: 14 STUD BOLT -M12 X 1.75- -Inner positioning- $10.72
Location: 3 Prev | Next Part: 178348 *Qty: 28 WASHER $0.92
Location: 4 Prev | Next Part: 134704 *Qty: 28 O-RING $0.90
Location: 5 Prev | Next Part: 133988 *Qty: 28 NUT $0.90
Location: 6 Prev | Next Part: 176421 *Qty: 14 ALIGNMENT DOWEL $5.06
Location: 7 Prev | Next Part: 217968 *Qty: 28 STUD BOLT $8.02
Location: 8 Prev | Next Part: 185360 *Qty: 4 ALIGNMENT DOWEL $3.50
Location: 9 Prev | Next Part: 13546834 *Qty: 3 STUD BOLT -M10 X 1.25 X 20- -Fastening gearbox housing- $2.04
Location: 9 Prev | Next Part: 13547234 *Qty: 1 STUD BOLT -M10 X 1.25 X 20- -Fastening gearbox housing- $4.11
Location: 9 Prev | Next Part: 13546934 *Qty: 2 STUD BOLT -M10 X 1.25 X 20- -Fastening gearbox housing, dowel section- $2.12
Location: 9 Prev | Next Part: 13546734 *Qty: 1 STUD BOLT -M10 X 1.25 X 20- -Fastening gearbox housing to crankcase- $1.71
Location: 10 Prev | Next Part: 266366 *Qty: 12 CYLINDER SLEEVE -D. 94- $314.84
Location: 11 Prev | Next Part: 186251 *Qty: 36 O-RING $3.11
Location: 12 Prev | Next Part: 264087 *Qty: 12 COMPL. PISTON COOLING NOZZLE Call
Location: 13 Prev | Next Part: 14302921 *Qty: 12 TCEI SCREW -M4 X 10- $0.90
Location: 14 Prev | Next Part: 11181474 *Qty: 12 WASHER $0.90
Location: 15 Prev | Next Part: 164877 *Qty: 12 O-RING $0.90
Location: 16 Prev | Next Part: 240214 *Qty: 1 GASKET $63.40
Location: 17 Prev | Next Part: 175611 *Qty: 2 ALIGNMENT DOWEL -Fastening front cover on crankcase- $2.07
Location: 18 Prev | Next Part: 231620 *Qty: 12 SCREW -M6 X 25- -Fastening crankcase to lower crankcase shell- $0.90
Location: 18 Prev | Next Part: 231624 *Qty: 1 SCREW -M6 X 45- -Fastening crankcase to lower crankcase shell- -Rear RH pump side- $0.90
Location: 19 Prev | Next Part: 267423 *Qty: 1 RH ENGINE STRUT Call
Location: 19 Prev | Next Part: 267424 *Qty: 1 LH ENGINE STRUT Call
Location: 20 Prev | Next Part: 11234734 *Qty: 8 SCREW -M10 X 1.25 X 45- -Fastening strut to crankcase- $1.04
Location: 21 Prev | Next Part: 11190574 *Qty: 8 WASHER -Fastening strut to crankcase- $0.90
Location: 22 Prev | Next Part: 259757 *Qty: 1 COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH $454.88
Location: 22 Prev | Next Part: 259756 *Qty: 1 COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH $454.88
Location: 23 Prev | Next Part: 269828 *Qty: 1 RH ENGINE MOUNTING BUSH LIMITER BRACKET Call
Location: 23 Prev | Next Part: 269829 *Qty: 1 LH ENGINE MOUNTING BUSH LIMITER BRACKET Call
Location: 24 Prev | Next Part: 277259 *Qty: 2 BUSH HEAT SHIELD Call
Location: 25 Prev | Next Part: 14305024 *Qty: 4 SCREW -M6 X 10- $0.90
Location: 26 Prev | Next Part: 12644404 *Qty: 4 WASHER -No longer supplied- -Replaced by 12647624- Superseded
Location: 26 Prev | Next Part: 12647624 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 285972 *Qty: 6 SCREW -M10 X 1.25 X 85- Call
Location: 28 Prev | Next Part: 127497 *Qty: 6 WASHER $0.90
Location: 29 Prev | Next Part: 14496624 *Qty: 6 WASHER $0.90
Location: 30 Prev | Next Part: 15215834 *Qty: 2 SCREW -M12 X 1.75 X 60- Call
Location: 31 Prev | Next Part: 13550521 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 127498 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 293172 *Qty: 1 FRONT CRANKCASE COVER -Applicable up to Ass. No. 122670- -Applicable until depletion- Call
Location: 33 Prev | Next Part: 301820 *Qty: 1 FRONT CRANKCASE COVER -Applicable from Ass. No. 122671- -Applicable after depletion of 293172- Call
Location: 34 Prev | Next Part: 290006 *Qty: 1 GASKET BETWEEN CRANKCASE AND FRONT COVER $34.68
Location: 35 Prev | Next Part: 14305924 *Qty: 2 SCREW -M6 X 45- Superseded
Location: 35 Prev | Next Part: 10589624 *Qty: 3 SCREW -M6 X 80- $0.90
Location: 35 Prev | Next Part: 14309224 *Qty: 1 SCREW $0.90
Location: 35 Prev | Next Part: 231620 *Qty: 6 SCREW -M6 X 25- $0.90
Location: 35 Prev | Next Part: 231621 *Qty: 6 SCREW -M6 X 30- $0.90
Location: 35 Prev | Next Part: 231625 *Qty: 11 SCREW -M6 X 50- $0.90
Location: 36 Prev | Next Part: 281356 *Qty: 1 SHIM Call
Location: 37 Prev | Next Part: 128799 *Qty: 1 BEARING Call
Location: 38 Prev | Next Part: 13026924 *Qty: 12 SCREW -M6 X 14- $0.90
Location: 39 Prev | Next Part: 11197774 *Qty: 14 WASHER Superseded
Location: 40 Prev | Next Part: 276125 *Qty: 1 RPM SENSOR $143.00
Location: 41 Prev | Next Part: 231618 *Qty: 1 SCREW -M6 X 20- $0.90
Location: 42 Prev | Next Part: 210359 *Qty: 1 GASKET Call
Location: 43 Prev | Next Part: 290106 *Qty: 1 COMPL. CHAIN COOLING NOZZLE -No longer supplied- -Replaced by 294944- Call
Location: 43 Prev | Next Part: 294944 *Qty: 1 COMPL. CHAIN COOLING NOZZLE Call
Location: 44 Prev | Next Part: 13543124 *Qty: 1 STUD BOLT -M8 X 16- -Shank length 16 mm- $0.99
Location: 45 Prev | Next Part: 13543824 *Qty: 1 STUD BOLT -M8 X 16- -Shank length 40 mm- Superseded
Location: 46 Prev | Next Part: 154691 *Qty: 6 GASKET $2.07
Location: 47 Prev | Next Part: 219283 *Qty: 1 STUD BOLT -Fastening crankcase to rear LH lower crankcase shell- $16.78
Location: 48 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 49 Prev | Next Part: 255136 *Qty: 6 COMPLETE VALVE HOLDER $260.90
Location: 50 Prev | Next Part: 290282 *Qty: 1 PUMP DRIVE JOINT -No longer supplied- -Replaced by 295132- Call
Location: 50 Prev | Next Part: 294950 *Qty: 1 PUMP DRIVE JOINT -No longer supplied- -Replaced by 295132- Call
Location: 50 Prev | Next Part: 295132 *Qty: 1 PUMP DRIVE JOINT Call
Location: 51 Prev | Next Part: 208451 *Qty: 1 INSPECTION HATCH COVER $34.61
Location: 52 Prev | Next Part: 248026 *Qty: 1 GASKET $3.49
Location: 53 Prev | Next Part: 231618 *Qty: 4 SCREW -M6 X 20- $0.90
Location: 54 Prev | Next Part: 104280 *Qty: 1 MAGNETIC PLUG $6.54
Location: 55 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 56 Prev | Next Part: 100052 *Qty: 2 ALIGNMENT DOWEL $2.77
Location: 57 Prev | Next Part: 218440 *Qty: 8 THREADED INSERT Call
Location: 58 Prev | Next Part: 280123 *Qty: 1 MOUNTING BRACKET FOR CENTRAL ENGINE CABLES Call
Location: 59 Prev | Next Part: 127635 *Qty: 1 THREADED PLUG -M18 X 11 X 1.5- $4.35
Location: 60 Prev | Next Part: 216292 *Qty: 6 GASKET $4.10
Location: 61 Prev | Next Part: 289043 *Qty: 1 RUBBER WATER DRAIN PIPE $69.79
Location: 62 Prev | Next Part: 177995 *Qty: 1 RING CLAMP -No longer supplied- -Replaced by 13125470- $1.43
Location: 62 Prev | Next Part: 13125470 *Qty: 1 RING CLAMP Call
Location: 63 Prev | Next Part: 283576 *Qty: 1 COMPL. WATER DRAIN PIPE -No longer supplied- -Replaced by 294135- Call
Location: 63 Prev | Next Part: 294135 *Qty: 1 COMPL. WATER DRAIN PIPE Call
Location: 64 Prev | Next Part: 211847 *Qty: 2 PIPE UNION $13.94
Location: 65 Prev | Next Part: 292186 *Qty: 2 DUAL GASKET $3.57
Location: 66 Prev | Next Part: 11061576 *Qty: 1 SEEGER RING $1.98
Location: 67 Prev | Next Part: 11068376 *Qty: 1 SEEGER RING $0.90
Location: 68 Prev | Next Part: 183010 *Qty: 2 O-RING $1.84
Location: 69 Prev | Next Part: 289278 *Qty: 1 O-RING Call
Location: 70 Prev | Next Part: 10159001 *Qty: 1 CAP Call
Location: 71 Prev | Next Part: 127635 *Qty: 1 THREADED PLUG -M18 X 11 X 1.5- $4.35
Location: 72 Prev | Next Part: 288787 *Qty: 1 WATER PUMP COVER Call
Location: 73 Prev | Next Part: 231617 *Qty: 3 SCREW -M6 X 18- $0.90
Location: 74 Prev | Next Part: 253823 *Qty: 1 CONNECTOR $122.10
Location: 75 Prev | Next Part: 11270550 *Qty: 1 O-RING $0.90
Location: 76 Prev | Next Part: 253797 *Qty: 1 GASKET $7.81
Location: 77 Prev | Next Part: 253795 *Qty: 1 WATER PUMP ROTOR Call
Location: 78 Prev | Next Part: 252192 *Qty: 1 WATER PUMP GASKET $284.80
Location: 79 Prev | Next Part: 253794 *Qty: 1 WATER PUMP BEARING -No longer supplied- -Replaced by 295219- Call
Location: 79 Prev | Next Part: 295219 *Qty: 1 WATER PUMP BEARING Call
Location: 80 Prev | Next Part: 246470 *Qty: 1 JOINT -No longer supplied- -Replaced by 295218- Call
Location: 80 Prev | Next Part: 295218 *Qty: 1 JOINT Call
Location: 81 Prev | Next Part: 255939 *Qty: 1 CLIP Call
Location: 82 Prev | Next Part: 201207 *Qty: 1 PRESSURE TRANSMITTER -No longer supplied- -Replaced by 304074- $248.28
Location: 82 Prev | Next Part: 304074 *Qty: 1 PRESSURE TRANSMITTER Call
Location: 83 Prev | Next Part: 137192 *Qty: 1 O-RING $0.90

* Quantity shown indicates the number of pieces used in the diagram.
