CHASSIS COMPLETION

Go to Split View

CHASSIS COMPLETION

in cart

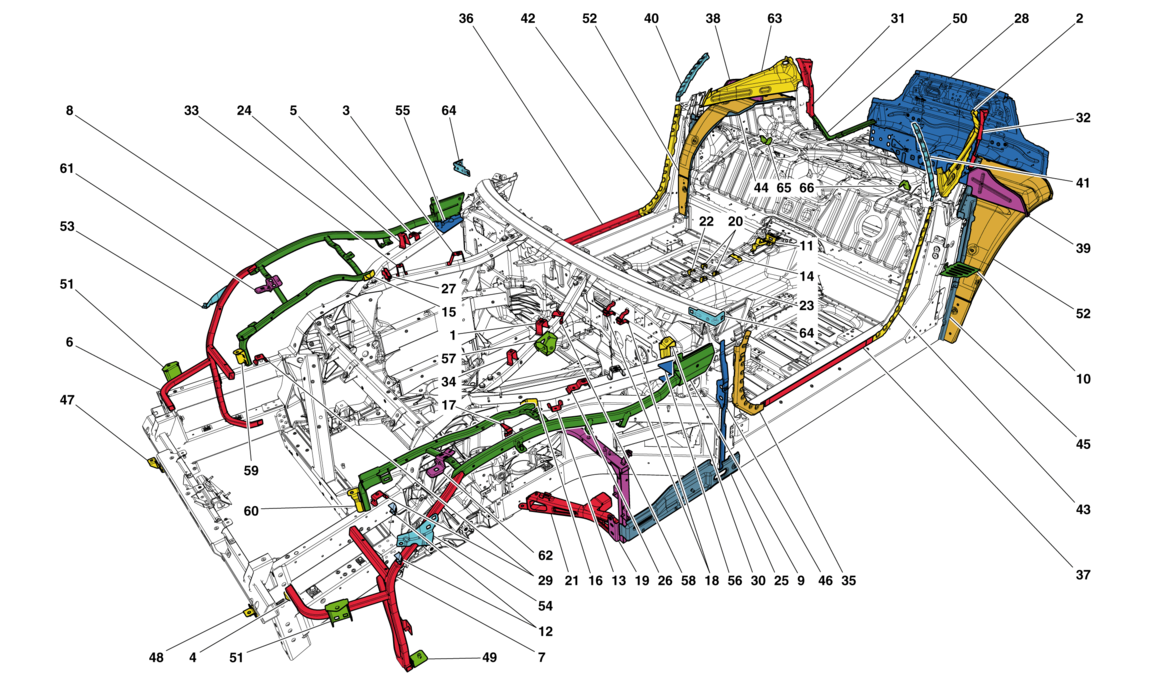

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 278365 *Qty: 1 INTERNAL LH UNDERWINDSCREEN TRAY BRACKET Call
Location: 2 Prev | Next Part: 84643700 *Qty: 1 LH LATERAL SUBSTRUCTURE Call
Location: 3 Prev | Next Part: 278395 *Qty: 1 INTERNAL RH UNDERWINDSCREEN TRAY BRACKET Call
Location: 4 Prev | Next Part: 83342500 *Qty: 2 INTERNAL FRONT CONNECTOR ELEMENT $12.49
Location: 5 Prev | Next Part: 278396 *Qty: 1 EXTERNAL RH UNDERWINDSCREEN TRAY BRACKET Call
Location: 6 Prev | Next Part: 84232600 *Qty: 1 FRONT TRELLIS FOR RH HEADLIGHT $337.79
Location: 7 Prev | Next Part: 84232700 *Qty: 1 FRONT TRELLIS FOR LH HEADLIGHT $337.79
Location: 8 Prev | Next Part: 84233000 *Qty: 1 FRONT RH FENDER TRELLIS Call
Location: 9 Prev | Next Part: 84233100 *Qty: 1 FRONT LH FENDER TRELLIS Call
Location: 10 Prev | Next Part: 84573000 *Qty: 2 PARTITION ON WHEELHOUSE Call
Location: 11 Prev | Next Part: 286416 *Qty: 1 REAR BRACKET FOR REAR FASTENER Call
Location: 12 Prev | Next Part: 271344 *Qty: 4 FRONT WHEEL BAY SHIELD FASTENER BRACKET $12.54
Location: 13 Prev | Next Part: 279847 *Qty: 1 SECONDARY AIR SYSTEM PIPE FASTENER BRACKET Call
Location: 14 Prev | Next Part: 286417 *Qty: 1 FRONT BRACKET FOR FRONT FASTENER Call
Location: 15 Prev | Next Part: 83557100 *Qty: 1 MOUNTING FOR INTERNAL RH FRONT FENDER TUBE Call
Location: 16 Prev | Next Part: 83557200 *Qty: 1 MOUNTING FOR INTERNAL LH FRONT FENDER TUBE Call
Location: 17 Prev | Next Part: 271348 *Qty: 1 RH REAR WHEEL BAY SHIELD FASTENER BRACKET $15.82
Location: 17 Prev | Next Part: 271346 *Qty: 1 LH REAR WHEEL BAY SHIELD FASTENER BRACKET $15.82
Location: 18 Prev | Next Part: 270773 *Qty: 2 FUEL PIPE FASTENER BRACKET Call
Location: 19 Prev | Next Part: 84137000 *Qty: 1 RH TRELLIS PILLAR -Not for GD- Call
Location: 19 Prev | Next Part: 85147900 *Qty: 1 RH TRELLIS PILLAR -Applicable for GD- Call
Location: 19 Prev | Next Part: 83450100 *Qty: 1 LH TRELLIS PILLAR -Not for GD- -No longer supplied- -Replaced by 85097800- Call
Location: 19 Prev | Next Part: 85097800 *Qty: 1 LH TRELLIS PILLAR -Not for GD- Call
Location: 19 Prev | Next Part: 85148200 *Qty: 1 LH TRELLIS PILLAR -Applicable for GD- Call
Location: 20 Prev | Next Part: 286418 *Qty: 2 REAR BRACKET FOR FRONT FASTENER Call
Location: 21 Prev | Next Part: 83783200 *Qty: 1 RH REAR TRELLIS CROSS-MEMBER Call
Location: 21 Prev | Next Part: 83783400 *Qty: 1 LH REAR TRELLIS CROSS-MEMBER Call
Location: 22 Prev | Next Part: 286420 *Qty: 1 RH BRACKET FOR FRONT FASTENER Call
Location: 23 Prev | Next Part: 286419 *Qty: 1 LH BRACKET FOR FRONT FASTENER Call
Location: 24 Prev | Next Part: 288328 *Qty: 1 REAR FASTENER BRACKET FOR RH ENGINE COVER Call
Location: 25 Prev | Next Part: 83033900 *Qty: 1 LOWER FASTENER BEAM FOR RH FENDER Call
Location: 25 Prev | Next Part: 83034000 *Qty: 1 LOWER FASTENER BEAM FOR LH FENDER Call
Location: 26 Prev | Next Part: 288606 *Qty: 1 LH ENGINE COVER BRACKET Call
Location: 27 Prev | Next Part: 270772 *Qty: 1 BLOW-BY PIPE FASTENER BRACKET Call
Location: 28 Prev | Next Part: 84185600 *Qty: 1 COMPL. BACK PANEL -Not for CINA, USA, CDN, GOLFO, USA LIGHT- Call
Location: 28 Prev | Next Part: 84977200 *Qty: 1 COMPL. BACK PANEL -Applicable for CINA, USA, CDN, GOLFO, USA LIGHT- Call
Location: 29 Prev | Next Part: 284573 *Qty: 2 INJECTION CABLE FASTENER BRACKET Call
Location: 30 Prev | Next Part: 84979600 *Qty: 1 LH WINDSCREEN WIPER FASTENER BRACKET -Not for GD- Call
Location: 30 Prev | Next Part: 84859500 *Qty: 1 RH WINDSCREEN WIPER FASTENER BRACKET -Applicable for GD- Call
Location: 31 Prev | Next Part: 84220300 *Qty: 1 REAR ELEMENT OF RH LATERAL SUBSTRUCTURE Call
Location: 32 Prev | Next Part: 85077600 *Qty: 1 REAR ELEMENT OF LH LATERAL SUBSTRUCTURE Call
Location: 33 Prev | Next Part: 288334 *Qty: 1 FASTENER BRACKET FOR RH ENGINE COVER Call
Location: 34 Prev | Next Part: 288652 *Qty: 1 FASTENER BRACKET FOR RH ENGINE COVER Call
Location: 35 Prev | Next Part: 84280900 *Qty: 1 PROFILE LINKING RH PILLAR WITH FLANK Call
Location: 35 Prev | Next Part: 84281000 *Qty: 1 PROFILE LINKING LH PILLAR WITH FLANK Call
Location: 36 Prev | Next Part: 83861400 *Qty: 1 LOWER RH DOOR SEAL PROFILE Call
Location: 37 Prev | Next Part: 83861500 *Qty: 1 LOWER LH DOOR SEAL PROFILE Call
Location: 38 Prev | Next Part: 84221100 *Qty: 1 RH EXTERNAL LATERAL SHIELD Call
Location: 39 Prev | Next Part: 84221200 *Qty: 1 LH EXTERNAL LATERAL SHIELD Call
Location: 40 Prev | Next Part: 84221900 *Qty: 1 UPPER RH PILLAR CONNECTOR PROFILE Call
Location: 41 Prev | Next Part: 84222000 *Qty: 1 UPPER LH PILLAR CONNECTOR PROFILE Call
Location: 42 Prev | Next Part: 84221700 *Qty: 1 PROFILE LINKING RH PILLAR WITH FLANK Call
Location: 43 Prev | Next Part: 84221800 *Qty: 1 PROFILE LINKING LH PILLAR WITH FLANK Call
Location: 44 Prev | Next Part: 84279800 *Qty: 1 RH FRONT FLANK SUBSTRUCTURE Call
Location: 45 Prev | Next Part: 84279900 *Qty: 1 LH FRONT FLANK SUBSTRUCTURE Call
Location: 46 Prev | Next Part: 84280700 *Qty: 1 RH OUTER PILLAR CONNECTOR PROFILE Call
Location: 46 Prev | Next Part: 84280800 *Qty: 1 LH OUTER PILLAR CONNECTOR PROFILE Call
Location: 47 Prev | Next Part: 84948700 *Qty: 1 FRONT FASTENER BRACKET FOR RH HEADLIGHT Call
Location: 48 Prev | Next Part: 84948800 *Qty: 1 FRONT FASTENER BRACKET FOR LH HEADLIGHT Call
Location: 49 Prev | Next Part: 84952500 *Qty: 2 LOWER MOUNTING BRACKET FOR FRONT BUMPER -Supplied with headlamp trellis, ref. 6 and 7- -Applicable until depletion- Call
Location: 50 Prev | Next Part: 84634800 *Qty: 1 RH LOWER LATERAL PROFILE Call
Location: 50 Prev | Next Part: 84634900 *Qty: 1 LH LOWER LATERAL PROFILE Call
Location: 51 Prev | Next Part: 84948900 *Qty: 2 OUTER LATERAL FASTENER BRACKET FOR HEADLIGHT Call
Location: 52 Prev | Next Part: 84220500 *Qty: 1 RH REAR WHEELHOUSE Call
Location: 52 Prev | Next Part: 84220600 *Qty: 1 LH REAR WHEELHOUSE Call
Location: 53 Prev | Next Part: 84960700 *Qty: 1 FENDER MOUNTING BRACKET ON RH FRONT TRELLIS Call
Location: 54 Prev | Next Part: 84960800 *Qty: 1 FENDER MOUNTING BRACKET ON LH FRONT TRELLIS Call
Location: 55 Prev | Next Part: 84352300 *Qty: 1 RH LID BRACKET MOUNTING BRACKET Call
Location: 56 Prev | Next Part: 84352400 *Qty: 1 LH LID BRACKET MOUNTING BRACKET Call
Location: 57 Prev | Next Part: 275640 *Qty: 1 WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET -Not for GD- Call
Location: 57 Prev | Next Part: 84859400 *Qty: 1 WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET -Applicable for GD- -Applicable until depletion- Call
Location: 57 Prev | Next Part: 85538000 *Qty: 1 WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET -Applicable for GD- -Applicable after depletion of 84859400- Call
Location: 58 Prev | Next Part: 277276 *Qty: 1 REAR WINDSCREEN WIPER MOUNTING BRACKET -Not for GD- Call
Location: 58 Prev | Next Part: 84859600 *Qty: 1 REAR WINDSCREEN WIPER MOUNTING BRACKET -Applicable for GD- Call
Location: 59 Prev | Next Part: 84949700 *Qty: 1 INNER LATERAL FASTENER BRACKET FOR RH HEADLIGHT Call
Location: 60 Prev | Next Part: 84949800 *Qty: 1 INNER LATERAL FASTENER BRACKET FOR LH HEADLIGHT Call
Location: 61 Prev | Next Part: 84398800 *Qty: 1 UPPER FASTENER BRACKET FOR RH HEADLIGHT Call
Location: 62 Prev | Next Part: 84398900 *Qty: 1 UPPER FASTENER BRACKET FOR LH HEADLIGHT Call
Location: 63 Prev | Next Part: 84642700 *Qty: 1 RH LATERAL SUBSTRUCTURE Call
Location: 64 Prev | Next Part: 85091400 *Qty: 2 BRACKET Call
Location: 65 Prev | Next Part: 287660 *Qty: 1 LH HOOK FASTENER BRACKET Call
Location: 66 Prev | Next Part: 287670 *Qty: 1 RH HOOK FASTENER BRACKET Call

* Quantity shown indicates the number of pieces used in the diagram.
