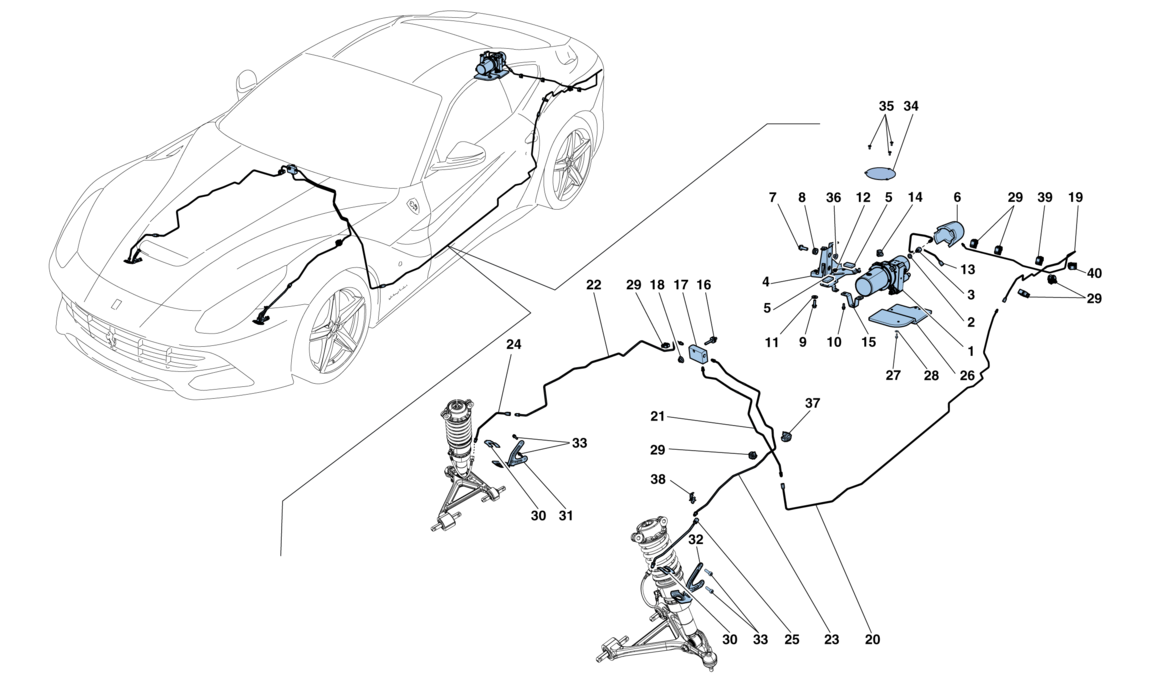

VEHICLE LIFT SYSTEM

Go to Split View

VEHICLE LIFT SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 284736 *Qty: 1 ELECTRIC PUMP $4,287.78
Location: 2 Prev | Next Part: 256502 *Qty: 1 GASKET $1.01
Location: 3 Prev | Next Part: 254931 *Qty: 1 ADAPTER SOCKET Call
Location: 4 Prev | Next Part: 285289 *Qty: 1 PUMP MOUNTING BRACKET Call
Location: 5 Prev | Next Part: 264740 *Qty: 2 PLUG -40 x 24 mm- $1.01
Location: 6 Prev | Next Part: 285319 *Qty: 1 INSULATION Call
Location: 7 Prev | Next Part: 255049 *Qty: 2 SCREW -M10 X 1.5 X 32- -No longer supplied- -Replaced by 304224- $20.13
Location: 7 Prev | Next Part: 304224 *Qty: 2 SCREW Call
Location: 8 Prev | Next Part: 255047 *Qty: 2 GROMMET $4.82
Location: 9 Prev | Next Part: 210246 *Qty: 2 SCREW -M8 X 25- $1.67
Location: 10 Prev | Next Part: 231617 *Qty: 2 SCREW -M6 X 18- $0.90
Location: 11 Prev | Next Part: 13578305 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 14039614 *Qty: 2 NUT $0.90
Location: 13 Prev | Next Part: 285265 *Qty: 1 PIPE FROM PUMP Call
Location: 14 Prev | Next Part: 256962 *Qty: 1 CLIP -D. 4.7 X 1- $0.90
Location: 15 Prev | Next Part: 285314 *Qty: 1 BRACKET Call
Location: 16 Prev | Next Part: 258770 *Qty: 1 CYLINDRICAL BUSHING Call
Location: 17 Prev | Next Part: 260257 *Qty: 1 DISTRIBUTOR BLOCK $97.69
Location: 18 Prev | Next Part: 14039614 *Qty: 1 NUT $0.90
Location: 19 Prev | Next Part: 284507 *Qty: 1 LIFT SYSTEM PIPE, REAR SECTION Call
Location: 20 Prev | Next Part: 284715 *Qty: 1 UNDERFLOOR LIFT SYSTEM PIPE -No longer supplied- -Replaced by 289483- Call
Location: 20 Prev | Next Part: 289483 *Qty: 1 UNDERBODY LIFT SYSTEM PIPE Call
Location: 21 Prev | Next Part: 284713 *Qty: 1 PIPE FROM FRONT SECTION TO BLOCK -Not for GD- -No longer supplied- -Replaced by 291417- Call
Location: 21 Prev | Next Part: 291417 *Qty: 1 PIPE FROM FRONT SECTION TO BLOCK -Not for GD- Call
Location: 21 Prev | Next Part: 284713 *Qty: 1 PIPE FROM FRONT SECTION TO BLOCK -Applicable for GD- Call
Location: 22 Prev | Next Part: 275451 *Qty: 1 PIPE FROM BLOCK TO RH FRONT WHEEL SECTION -Not for GD- Call
Location: 22 Prev | Next Part: 289085 *Qty: 1 PIPE FROM BLOCK TO RH FRONT WHEEL SECTION -Applicable for GD- Call
Location: 23 Prev | Next Part: 282810 *Qty: 1 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION -Not for GD- -No longer supplied- -Replaced by 291418- Call
Location: 23 Prev | Next Part: 291418 *Qty: 1 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION -Not for GD- $121.91
Location: 23 Prev | Next Part: 282810 *Qty: 1 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION -Applicable for GD- Call
Location: 24 Prev | Next Part: 275450 *Qty: 1 PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE $66.63
Location: 25 Prev | Next Part: 289025 *Qty: 1 PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE $62.65
Location: 26 Prev | Next Part: 84702600 *Qty: 1 HEAT SHIELD -No longer supplied- -Replaced by 292748- Call
Location: 26 Prev | Next Part: 292748 *Qty: 1 HEAT SHIELD Call
Location: 27 Prev | Next Part: 256323 *Qty: 3 SCREW -M5 X 16- $0.90
Location: 28 Prev | Next Part: 13577701 *Qty: 3 WASHER $0.90
Location: 29 Prev | Next Part: 234284 *Qty: 6 CLIP -1 compartment- $0.90
Location: 30 Prev | Next Part: 116374 *Qty: 2 CLIP $2.96
Location: 31 Prev | Next Part: 271902 *Qty: 1 FRONT RH BRACKET $35.59
Location: 32 Prev | Next Part: 271901 *Qty: 1 FRONT LH BRACKET $35.59
Location: 33 Prev | Next Part: 256323 *Qty: 4 SCREW -M5 X 16- $0.90
Location: 34 Prev | Next Part: 272640 *Qty: 1 LIFT SYSTEM INSPECTION COVER $46.99
Location: 35 Prev | Next Part: 65366700 *Qty: 3 SCREW -M5 X 12- $1.26
Location: 36 Prev | Next Part: 255048 *Qty: 2 GROMMET SHIM Call
Location: 37 Prev | Next Part: 234285 *Qty: 1 CLIP -2 compartments- $0.92
Location: 38 Prev | Next Part: 291408 *Qty: 1 CLIP Call
Location: 39 Prev | Next Part: 294205 *Qty: 1 CLIP -1 compartment- Call
Location: 40 Prev | Next Part: 294206 *Qty: 1 CLIP -2 compartments- Call

* Quantity shown indicates the number of pieces used in the diagram.
