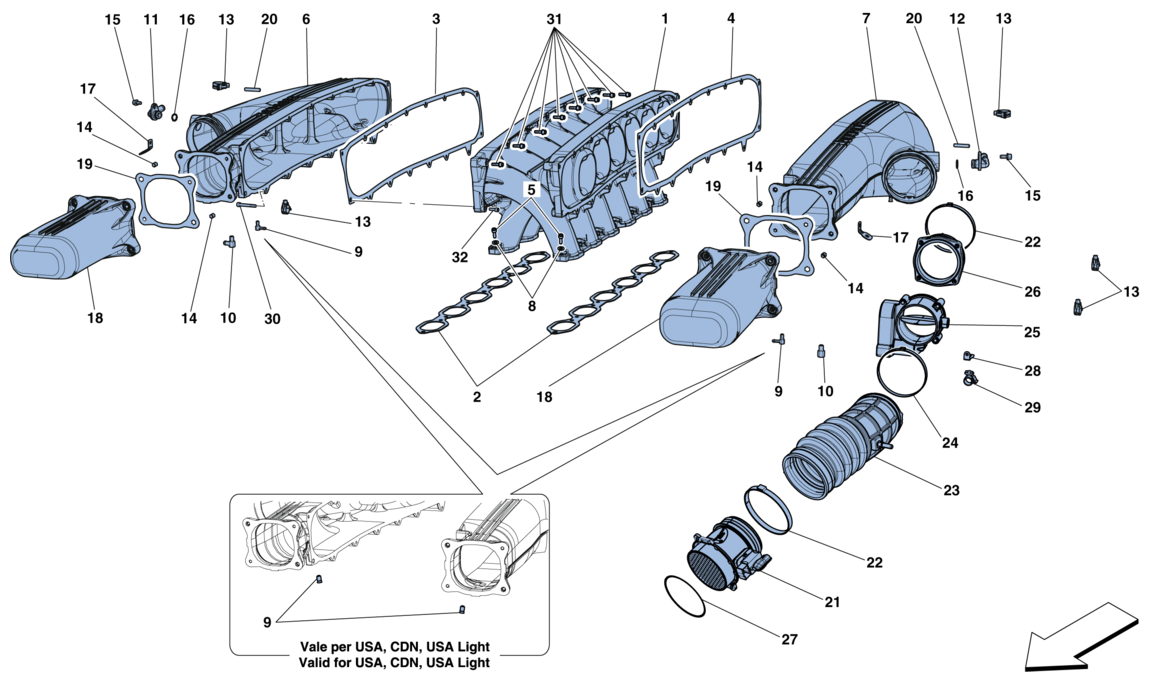

INTAKE MANIFOLD

Go to Split View

INTAKE MANIFOLD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 288311 *Qty: 1 INTAKE MANIFOLD Call
Location: 2 Prev | Next Part: 289568 *Qty: 2 GASKET $20.94
Location: 3 Prev | Next Part: 279987 *Qty: 1 RH SEAL $135.30
Location: 4 Prev | Next Part: 279988 *Qty: 1 LH SEAL $135.30
Location: 5 Prev | Next Part: 14305574 *Qty: 24 SCREW -M6 X 30- Call
Location: 6 Prev | Next Part: 288308 *Qty: 1 RH INTAKE PLENUM Call
Location: 7 Prev | Next Part: 288310 *Qty: 1 LH INTAKE PLENUM Call
Location: 8 Prev | Next Part: 11197774 *Qty: 24 WASHER Superseded
Location: 9 Prev | Next Part: 128016 *Qty: 2 CONNECTOR -Not for USA, CDN, USA LIGHT- $13.47
Location: 9 Prev | Next Part: 219786 *Qty: 2 THREADED PLUG -Applicable for USA, CDN, USA LIGHT- $20.08
Location: 10 Prev | Next Part: 174818 *Qty: 2 CONNECTOR $16.78
Location: 11 Prev | Next Part: 243208 *Qty: 1 CONNECTOR -On RH plenum- $25.64
Location: 12 Prev | Next Part: 243207 *Qty: 1 CONNECTOR -On LH plenum- $21.36
Location: 13 Prev | Next Part: 222072 *Qty: 3 CLIP $4.40
Location: 13 Prev | Next Part: 198253 *Qty: 2 CLIP $4.75
Location: 14 Prev | Next Part: 102725 *Qty: 4 ALIGNMENT DOWEL $0.90
Location: 15 Prev | Next Part: 231616 *Qty: 2 SCREW -M6 X 14- $0.90
Location: 16 Prev | Next Part: 123475 *Qty: 2 GASKET $4.63
Location: 17 Prev | Next Part: 262736 *Qty: 2 BRACKET Call
Location: 18 Prev | Next Part: 288126 *Qty: 2 RESONATOR BODY Call
Location: 19 Prev | Next Part: 288315 *Qty: 2 GASKET $12.11
Location: 20 Prev | Next Part: 11500424 *Qty: 2 STUD BOLT $0.90
Location: 21 Prev | Next Part: 245028 *Qty: 2 AIR FLOW METER $394.26
Location: 22 Prev | Next Part: 190151 *Qty: 4 RING CLAMP $3.48
Location: 23 Prev | Next Part: 283689 *Qty: 1 LH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY -Not for USA, CDN, USA LIGHT- Call
Location: 23 Prev | Next Part: 282239 *Qty: 1 LH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY -Applicable for USA, CDN, USA LIGHT- $199.37
Location: 23 Prev | Next Part: 283688 *Qty: 1 RH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY -Not for USA, CDN, USA LIGHT- Call
Location: 23 Prev | Next Part: 282238 *Qty: 1 RH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY -Applicable for USA, CDN, USA LIGHT- $199.37
Location: 24 Prev | Next Part: 180046 *Qty: 2 RING CLAMP $2.30
Location: 25 Prev | Next Part: 179912 *Qty: 2 THROTTLE BODY $1,099.47
Location: 26 Prev | Next Part: 240262 *Qty: 2 SHIM $111.62
Location: 27 Prev | Next Part: 270053 *Qty: 2 GASKET $3.50
Location: 28 Prev | Next Part: 179243 *Qty: 1 PLATE -LH side- $4.71
Location: 28 Prev | Next Part: 268987 *Qty: 1 PLATE -RH side- Call
Location: 29 Prev | Next Part: 178430 *Qty: 2 CLIP $0.90
Location: 30 Prev | Next Part: 231626 *Qty: 14 SCREW -M6 X 70- $1.08
Location: 31 Prev | Next Part: 231624 *Qty: 16 SCREW -M6 X 45- $0.90
Location: 32 Prev | Next Part: 231622 *Qty: 2 SCREW -M6 X 35- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
