BATTERY

Go to Split View

BATTERY

in cart

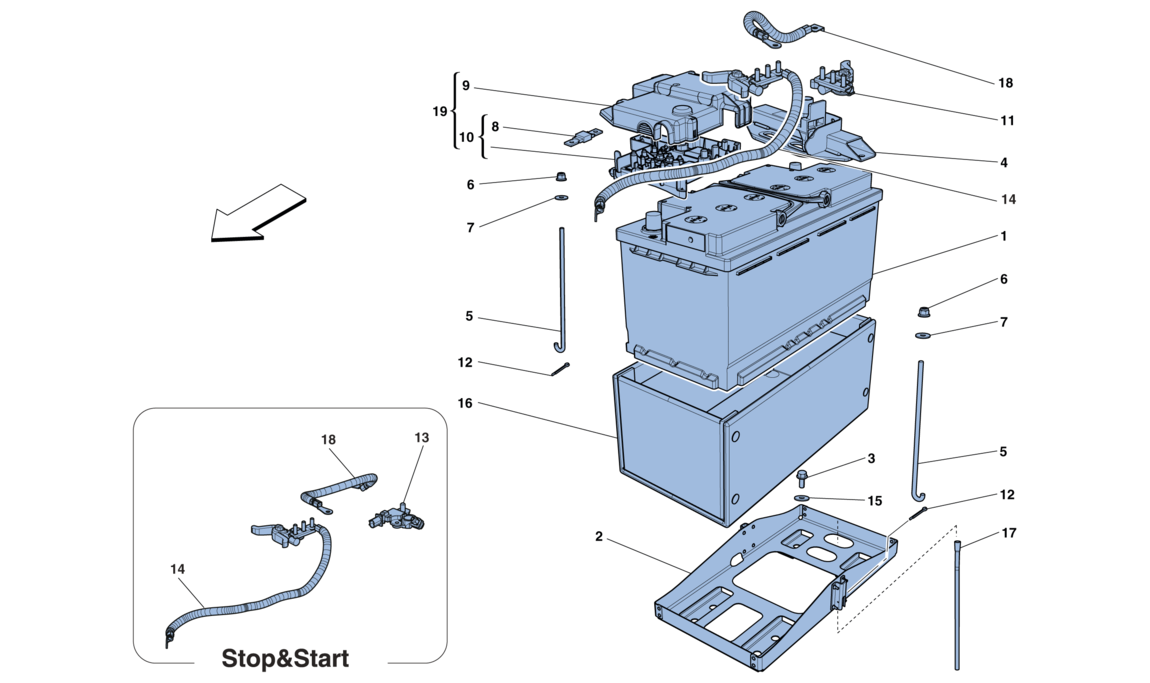

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 256381 *Qty: 1 BATTERY -95 Ah- -Not for Brazil- -Applicable until depletion- Call
Location: 1 Prev | Next Part: 312187 *Qty: 1 BATTERY -95 Ah- -Applicable from start of production for Brazil- -Applicable after depletion of 256381- Call
Location: 2 Prev | Next Part: 272263 *Qty: 1 BATTERY MOUNTING $355.02
Location: 3 Prev | Next Part: 16287024 *Qty: 3 SCREW -M8 X 16- $0.90
Location: 3 Prev | Next Part: 16044321 *Qty: 1 SCREW -M8 X 55- $0.90
Location: 4 Prev | Next Part: 272464 *Qty: 1 BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL $213.61
Location: 5 Prev | Next Part: 245743 *Qty: 2 TIE-ROD -No longer supplied- -Replaced by 292882- $16.84
Location: 5 Prev | Next Part: 292882 *Qty: 2 TIE-ROD Call
Location: 6 Prev | Next Part: 228265 *Qty: 2 NUT $0.90
Location: 7 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 8 Prev | Next Part: 278366 *Qty: 1 FUSE VALVE $13.21
Location: 9 Prev | Next Part: 251161 *Qty: 1 COVER -After depletion order compl. ref. 19- -Not for GD- -Applicable until depletion- $40.62
Location: 9 Prev | Next Part: 294977 *Qty: 1 COVER -After depletion order compl. ref. 19- -Applicable for GD- -Applicable until depletion- Call
Location: 10 Prev | Next Part: 291682 *Qty: 1 BATTERY ECU -After depletion order compl. ref. 19- -Applicable until depletion- $555.31
Location: 11 Prev | Next Part: 11163594 *Qty: 1 BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER -Not for Stop&Start- $42.71
Location: 12 Prev | Next Part: 10795206 *Qty: 2 SPLIT PIN $0.90
Location: 13 Prev | Next Part: 274661 *Qty: 1 BATTERY SENSOR -Applicable for Stop&Start- Call
Location: 14 Prev | Next Part: 292866 *Qty: 1 BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY -Not for GD- $99.41
Location: 14 Prev | Next Part: 298621 *Qty: 1 BATTERY GROUND CABLE/TERMINAL CLAMP ASSEMBLY -Applicable for GD- Call
Location: 15 Prev | Next Part: 12646778 *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: 251793 *Qty: 1 HEAT SHIELD Call
Location: 17 Prev | Next Part: 257167 *Qty: 1 VAPOUR BREATHER PIPE -L. 400 mm- Call
Location: 18 Prev | Next Part: 273388 *Qty: 1 BATTERY GROUND CABLE -Not for Stop&Start- Call
Location: 18 Prev | Next Part: 278419 *Qty: 1 GROUND CABLE FROM SENSOR TO FALSE POLE -Applicable for Stop&Start- Call
Location: 19 Prev | Next Part: 291683 *Qty: 1 COMPL. BATTERY ECU -Not for GD- $135.30
Location: 19 Prev | Next Part: 294976 *Qty: 1 COMPL. BATTERY ECU -Applicable for GD- Call

* Quantity shown indicates the number of pieces used in the diagram.
